Product Description

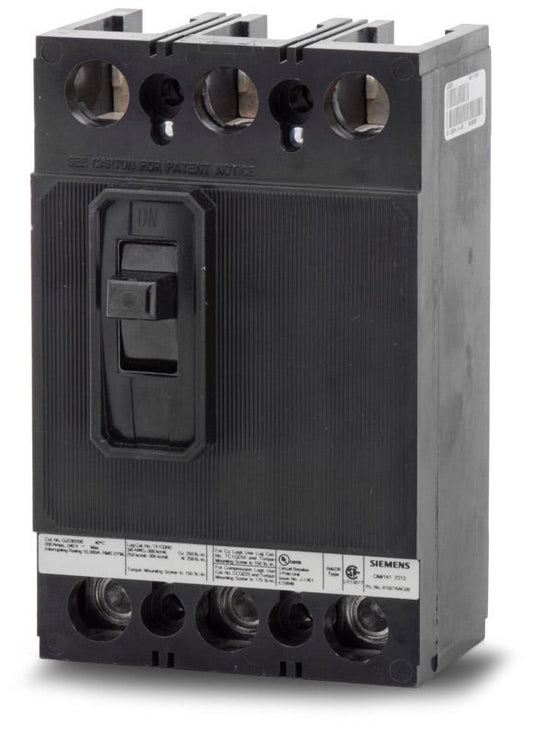

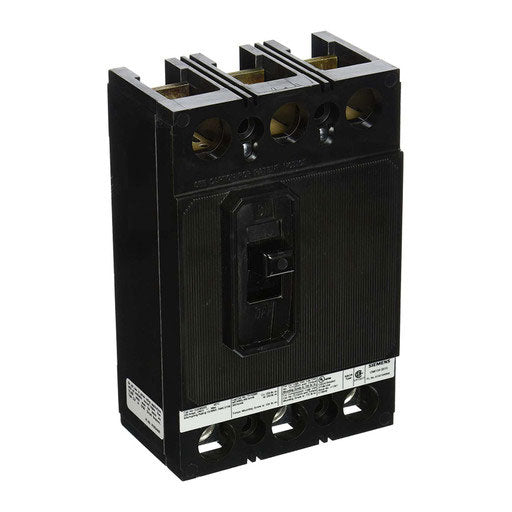

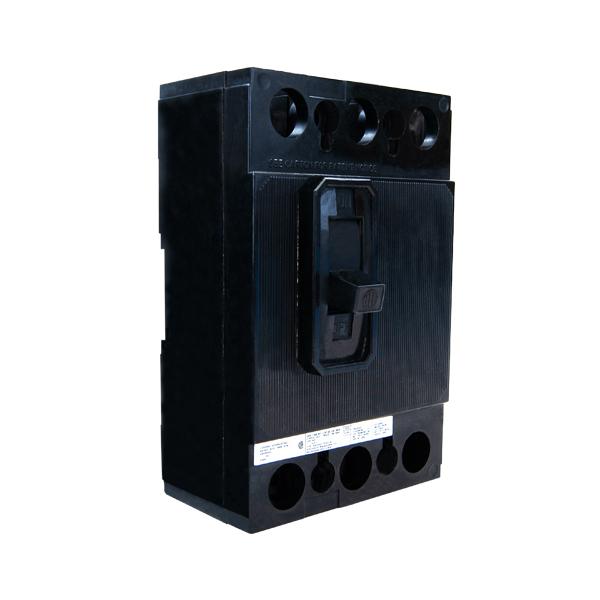

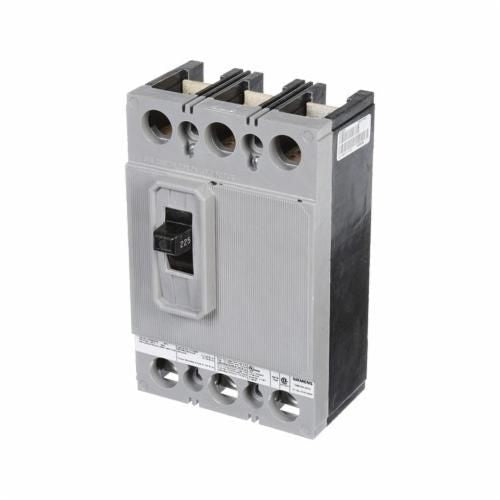

The SIEMENS QJ23B225H is designed for protection of branch and feeder circuits in industrial or commercial applications from 70A to 225A at 240VAC. Due to the high continuous ampere and interrupting ratings, and compact size, these circuit breakers are suited for use as mains in load centers, lighting panel boards, and metering centers. They are also ideal for installation in distribution panel boards, control panels, motor control centers, and individual enclosures.
- UL Listed
- 42,000A IR
- Type QJ2
Product Highlights
The SIEMENS QJ23B225H circuit breaker provides reliable circuit protection in a compact size. It is suitable for various applications, including mains, distribution panels, and control centers.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: QJ23B225H
-
Country of Origin: Canada
Technical Specifications
-
Brand: SIEMENS
-
MPN: QJ23B225H
-
Manufacturer: Siemens
-
Model / MPN: QJ23B225H
-
Product Type: CIRCUIT_BREAKER
-
Trip Type: Thermal/Magnetic
-
GTIN: 00783643194014
-
Phase: 3
-
Frequency Rating: 50/60 Hz
-
Connection Type: Load Lug
-
Amperage Rating: 225 A
-
Interrupt Rating: 42 kA
-
ActuatorType: Toggle
-
Number Of Poles: 3
-
Frame: QJ2H/225A
-
Type: QJ2H
-
Voltage Rating: 240 VAC
-
Enclosure Type: NEMA 1/3R
-
Wire Size: 6 AWG to 300 kcmil, 4 AWG to 300 kcmil
-
Temperature Rating: 40 deg C
-
UPC: 783643194014
-
Standard & Approvals: HACR Rated
-
Application: General Applications
-
Current Rating: 225 Amps
-
Circuit Breaker Type: Standard
-
Mounting Type: Panel Mount
-
Voltage: 240 Volts
-
UL Listed: Yes
-
AIC Ratings: 42kA@240V
-
Mounting Style: Bolt-On
-
Protection: Thermal Magnetic
-
Trip Functions: LI - Long-Time and Instantaneous
