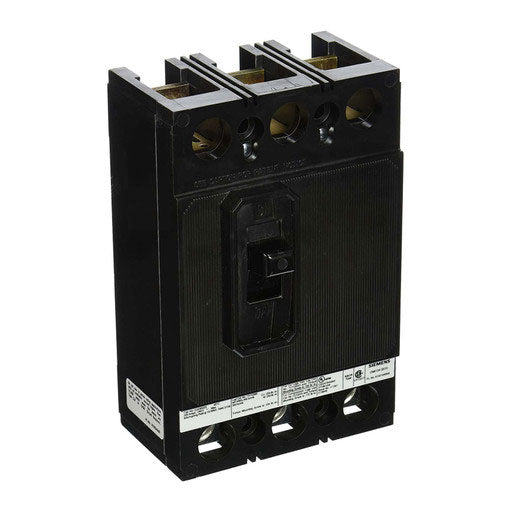

Siemens QJ23B200H Molded Case Circuit Breaker 200A

Product Description

The SIEMENS QJ23B200H is a molded case circuit breaker designed for use on P1/P2/P3/P4/P5 panelboards. This thermal magnetic, 3-pole breaker is rated at 200A and 240V, with an interrupting rating of 42kA at 240 VAC. It features load lug terminals and is HACR rated. It provides LI - Long-Time and Instantaneous trip functions.

• HACR Rated
• Bolt On
• 200 Amp

Product Highlights

Molded case circuit breaker with thermal and fixed magnetic trip. Suitable for panelboard applications requiring 200A protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QJ23B200H

Technical Specifications

• Approval: UL 489, CSA C22.2
• Interrupting Rating: 42 Kiloampere at 240 VAC (UL)
• Manufacturer Name: Siemens
• Number Of Poles: 3
• Product UPC: 783643194007
• Terminal Type: Load Lug
• Type: Molded Case, Thermal and Fixed Magnetic
• Used On: P1/P2/P3/P4/P5 Panelboard
• Wire Size: 6 AWG to 300 KCMIL (Copper), 4 AWG to 300 KCMIL (Aluminum)
• Part Number: QJ23B200H
• Manufacturer: Siemens / ITE
• Family: QJ Frame
• Amp: 200
• Volt: 240
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Bolt-On
• AIC Ratings: 42kA@240V
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
