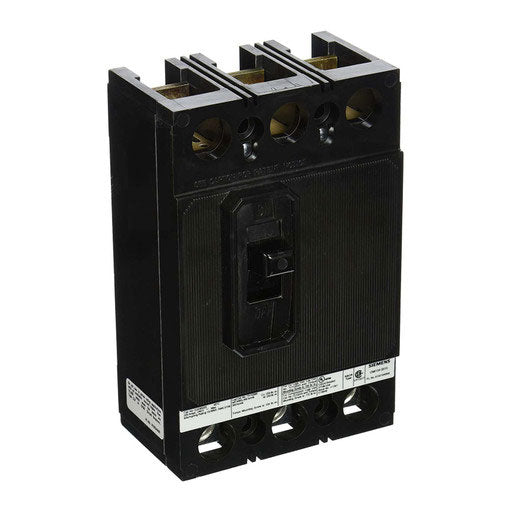

Siemens QJ23B100 Circuit Breaker 100 Amp

Product Description

The SIEMENS QJ23B100 is designed for branch circuit and feeder protection in industrial or commercial applications. Suitable for use as mains in load centers, lighting panel boards, and metering centers. Ideal for installation in distribution panels, control panels, motor control centers, and individual enclosures.

• UL Listed
• IR 10,000 A
• Type QJ2

Product Highlights

Siemens QJ23B100 circuit breakers are designed for industrial and commercial applications. They are suitable for use in various panels and enclosures.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QJ23B100

Technical Specifications

• Current Rating: 100 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Number of Poles: 3
• Voltage: 240 Volts
• Amperage: 100 Amp
• Series: QJ Series
• Interrupting Rating at 240 Volts AC: 10,000
• Part Number: QJ23B100
• Manufacturer: Siemens / ITE
• Family: QJ Frame
• Pole: 3
• Amp: 100
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Bolt-On
• Type: QJ2
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@240V
• Frame Type: QJ
• Amps: 100A
• UPC: 783643201071
