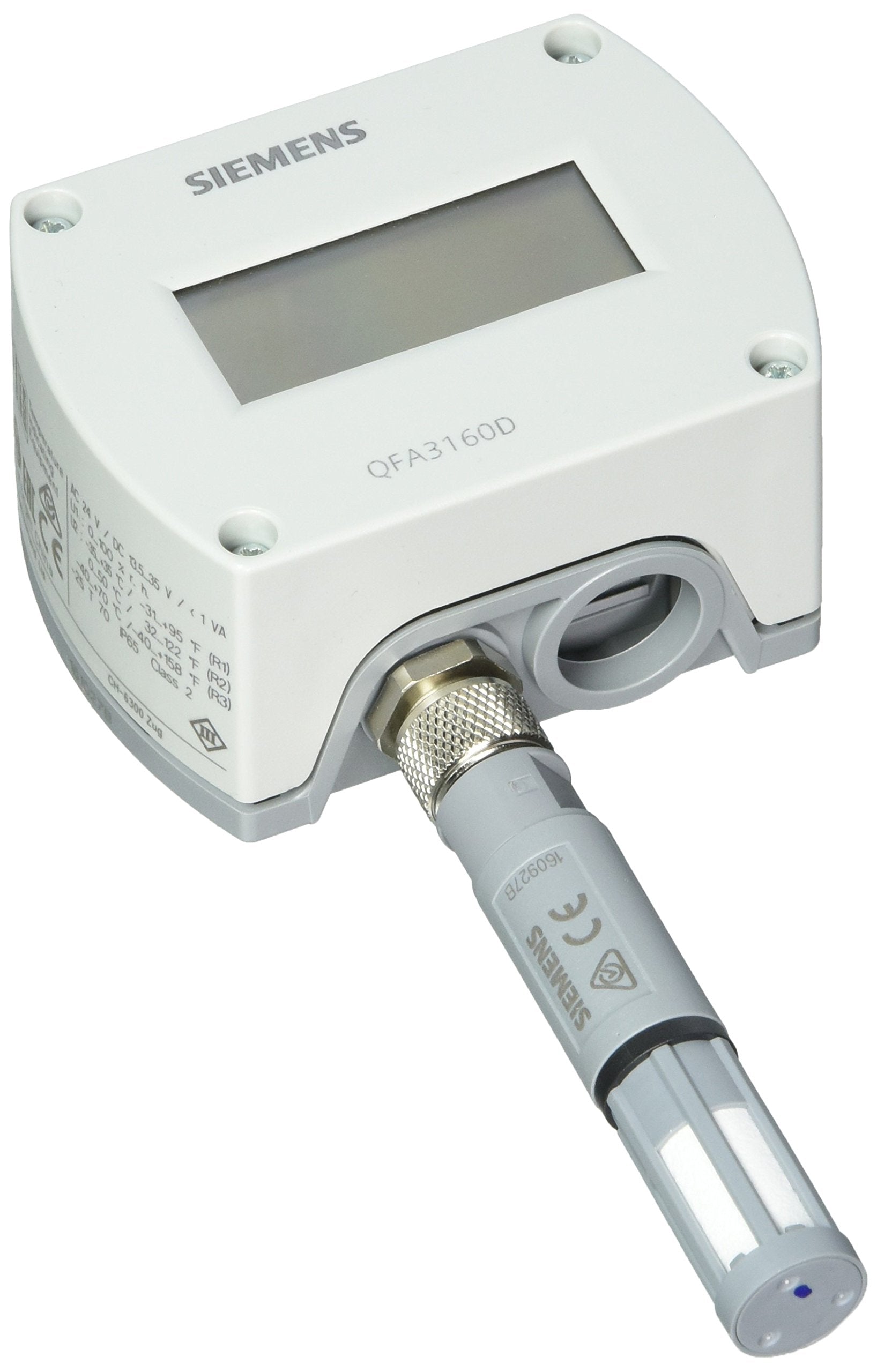

Siemens QFA3160D Humidity & Temperature Sensor 24 VAC/VDC (Room)

Product Description

Siemens QFA3160D is a room humidity and temperature sensor that monitors relative humidity and temperature and transmits measurements to building control systems. The unit provides 4 to 20 mA or 0 to 10 V DC outputs, supports combination humidity/temperature sensing with a D-suffix LCD option, and offers ±2% humidity accuracy with a 0 to 100% humidity range. It is powered by 24 VAC/VDC and mounts to a room or wall for HVAC and economizer control applications.

• Output signals: 4 to 20 mA or 0 to 10 V DC for humidity; temperature output available as 0 to 10 V DC
• Humidity accuracy ±2% with 0 to 100% relative humidity range; D-suffix models include an integrated LCD
• Power: 24 VAC/VDC; plastic box enclosure for room/wall mounting; supplied with installation instructions; no batteries required

Product Highlights

Room/wall humidity and temperature sensor with ±2% humidity accuracy and selectable analog outputs

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QFA3160D
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: QFA3160D
• Sensor Type: Room / Wall mount humidity and temperature sensor
• Output Signal: 4 to 20 mA or 0 to 10 V DC
• Temperature Output: 0 to 10 V DC
• Humidity Range: 0 to 100% RH
• Accuracy (Humidity): ±2%
• Power Requirements: 24 VAC/VDC
• Display: LCD (models with D suffix)
• Enclosure: Plastic box enclosure
• Mounting: Room or wall
• Weight: 177 g (6.2 oz)
• Dimensions: 3.88 x 2 x 6 inches
• Included Components: Sensor, installation instructions
• Batteries Required: No
• Country of Origin: China
