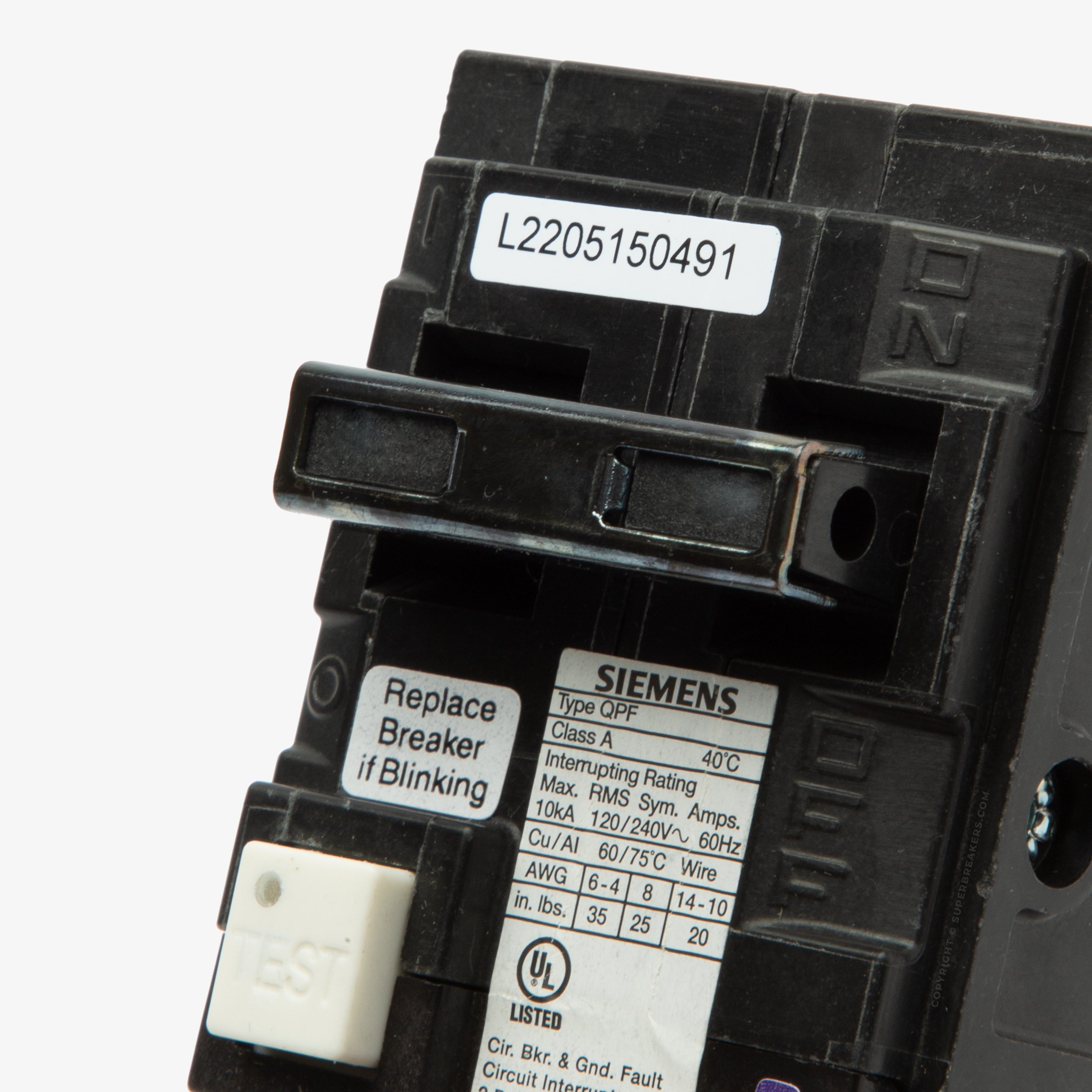

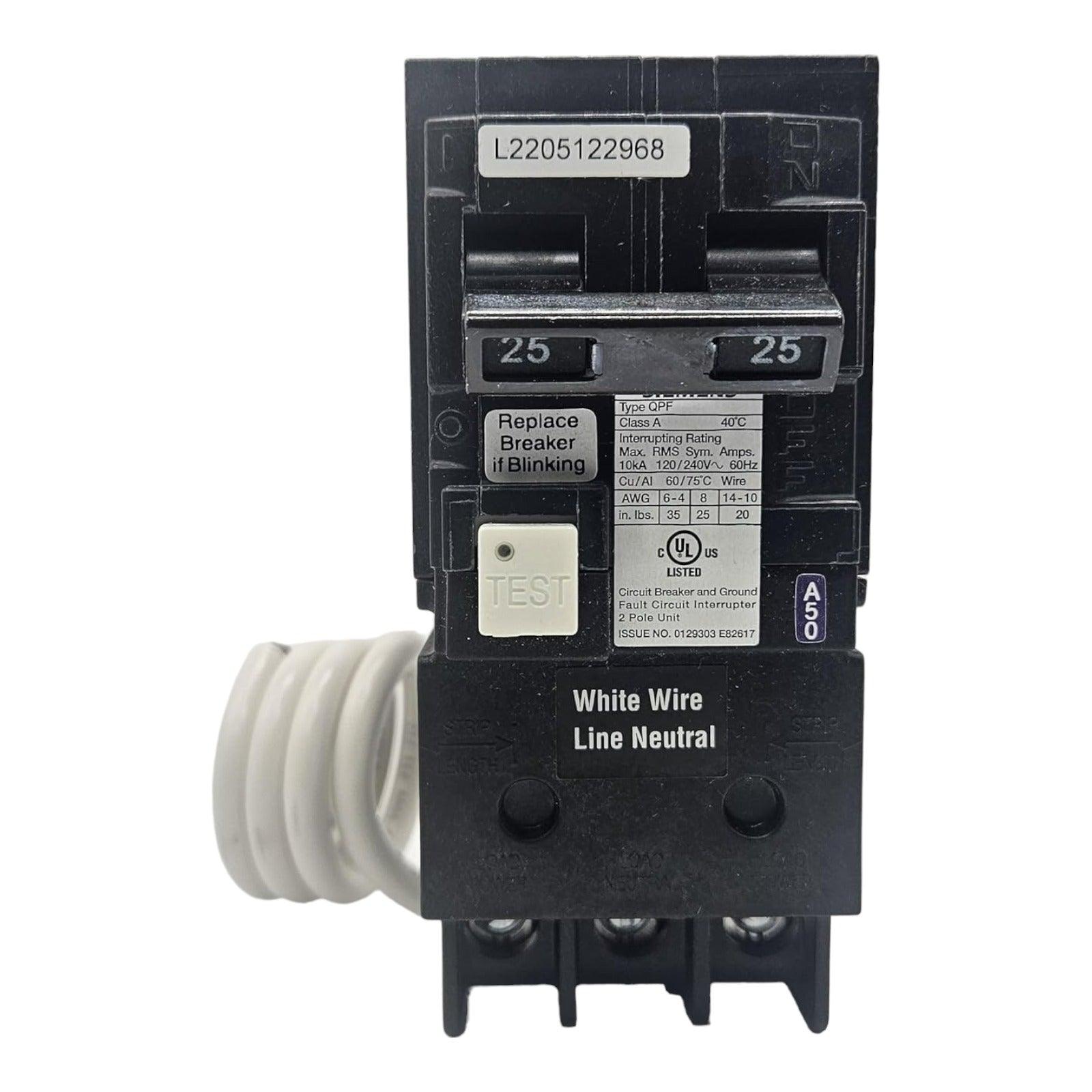

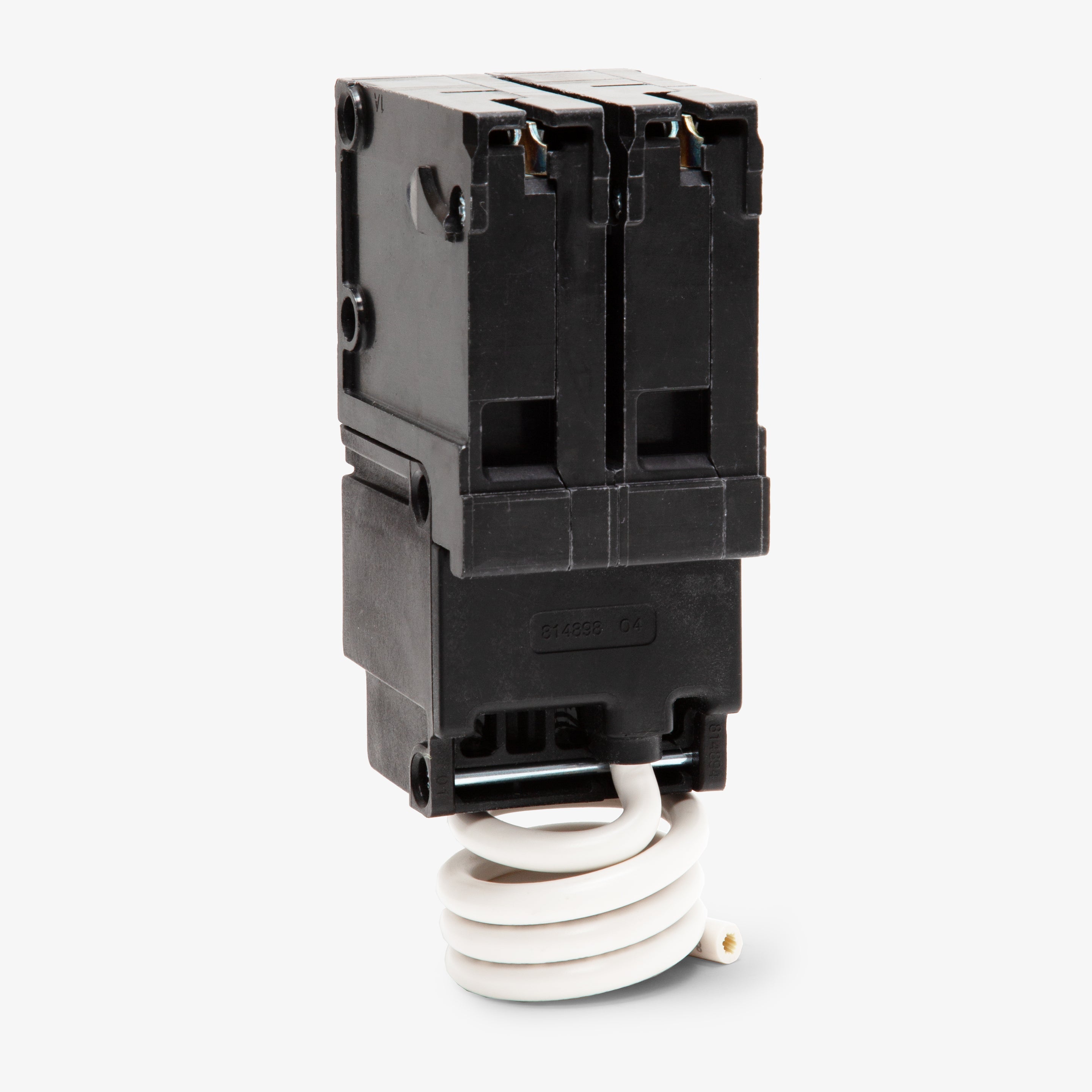

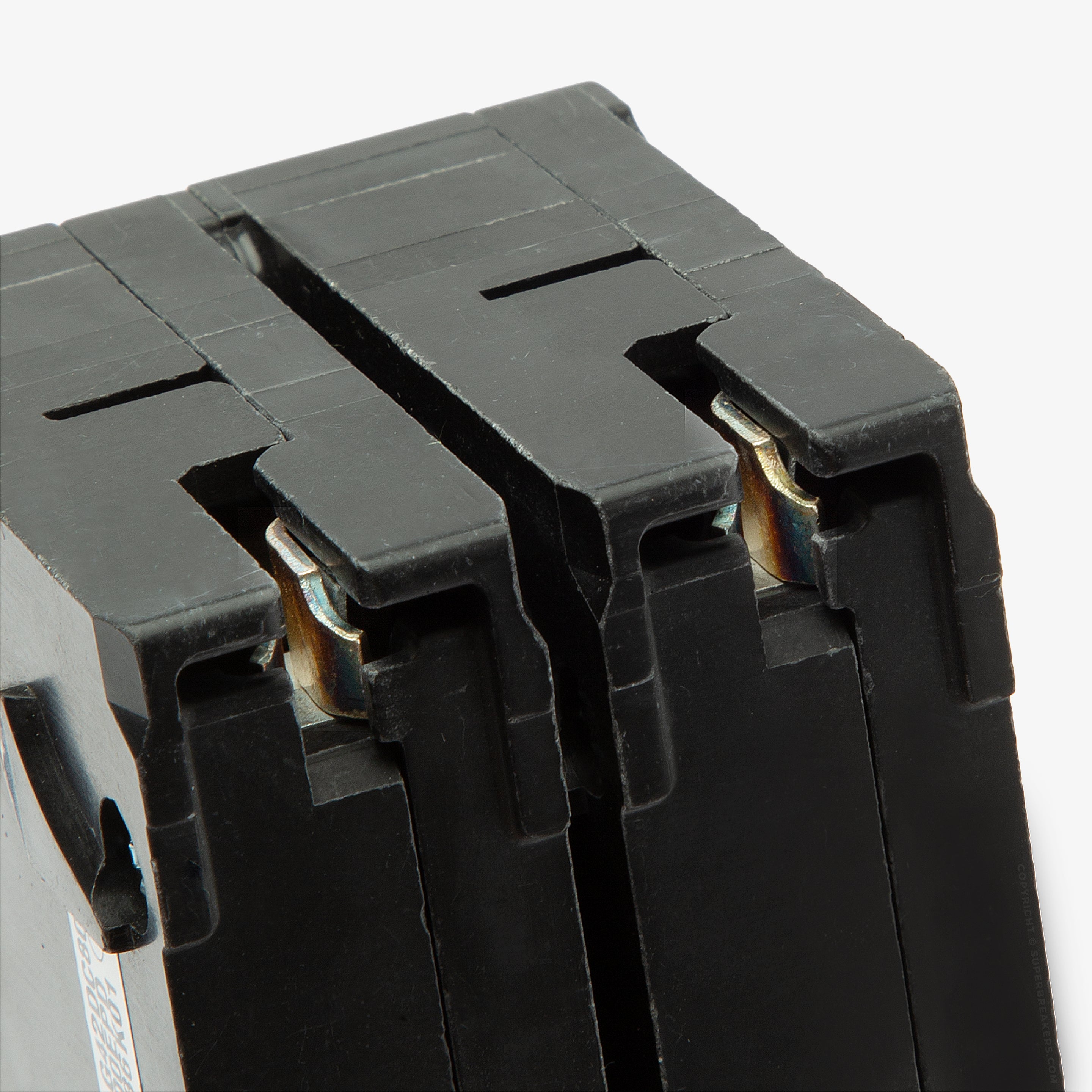

Siemens QF225A 2-Pole GFCI Breaker 25A (Plug-On) Q225GF

Product Description

Siemens QF225A is a 2-pole, 25 A ground-fault circuit interrupter (GFCI) breaker for 120/240 VAC systems. It provides 5 mA ground-fault trip sensitivity and a 10 kA interrupting rating, with plug-on mounting and a pigtail neutral for connection to load centers. The breaker uses thermal-magnetic trip technology with common trip construction and includes automated self-test and HACR and UL/CSA approvals for residential panel protection.

• Electrical ratings: 25 A, 120/240 VAC, 5 mA ground-fault trip sensitivity, 10 kA interrupting rating (10 kAIC).
• Mounting and connections: plug-on mounting for Siemens load centers with pigtail neutral and lug terminals; compatible with EQ, ES, and PL panels.
• Trip and construction: thermal-magnetic trip technology, common trip, automated self-test, HACR rated, UL and CSA standards listed.

Product Highlights

2-pole 25A GFCI breaker; 5 mA trip; 10 kAIC; plug-on with pigtail neutral

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QF225A

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: QF225A
• Product Name: 2-Pole GFCI Breaker
• Series: QF
• Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 2
• Phase: Single-phase (2-pole for 120/240 VAC)
• Current Rating: 25 A
• Input Voltage: 120/240 VAC
• Ground Fault Trip Sensitivity: 5 mA
• Interrupting Rating (AIC): 10 kA
• AIC Rating: 10 kA @ 120/240 VAC
• Mounting Type: Plug-On
• Neutral Connection: Pigtail neutral included
• Terminal Type: Lugs
• Trip Technology: Thermal-magnetic
• Trip Function: Thermal (long-time) and magnetic (instantaneous) with common trip, ground fault
• Trip Adjustability: Fixed
• Self-Test: Automated self-test
• HACR Rating: HACR rated
• For Use With: Siemens load centers (EQ, ES, PL)
• Wire Gauge (recommended): Copper: 12-8 AWG ; Aluminum: 12-8 AWG (see manufacturer documentation)
• Max Wire: 8 AWG
• Standards / Certifications: CSA C22.2 No. 144, UL 489, UL 943
• Certifications: CSA, UL
• Mounting Style: Plug-On
• Dimensions: 6.69 x 2.00 x 2.76 in
• Weight: 0.99 lbs
• Tightening Torque: 20 lb-in
• Catalog Number: QF225A
• Replacement MPN: US2:Q225GF
