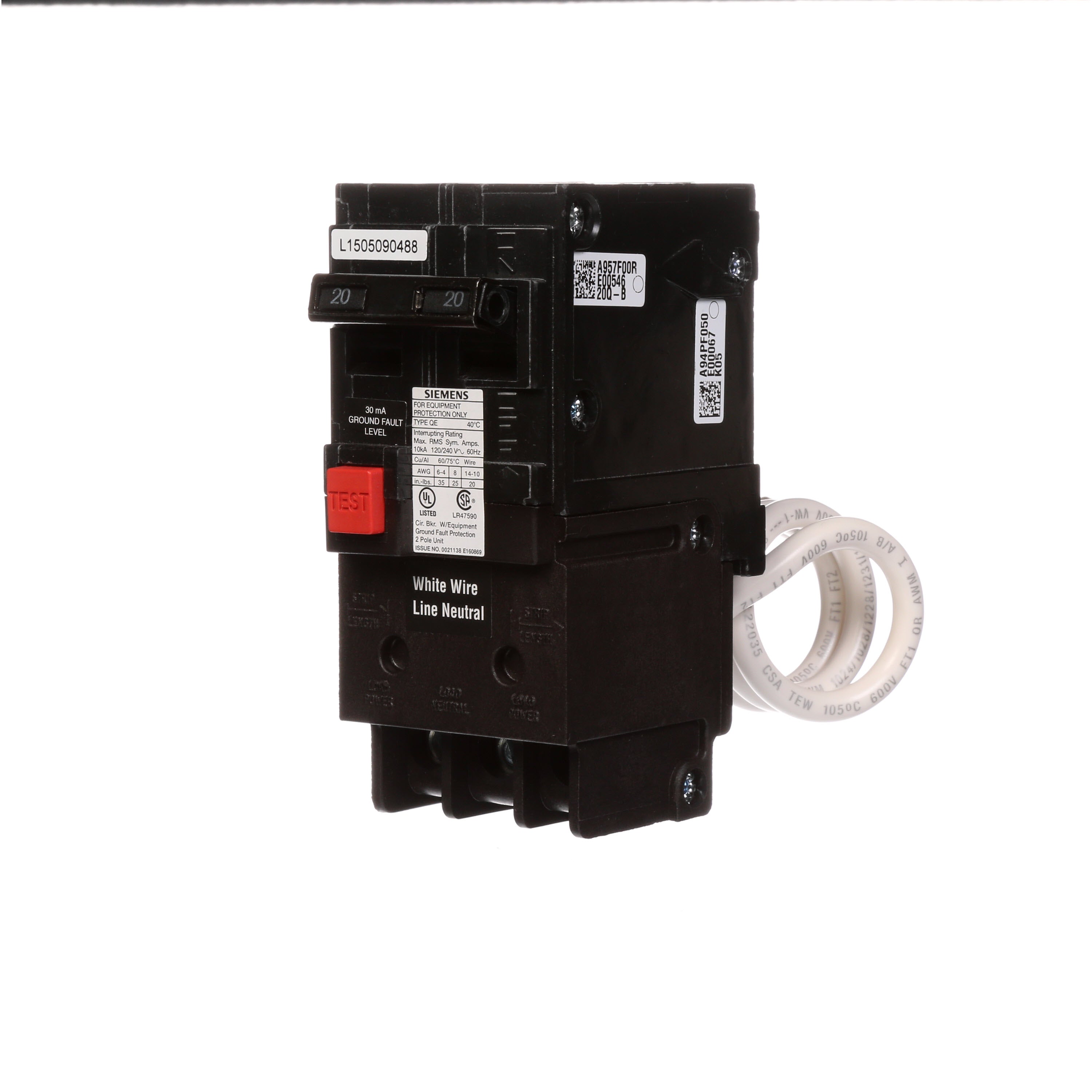

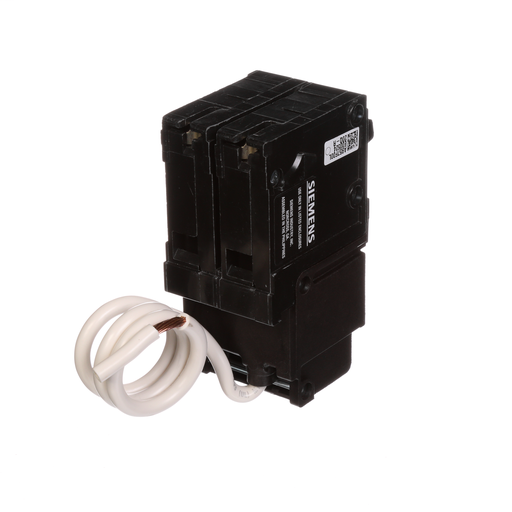

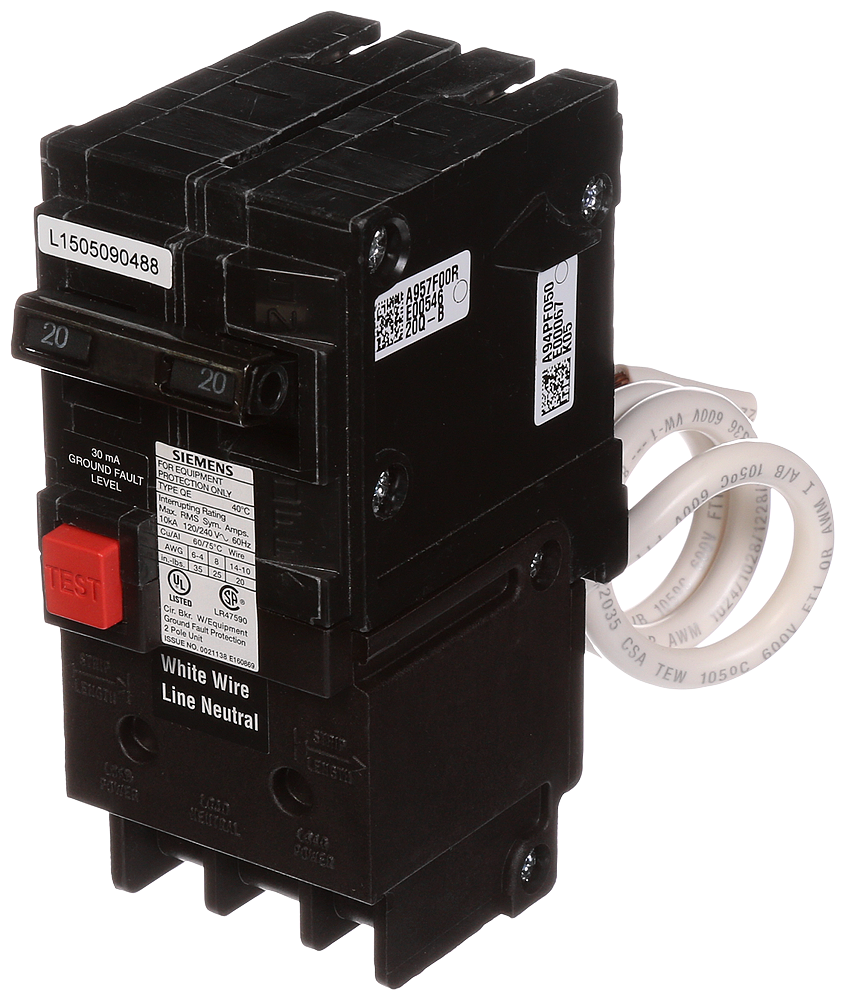

Siemens QE220 QE 2-pole 20 amp circuit breaker

Product Description

The Siemens QE220 is a 2-pole, 20 Amp miniature circuit breaker designed for electrical distribution and equipment protection. This breaker is rated for 120/240V and has an interrupt rating of 10kA. It features a thermal magnetic trip type and is suitable for plug-in connections in load centers.

• 10 kAIC interrupt rating
• Thermal Magnetic Trip
• Plug-in connection type

Product Highlights

Provides equipment protection from damaging line to ground fault currents. De-energizes the circuit for all ungrounded conductors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QE220
• Country of Origin: Philippines

Technical Specifications

• Amperage: 20 Amp
• Applications: Electrical Distribution
• Conductor Size: 12-8 AWG (AL)/14-10 AWG (CU)
• Connection Type: Plug-In
• Current Rating: 20 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 2 Pole
• Standard: CSA,UL
• Trip Type: Thermal Magnetic
• Voltage: 120/240 Volt
• Brand: Siemens
• Height: 2.8 Inch
• Length: 6.6 Inch
• Width: 3.400 in
• Voltage Rating: 120/240 VAC
• Phase: 1 pH
• Manufacturer: Siemens
• MPN: QE220
