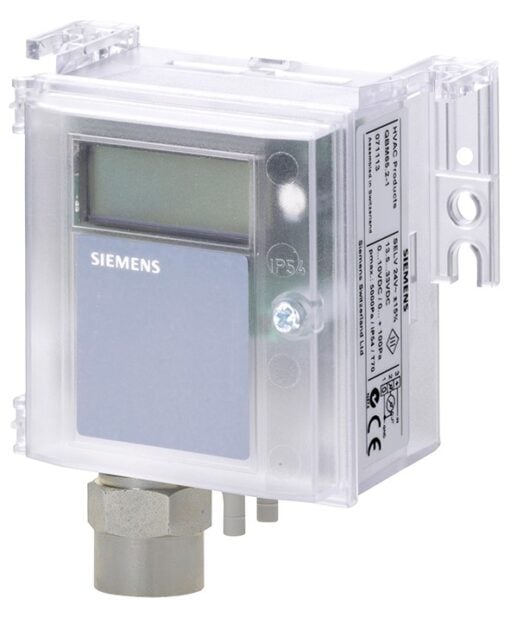

SIEMENS QBM3230U2D Air DP Sensor 0 to 2 Inches

Product Description

The SIEMENS QBM3230U2D is a differential air pressure sensor suitable for HVAC applications. It has a selectable measuring range from zero to two inches and offers output options including zero to ten volts, zero to five volts, and four to twenty milliamps. The built-in LCD display makes it easy to view readings.

• Differential air pressure sensor
• Designed for HVAC systems
• Selectable measuring range from zero to two inches

Product Highlights

This sensor is effective for measuring differential pressures in ventilation systems, checking air flow volumes, and monitoring filter conditions and fan controls.

Product Information

Standard Information

• Brand: SIEMENS
• MPN: QBM3230U2D

Technical Specifications

• Connection, electrical: Screw terminals
• Dimensions (W x H x D): 3.25 x 2.95 x 1.93 inches
• Pressure connection: 0.25 inches Plastic Tubing
• Operating voltage: 13.5 to 33 VDC
• Analog outputs: 0-10V / 0-5V / 4-20mA (2 Wire)
• Measuring range: 0 to 2 inches, Adjustable
• Display: LCD
• Response time: Less than 20 ms
• Medium temperature: 0 to 70 °C
• Measuring range, pressure: 0 to 500 Pa, 0 to 300 Pa, 0 to 100 Pa
