Siemens QAM2012.045 Temperature sensor duct single point 22 in QAM2012.045

Product Description

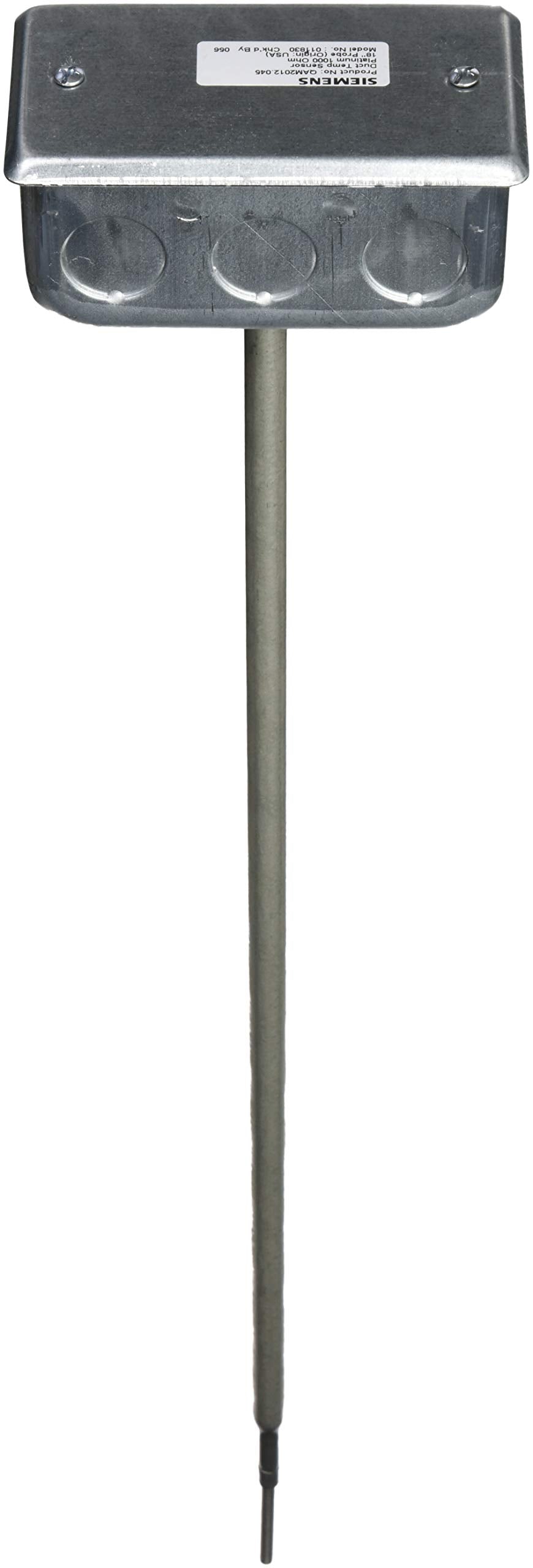

Siemens QAM2012.045 is a single-point duct temperature sensor for HVAC control applications that provides a resistance output via a 1000 ohm (1K) platinum RTD element. The sensor is housed in a 2 x 4 inch junction box with a rigid probe and measures air temperature for duct and air handling unit use. Product dimensions are 4.5 x 3 x 22 inches, weight approximately 1.15 lb, and cable uses a 20 AWG twisted, shielded pair.

• 1000 ohm (1K) platinum RTD (385) sensor element with resistance (RTD) output
• Rigid probe for duct insertion with 2 x 4 inch junction/conduit box enclosure; product dimensions 4.5 x 3 x 22 inches
• 20 AWG twisted, shielded cable pair; measurement range -40 to 180 F; designed for HVAC and air handling unit applications

Product Highlights

Single-point duct temperature sensing with 1K platinum RTD, resistance output, junction box mounting for HVAC systems

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QAM2012.045
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens Building Technologies
• Manufacturer part number: QAM2012.045
• Model: QAM2012.045
• Product type: Duct temperature sensor (single-point)
• Sensor type: 1000 ohm Platinum RTD (385 alpha)
• Sensor element: 1K Platinum RTD (385)
• Resistance: 1000 ohm (nominal at 0°C)
• Output signal: Resistance (RTD)
• Probe length: 22 in
• Product dimensions: 4.5 x 3 x 22 inches
• Weight: 1.15 lb
• Cable: 20 AWG twisted, shielded pair
• Enclosure: 2 x 4 in junction/conduit box
• Housing material: Metallic
• Mounting type: Duct mount
• Application: Duct temperature, HVAC and air handling units
• Measurement range: -40 to 180 F
• Included components: Sensor, installation instructions, installation hardware
• Country of origin: United States
• Item package quantity: 1
