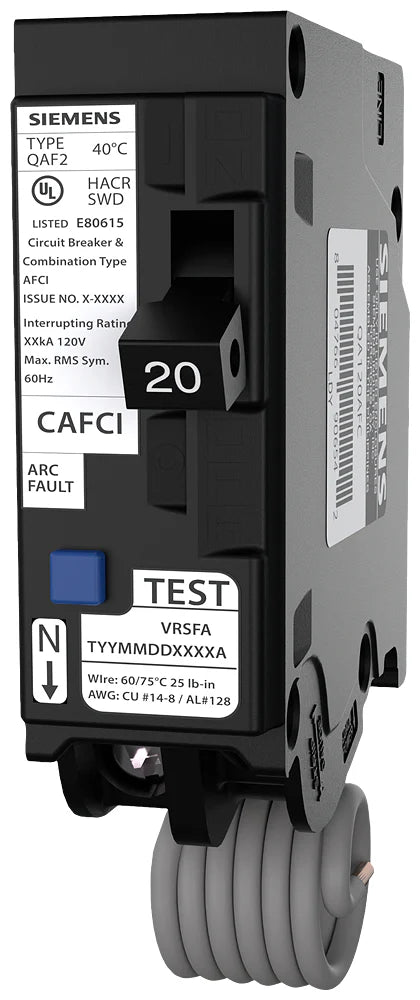

Siemens QA120AFC Breaker Ckt FlT ARC 120VAC 20A 10KA

Product Description

The Siemens QA120AFC is a combination arc fault circuit interrupter (AFCI) designed for residential use. It operates at 120 volts and has a rated current of twenty amps with a ten kiloamp interrupt rating. This device helps protect against arcing conditions in electrical circuits that standard breakers may not detect.

• Detects series and parallel arcing faults
• Trip indicators assist in identifying the cause of circuit interruptions
• Plug-in type connection allows for easy installation

Product Highlights

This AFCI breaker is ideal for homes and buildings where electrical safety is a priority. It provides an enhanced layer of protection against electrical fires caused by arcing faults.

Product Information

Standard Information

• Brand: Siemens
• MPN: QA120AFC

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Trip Type: Thermal/Magnetic
• Dimensions: 1.2 in L x 3.1 in W x 4.4 in H
• Number of Poles: 1
• Connection Type: Plug-In
• Wire Size Compatibility: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
• Frequency Rating: 50/60 Hz
• Country of Origin: Mexico
