Siemens QA115AFCCSA Breaker QAF2 AFCI 1P 120V 15A 10kA CSA

Product Description

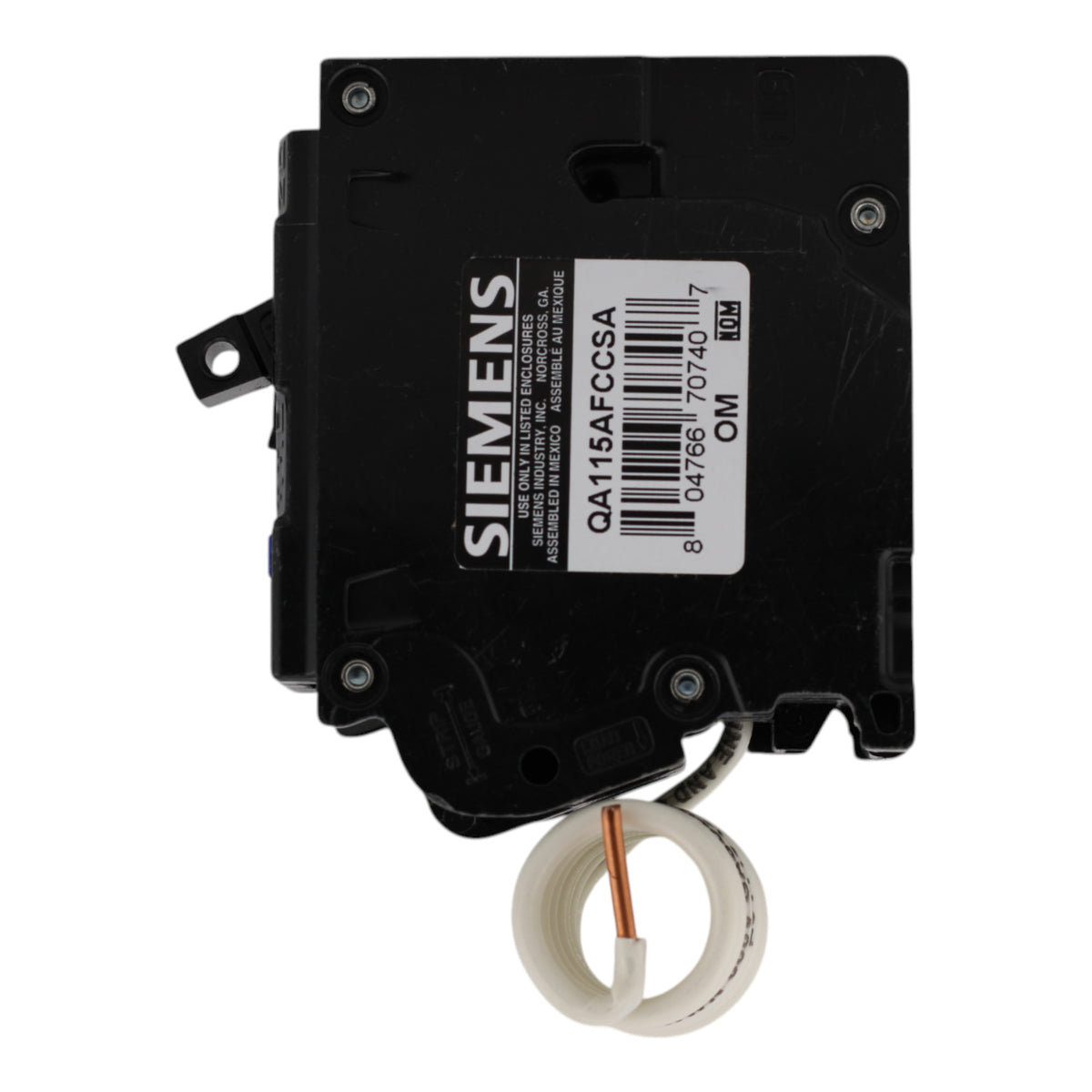

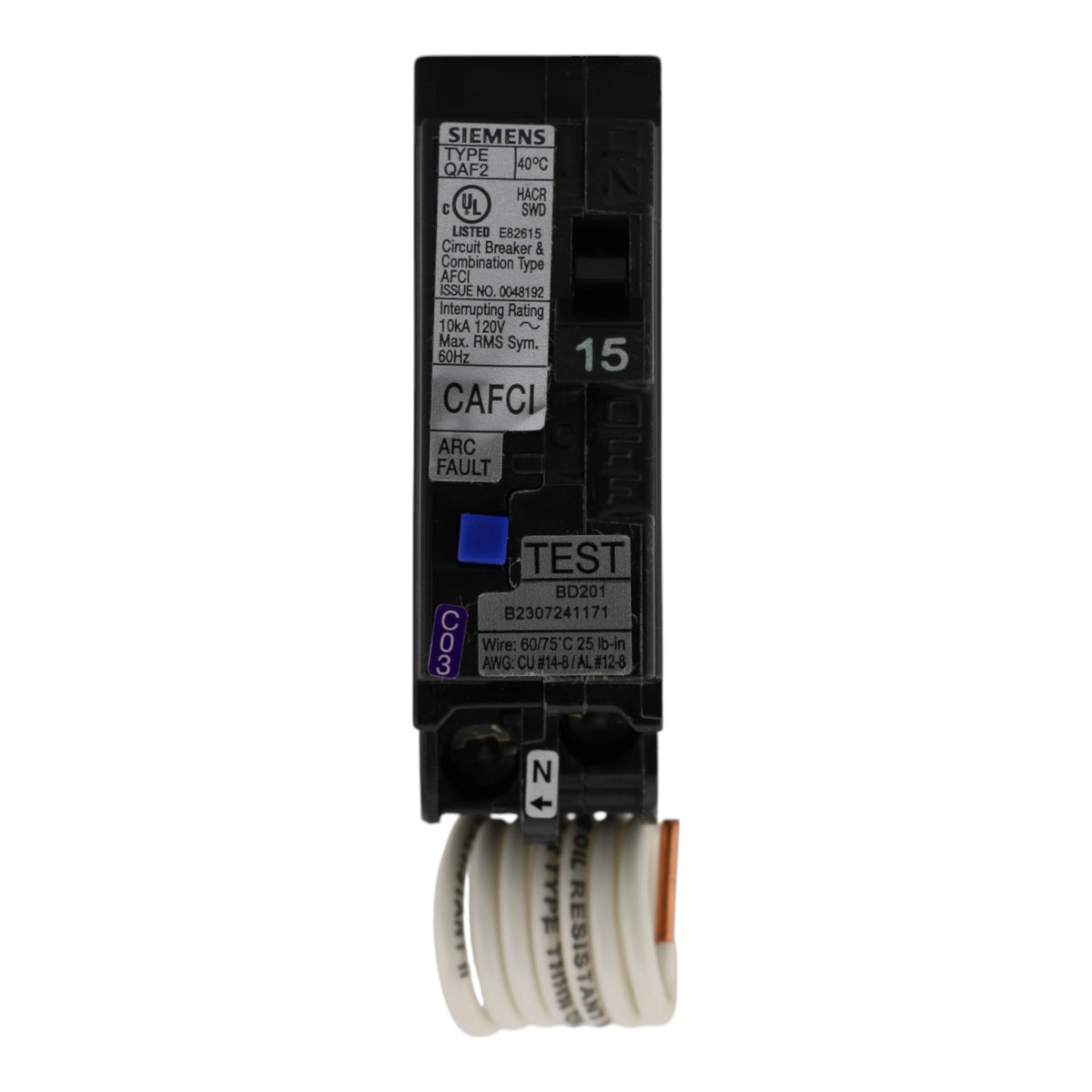

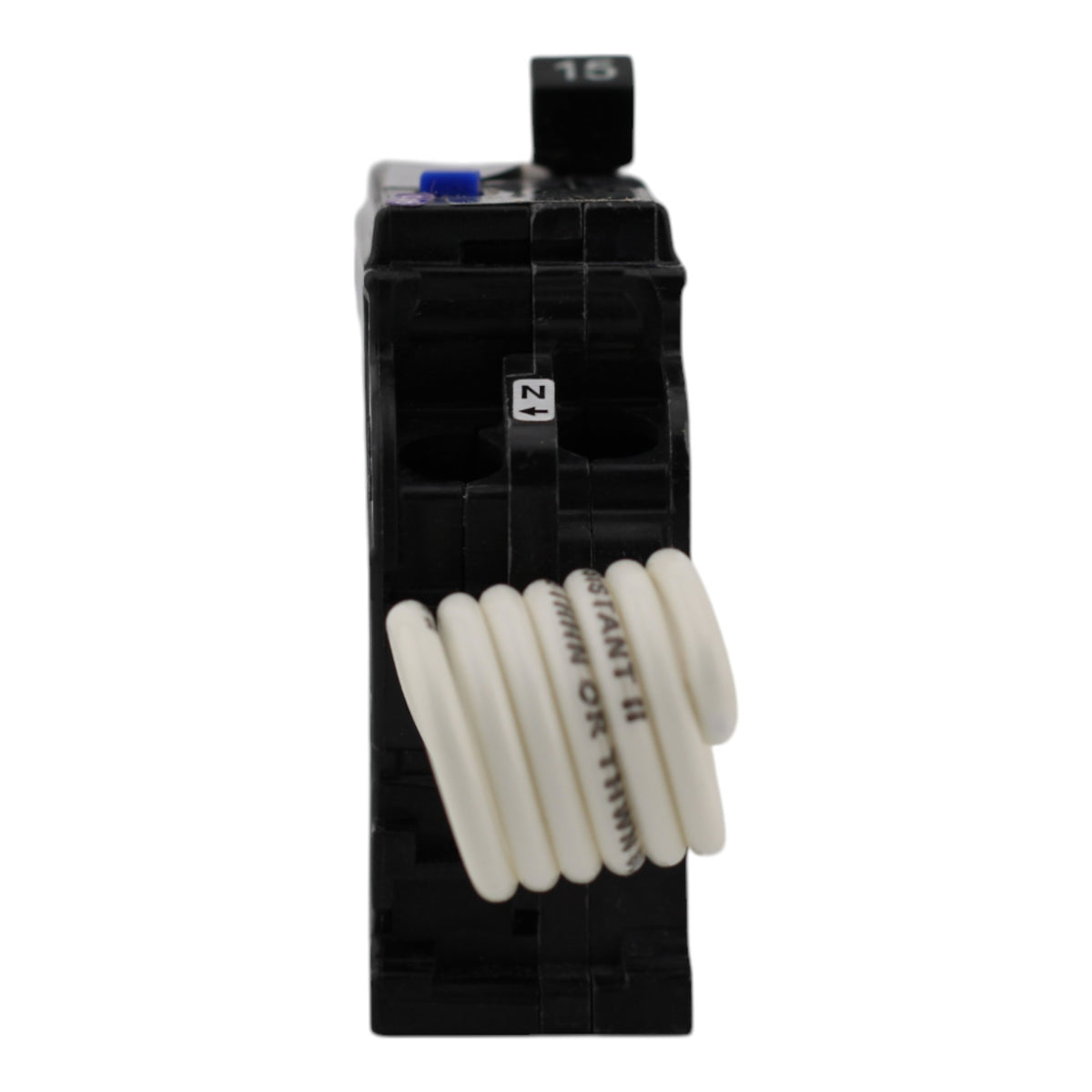

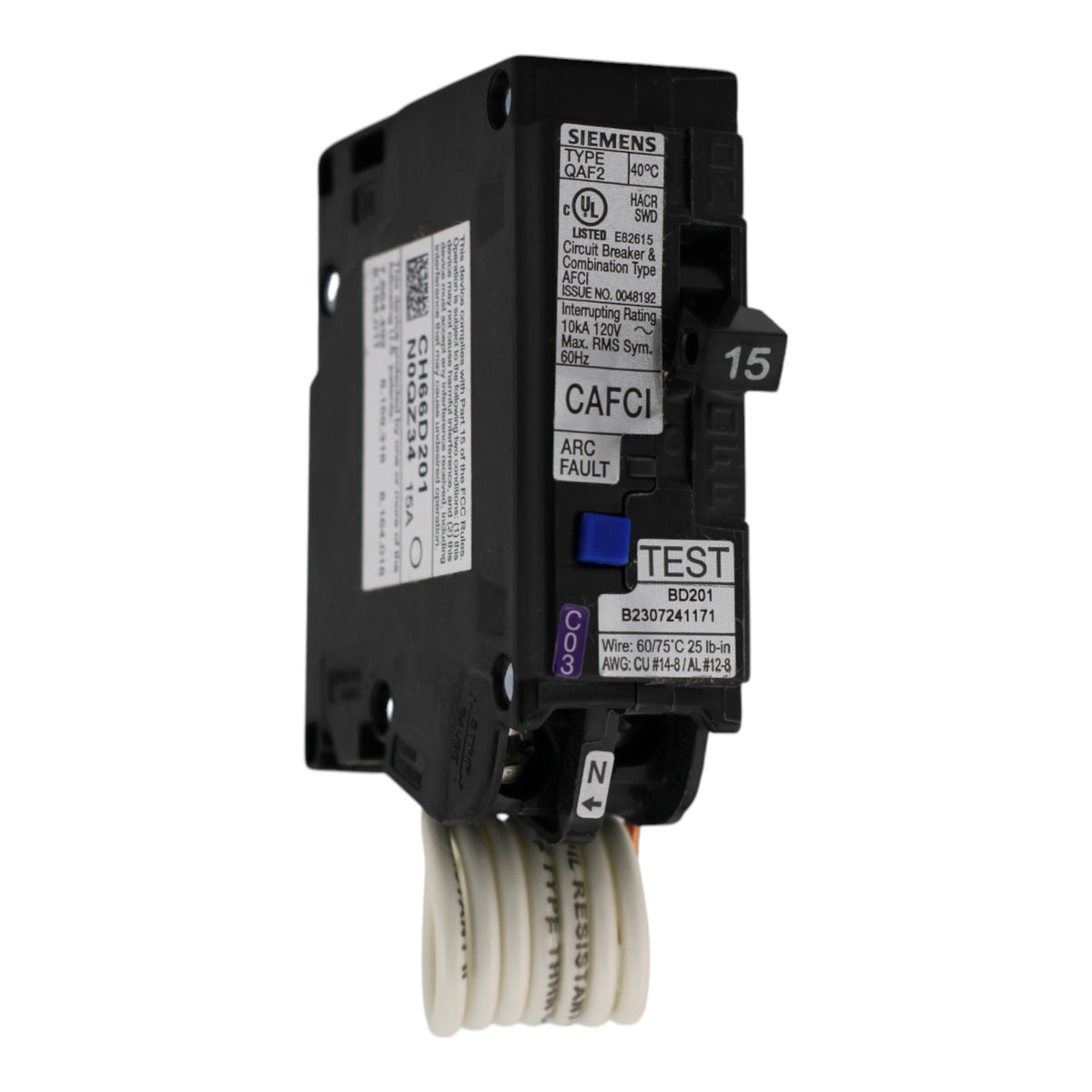

The SIEMENS QA115AFCCSA breaker is a QAF2 series AFCI circuit breaker. This 1-pole breaker is rated for 120V and 15A with a 10kA short circuit current rating. It features a plug-in mount and is CSA certified, providing arc fault protection.

• For Use In Siemens Type EQL, SEQ, EQG Loadcentres
• 1" Module Breaker
• 10kA Interrupting Rating

Product Highlights

The Siemens QA115AFCCSA is ideal for replacing single-pole 15 Amp circuit breakers in a Loadcentre for added protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QA115AFCCSA

Technical Specifications

• Brand: SIEMENS
• Current Rating: 15 Amps
• Circuit Breaker Type: AFCI
• Mounting Type: Plug-In Mount
• Number Of Poles: 1
• Voltage: 120 Volts
• Model: QA115AFCCSA
• UPC: 804766707407
• Part Number: QA115AFCCSA
• Manufacturer: SIEMENS
• Included Components: Circuit Breaker and/or Accessories
• Item Type Name: Siemens Breaker QAF2 AFCI 1P 120V 15A 10kA CSA
• Amperage (amps): 15 Amp
• Certifications and Listings: CSA Certified
• Interruption Type: AFCI
• Package Quantity: 1
• Power Distribution Features: Arc Fault Interrupter
• Assembled Depth (in inches): 3.0
• Assembled Height (in inches): 1.0
• Assembled Width (in inches): 3.13
• Packaged Depth (in inches): 2
• Packaged Height (in inches): 3
• Packaged Weight (In lbs): 0.4
• Packaged Width (in inches): 3
• Product Type: AFCI Circuit Breaker
• Product Line: QAF2 Series
• Amperage Rating: 15A
• Voltage Rating: 120V AC
• Short Circuit Current Rating: 10 kA
• Certification: CSA Certified
• Dimensions: 3 x 1 x 3 in
• Interrupt Rating: 10 kA
• Type: QAF2
• Wire Size: 12 to 8 AWG Aluminum, 14 to 8 AWG Copper
• Family: Q Series
• Subcategory: Molded Case
• Protection: Thermal Magnetic
• Poles: 1
• Functions: LI - Long-Time and Instantaneous
• Connection: Plug-In
• Phase: 1
• AIC Rating: 10kA@120V
• Category: Molded Case Circuit Breaker
• Weight: 0.50 lbs
