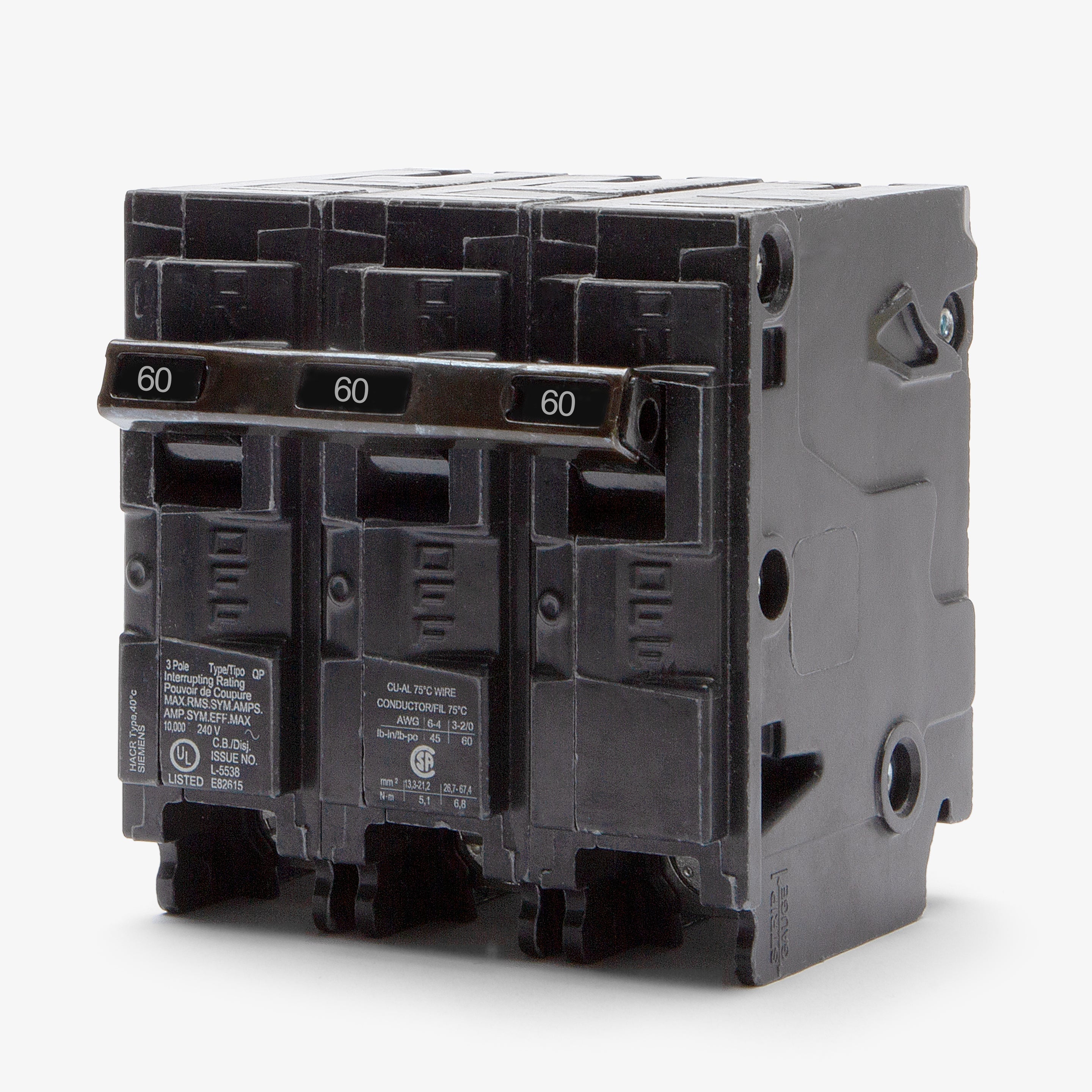

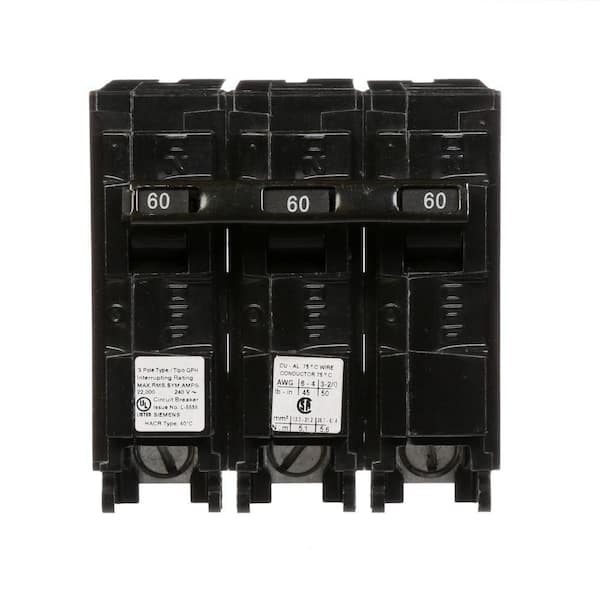

Siemens Q360H miniature circuit breaker 60A replacement MP360

Product Description

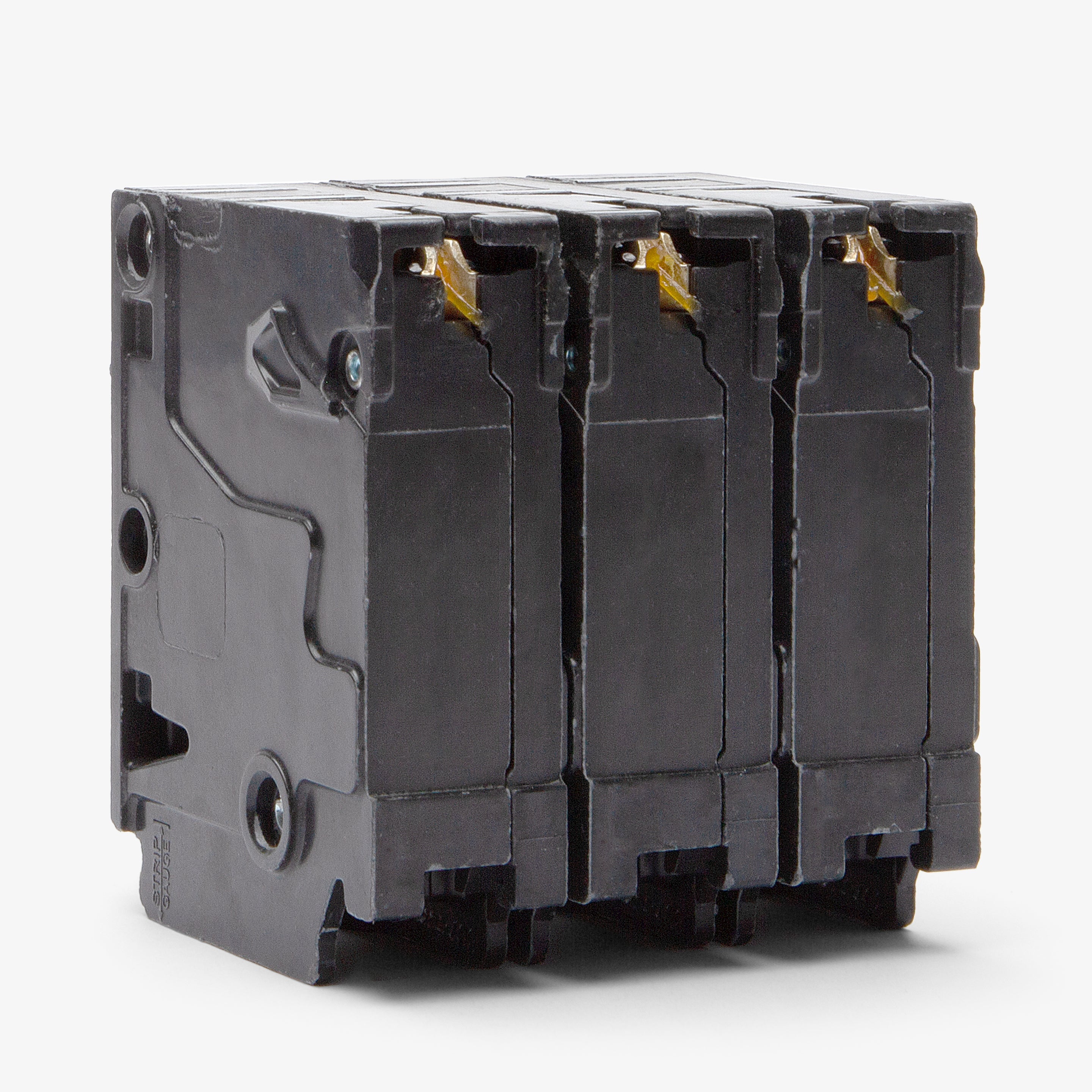

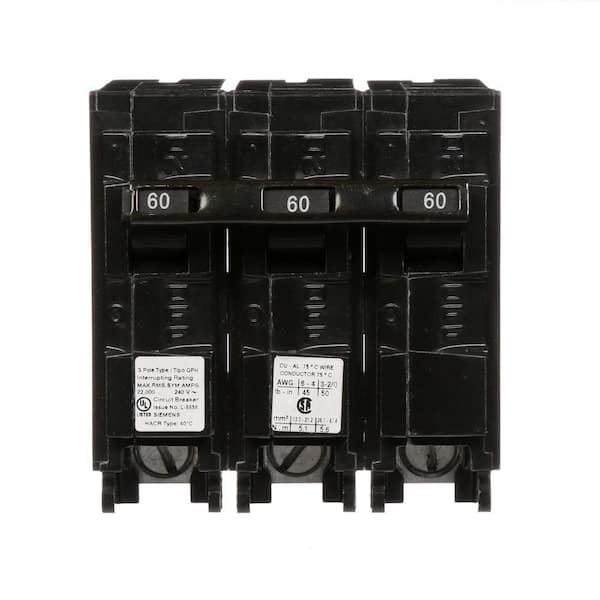

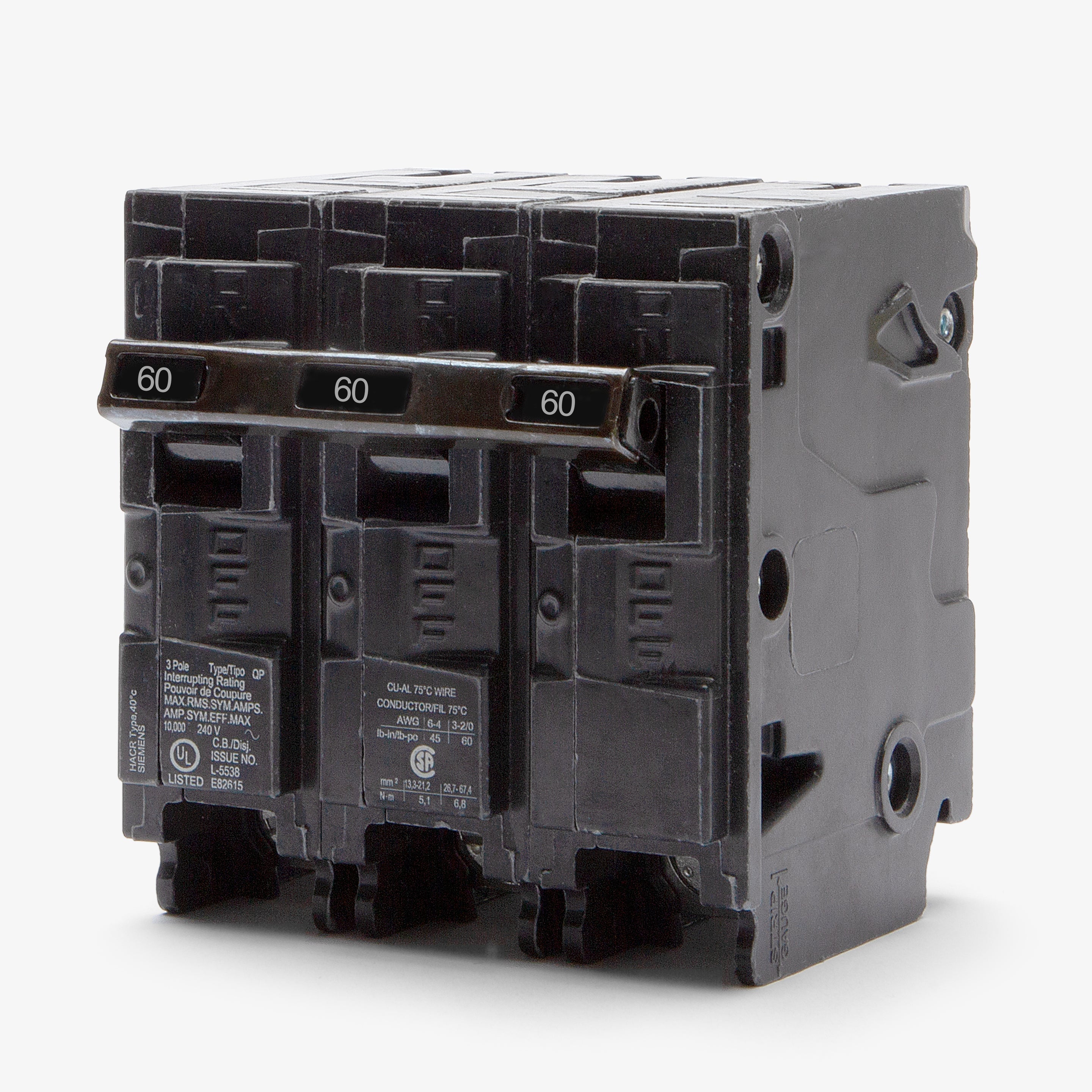

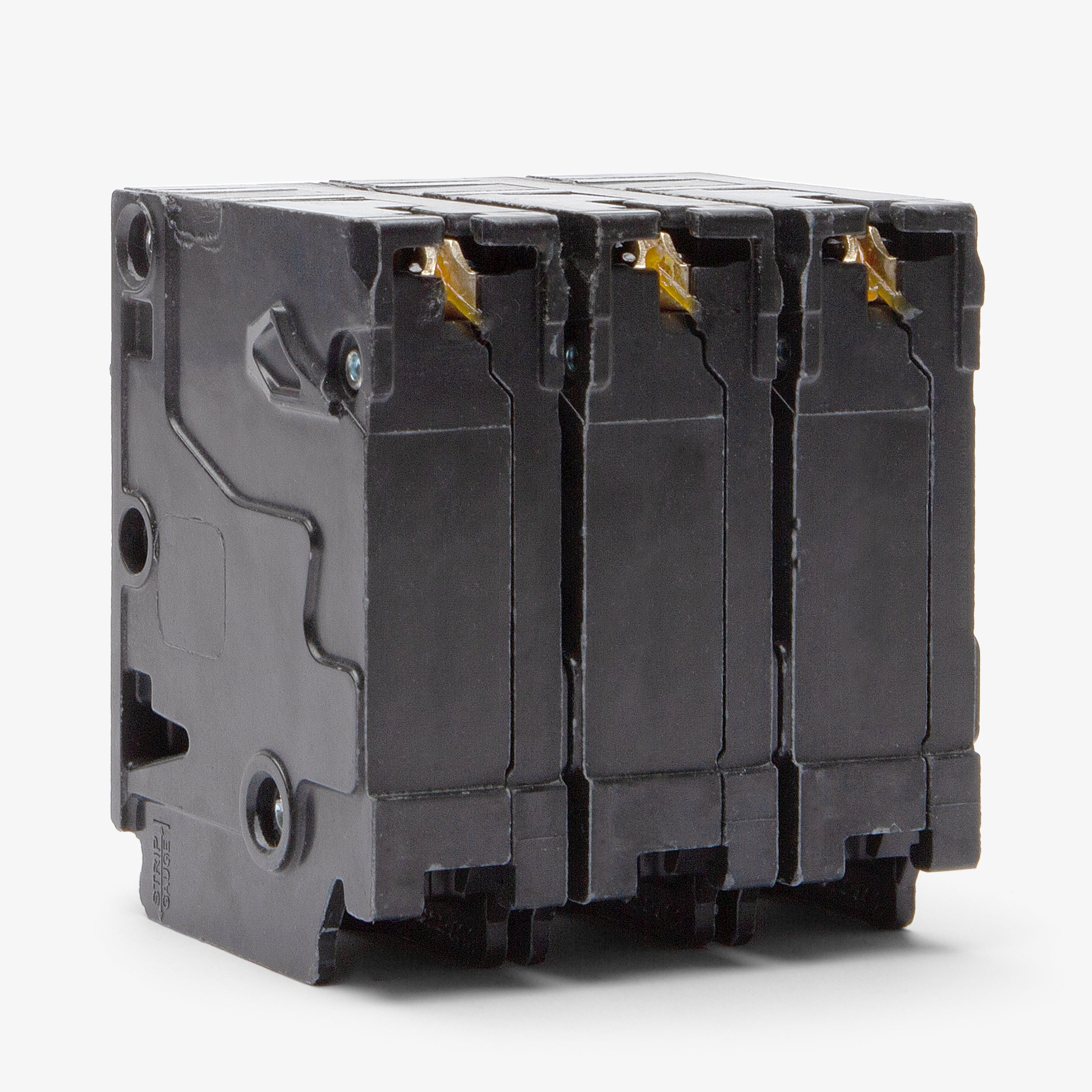

The Siemens Q360H is a 60A 3-pole miniature circuit breaker designed for residential and commercial applications. It provides reliable thermal-magnetic protection and installs into Siemens EQ, EQL, SEQ, and PL series load centers, as well as compatible panelboards. It is HACR rated for use with heating, air conditioning, and refrigeration equipment and serves as a drop-in replacement for legacy Murray MP360 breakers.

• Reliable thermal-magnetic protection
• Rated for 10 kAIC at 240VAC
• HACR rated for use with heating, air conditioning, and refrigeration equipment

Product Highlights

The Siemens Q360H circuit breaker offers 60 amps of reliable protection and is suitable for Siemens load centers and panelboards. It features a common trip mechanism and is a replacement for Murray MP360 breakers.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q360H

Technical Specifications

• Brand: Siemens
• Series: QP
• Part Number: Q360
• Amperage: 60A
• Voltage: 240VAC
• Poles: 3
• Phase: 3
• AIC Rating: 10kA @ 240VAC

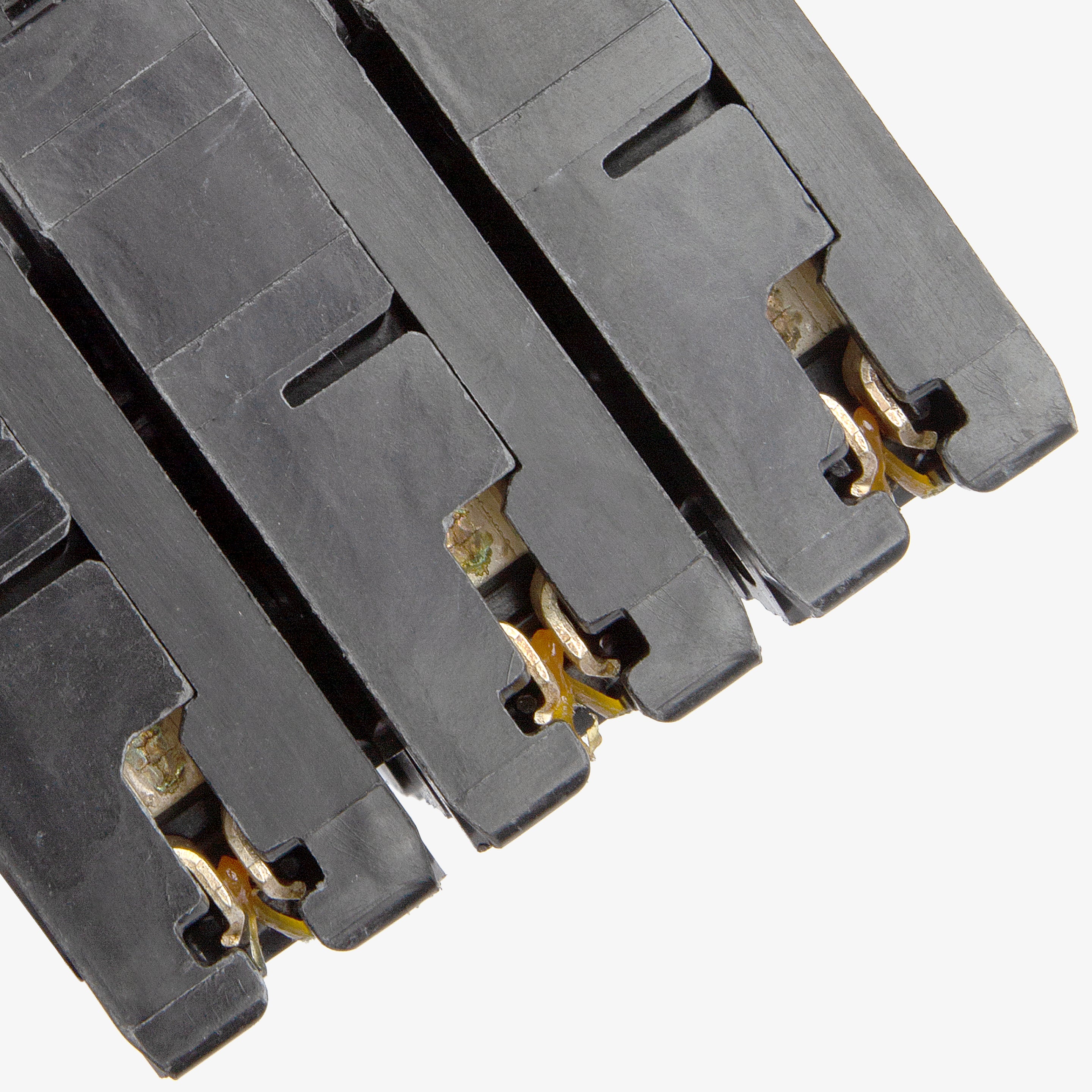

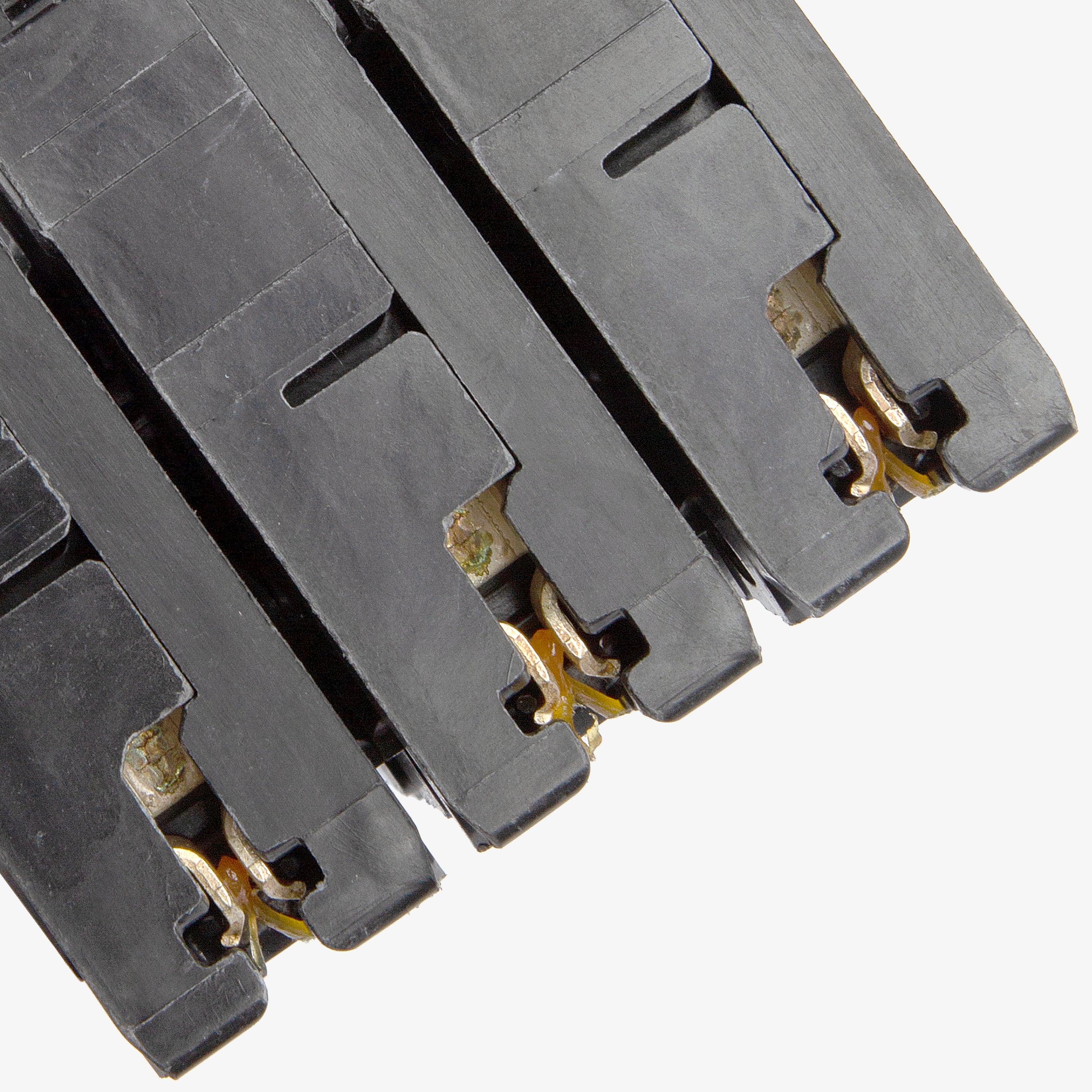

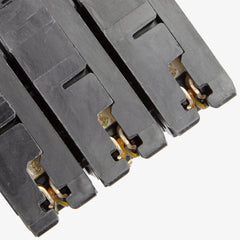

• Mounting Style: Plug-On

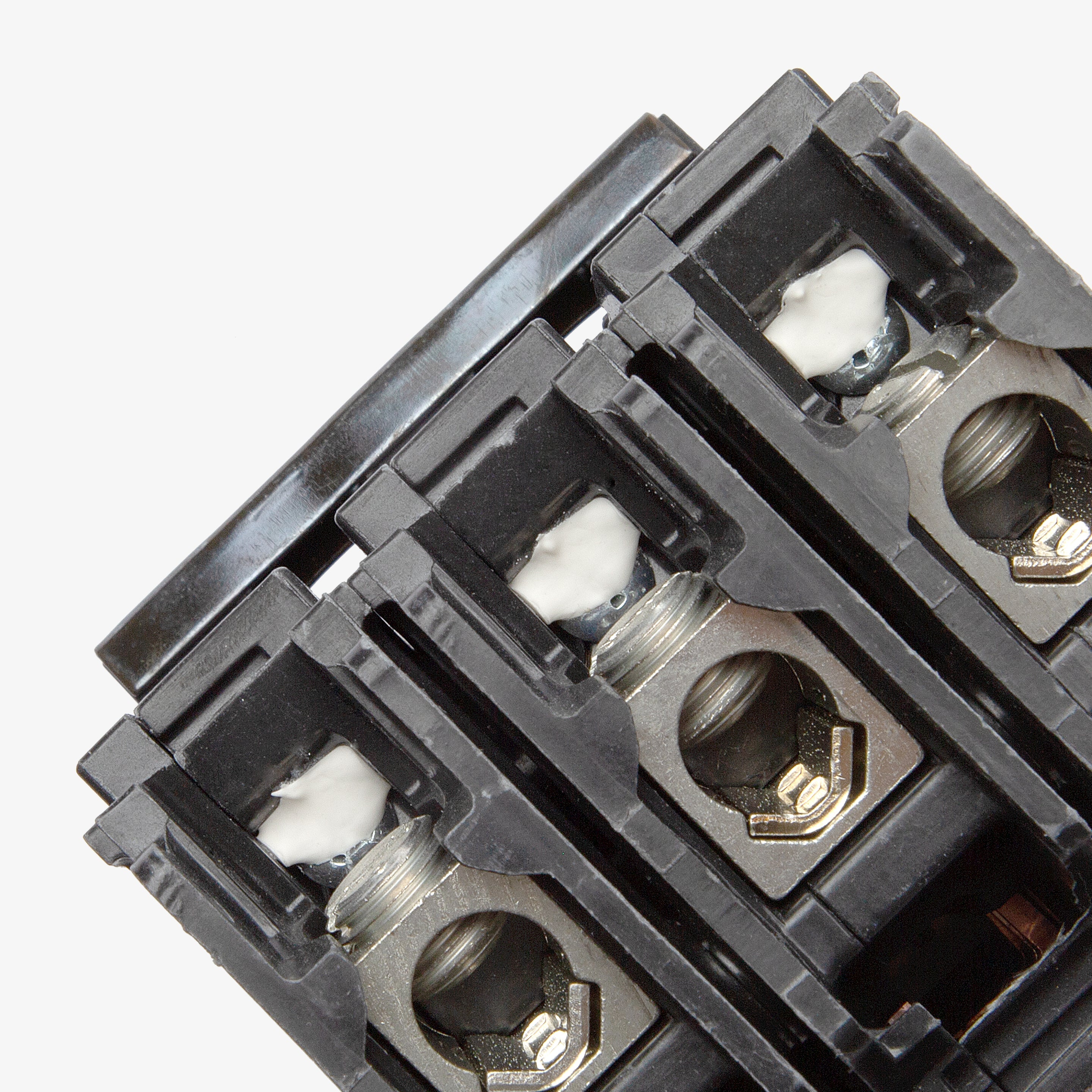

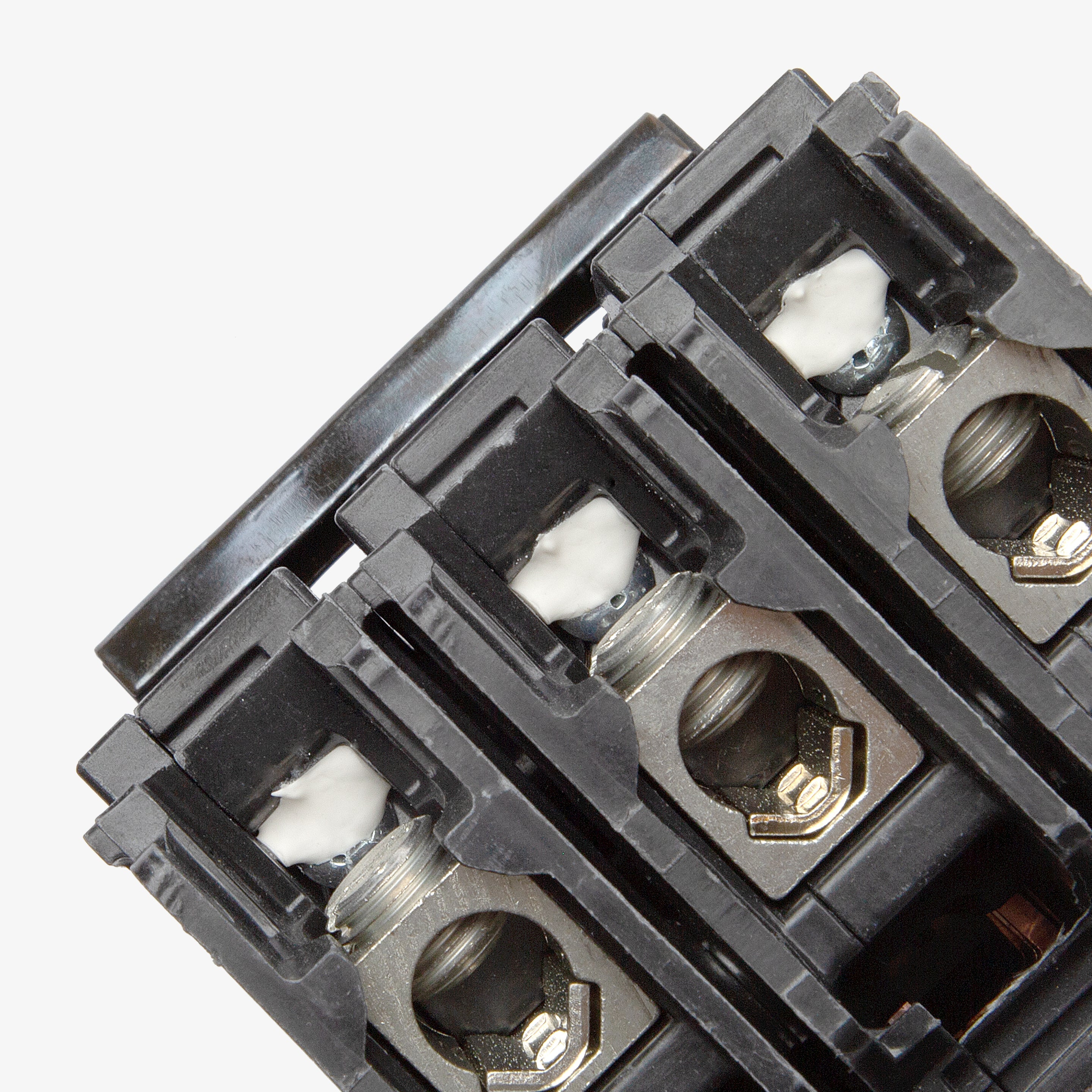

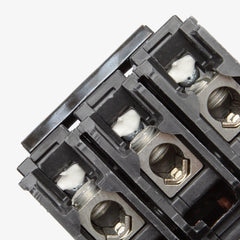

• Terminal Type: Lugs
• For Use With: Siemens Load Centers, Siemens Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 8-4 AWG (Cu/Al)
• Max Wire: 4 AWG
• Min Wire: 8 AWG
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 5, UL 489
• Approval: CSA, HACR, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Common Trip
• Interrupting Rating: 22 kA
