Product Description

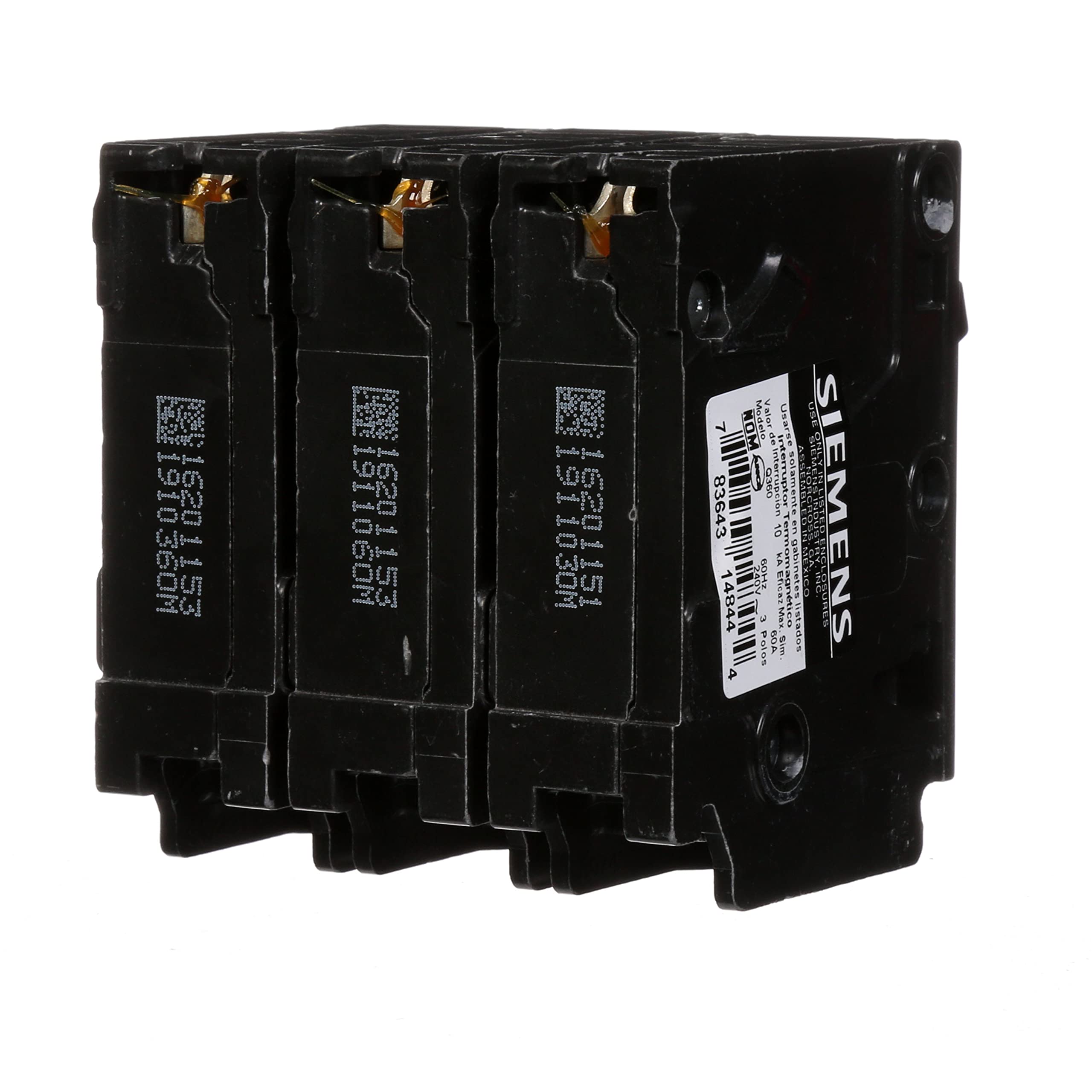

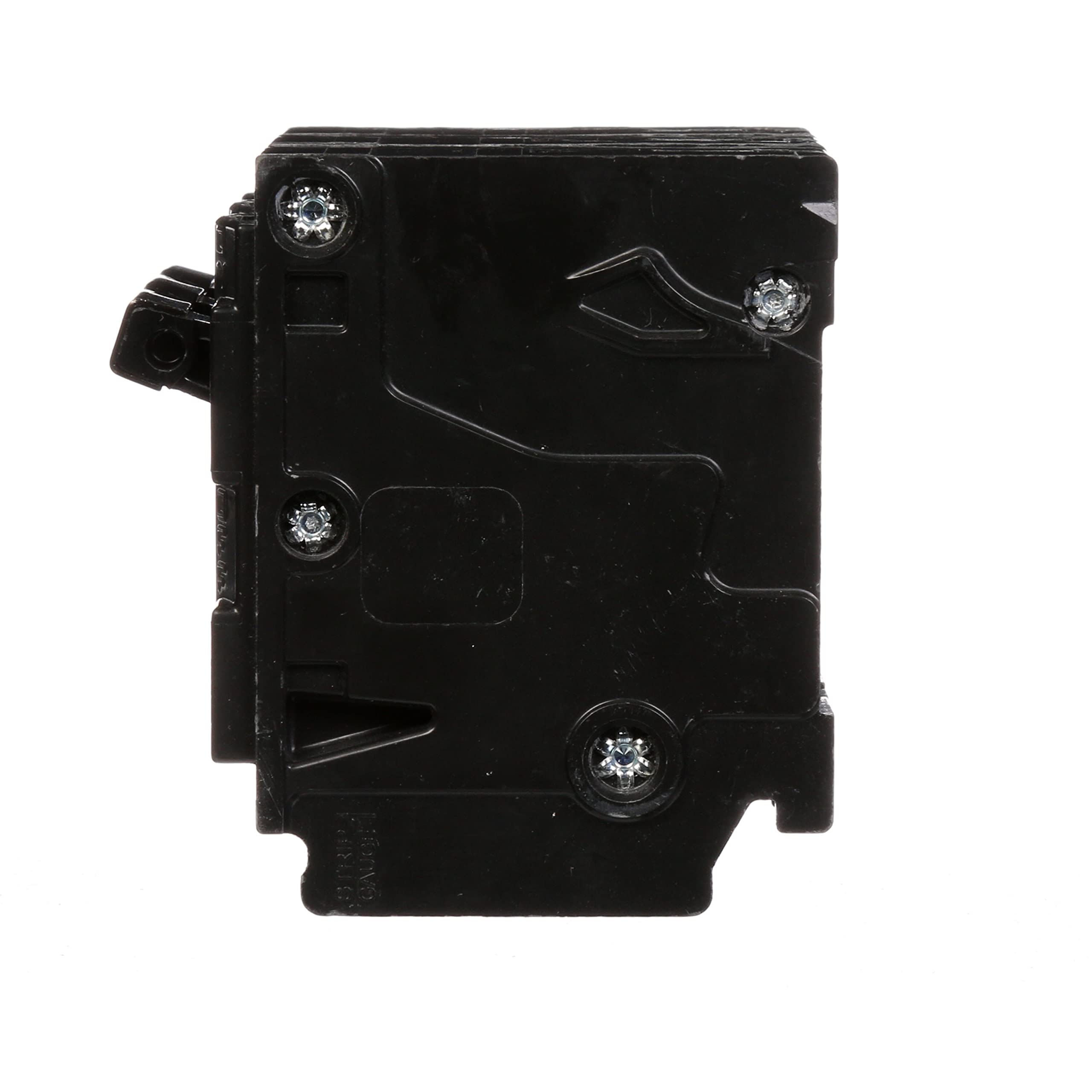

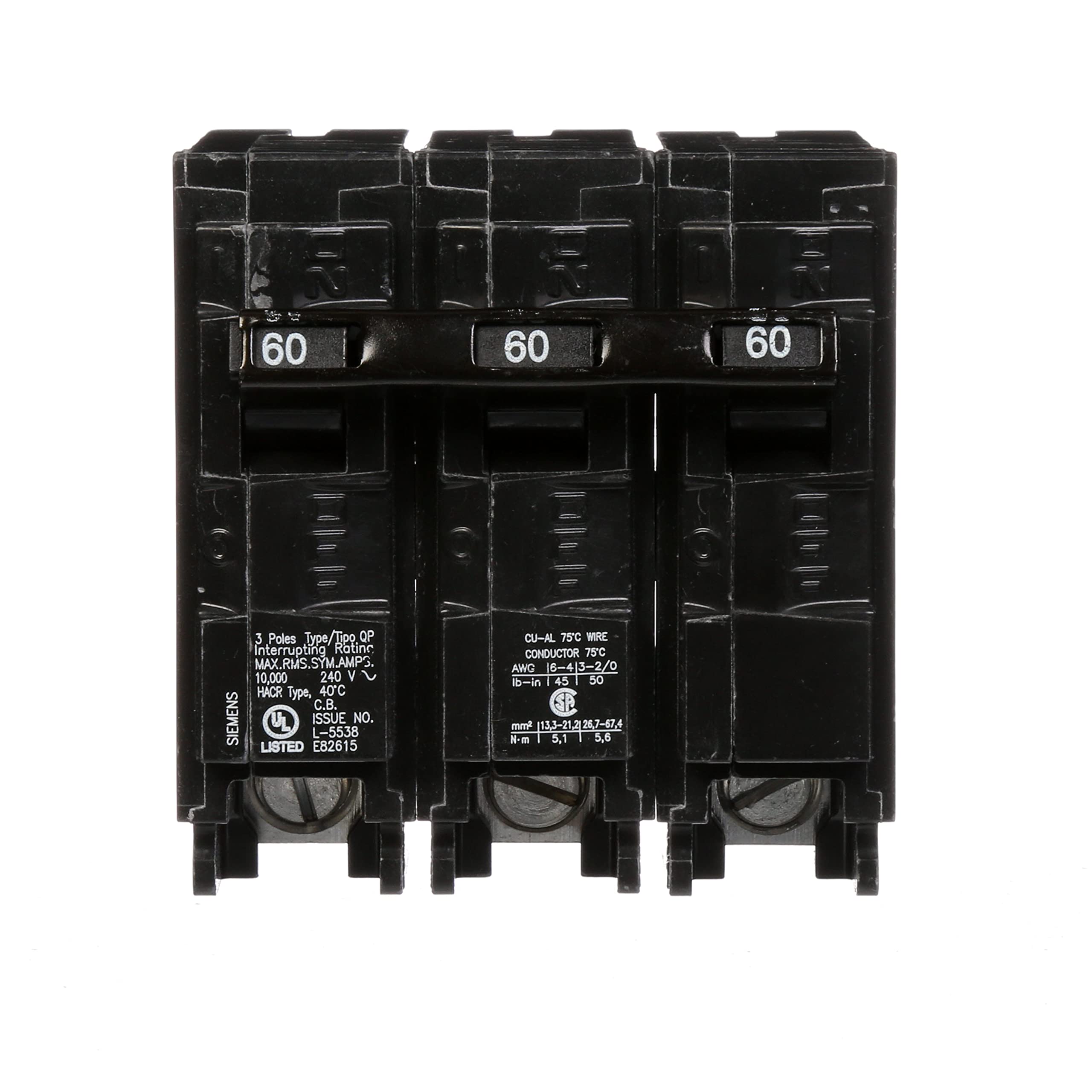

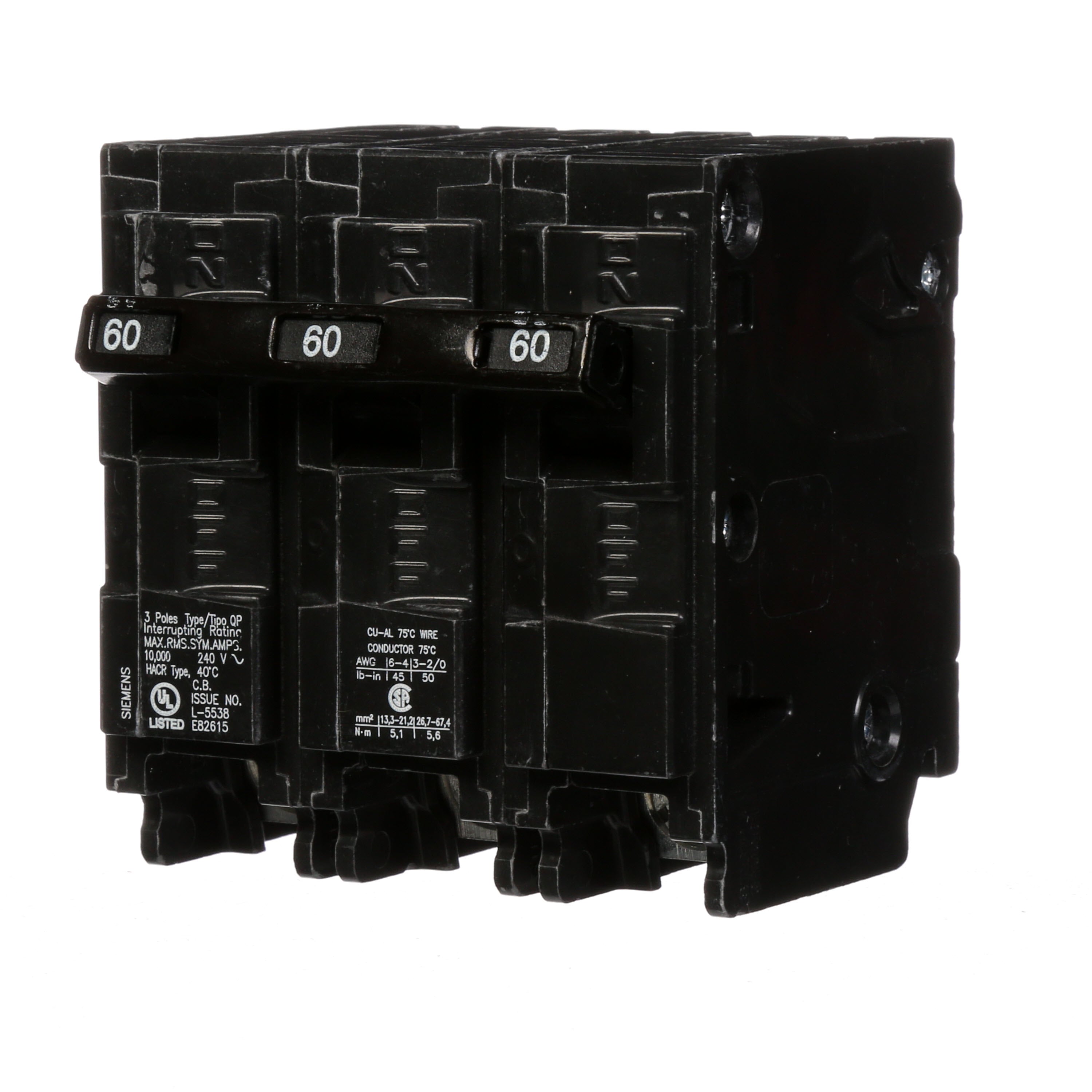

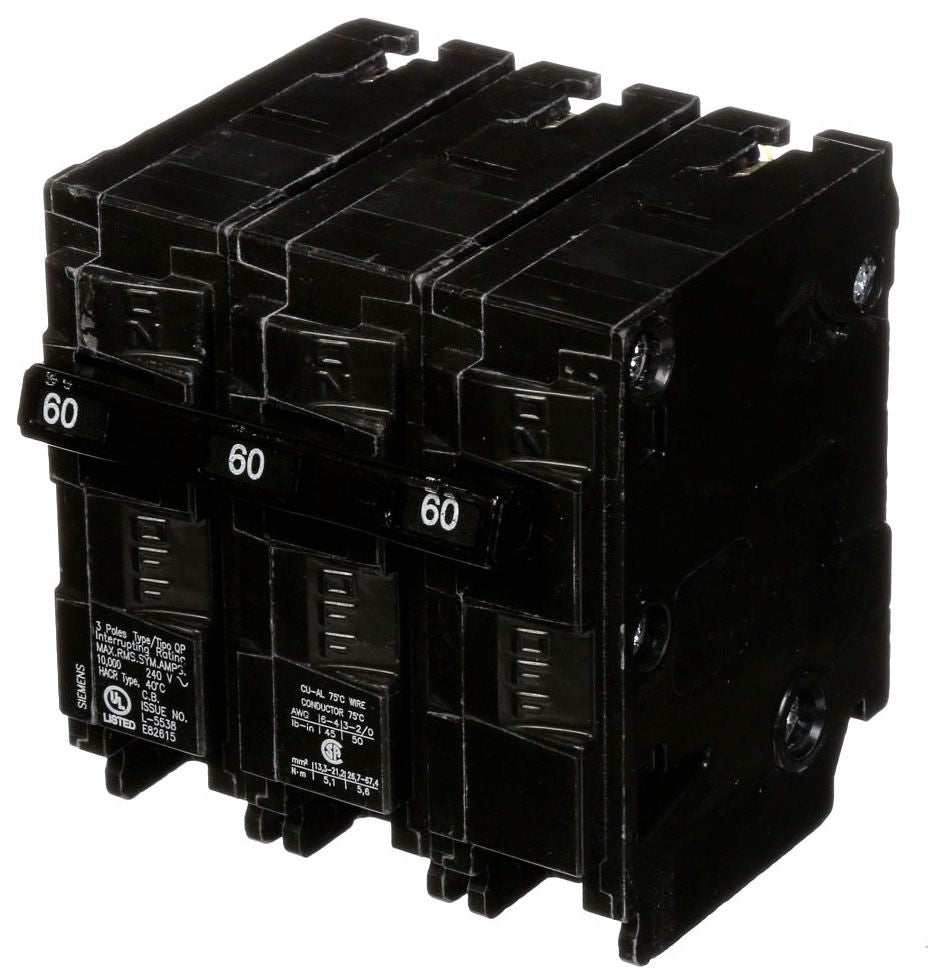

The SIEMENS Q360 is a 60-Amp Three Pole Type QP Circuit Breaker. This circuit breaker is designed for overload and short-circuit protection in residential electrical systems. It has a voltage rating of 240 Volts and is suitable for use in Siemens load centers. The unit has dimensions of 3 x 3 x 3 inches.
- 60 Amp current rating
- 240 Volts voltage rating
- Three pole configuration
Product Highlights
The SIEMENS Q360 circuit breaker provides reliable overload and short-circuit protection for residential electrical systems. It is easy to install and compatible with Siemens load centers.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: Q360
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 240 Volts
-
Current Rating: 60 Amps
-
Number Of Poles: 3
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Q360
-
Circuit Breaker Type: Low Voltage
-
Item Model Number: Q360
-
Part Number: Q360
-
Type: Low Voltage Miniature Residential
-
Frame: QP/MP
-
Phase: 3
-
Trip Type: THERMAL-MAGNETIC
-
Wire Size: 8 to 4 AWG
-
Manufacturer: SIEMENS
-
Enclosure Type: NEMA 1/3R
-
Voltage Rating: 240 VAC
-
Amperage Rating: 60 A
-
Connection Type: Plug-In
-
Frequency Rating: 50/60 Hz
-
Interrupt Rating: 10 kA
-
Temperature Rating: 40 deg C
-
Approval: UL 489
-
Application: Electrical Distribution
-
Brand: SIEMENS
-
Poles: 3
-
Width: 3 inch
-
Depth: 3 inch
-
Height: 3-1/8 inch
-
Tripping Method: magnetic, thermal
-
NEMA: 1, 3r
-
Standard: ULLISTED/CSA/NOMCERTIFIED
-
Special Features: 10kAINTERRUPT
-
Current: 60 Amp
-
Trip Range: Thermal Magnetic
-
Applications: Electrical Distribution
-
TC Connection: PLUG-IN
-
Conductor Size: 8-4 AWG
-
Manufacturer Name: Siemens
-
Used On: Loadcenter
-
Category: Circuit Breaker
-
Catalog Number: Q360
-
Made in USA: No
-
Length: 3
-
Length UOM: Inch
-
Width UOM: Inch
-
Mounting Type: Pole
