Product Description

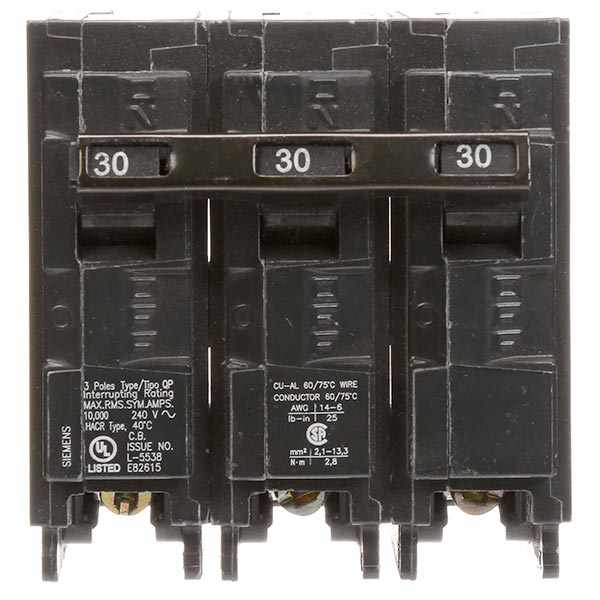

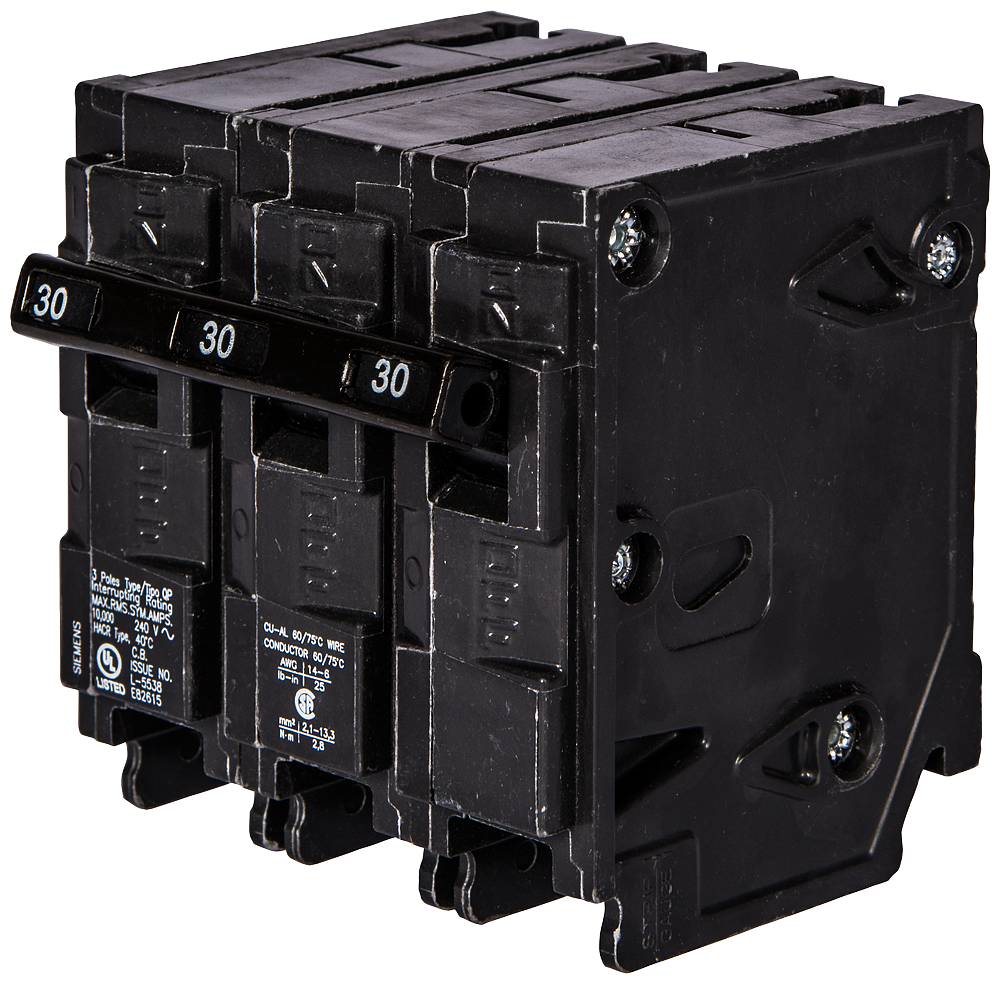

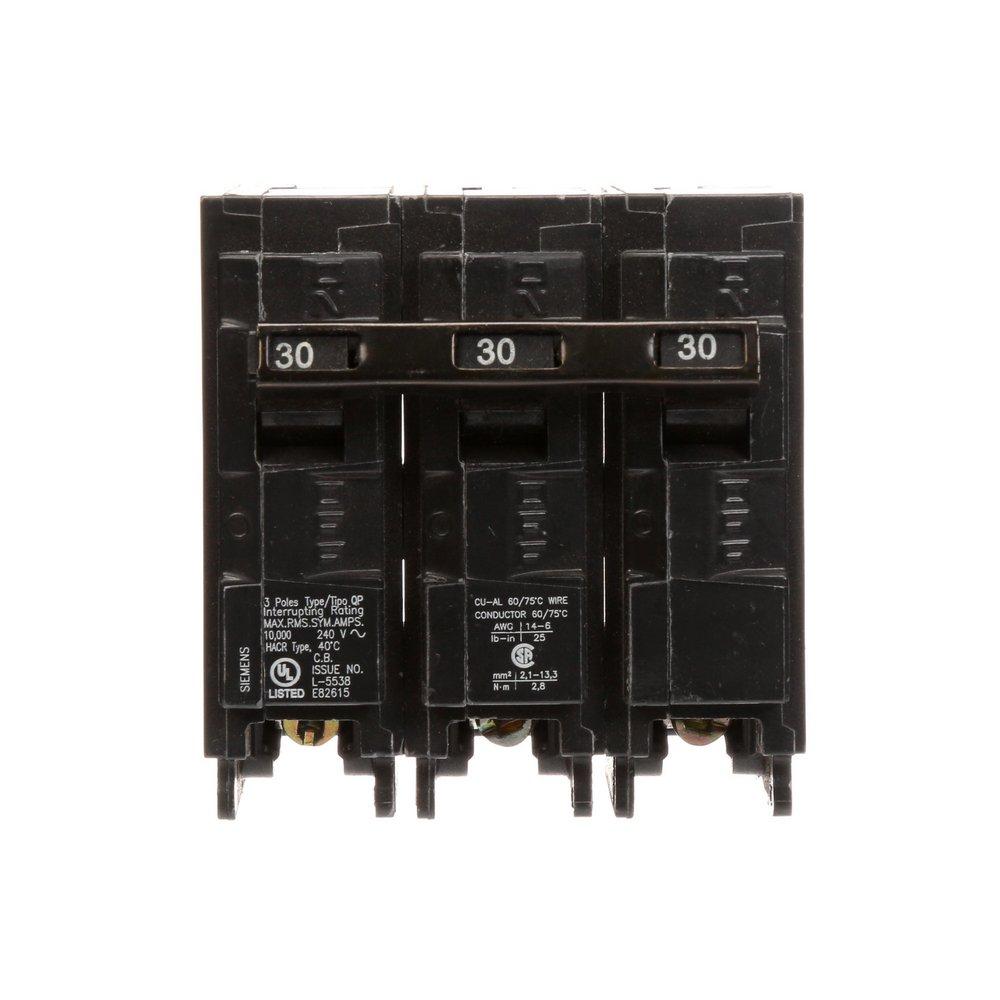

The Siemens Q330 is a low voltage miniature residential molded case circuit breaker. It features a voltage rating of two hundred forty volts and an amperage rating of thirty amps. This breaker provides thermal and magnetic trip protection. Designed for panel mounting, this circuit breaker is suitable for air conditioning, heating, refrigeration, and electrical distribution applications.
- Voltage Rating: 240 VAC
- Amperage Rating: 30 A
- Interrupt Rating: 10 kA
Product Highlights
This circuit breaker offers easy plug-in connections. It is equipped with an insta-wire feature, allowing for quicker connections. The Q330 is ideal for use in residential settings.
Product Information
Standard Information
-
Manufacturer: Siemens
-
Type: Low Voltage Miniature Residential
Technical Specifications
-
Frame: QP/MP
-
Number of Poles: 3
-
Connection Type: Plug-In
-
Frequency Rating: 50/60 Hz
-
Wire Size: 14 to 6 AWG, 12 to 6 AWG
-
Temperature Rating: 40 degrees C
-
Dimensions: 3 inches L x 3 inches W x 2.87 inches H
-
Enclosure Type: NEMA 1/3R
