Product Description

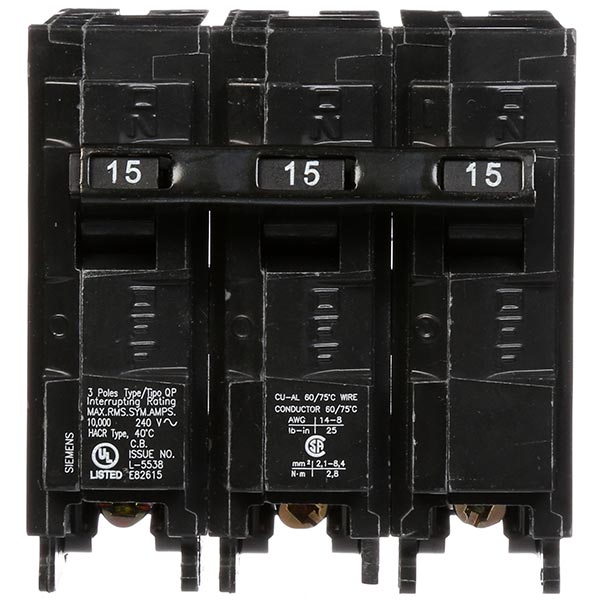

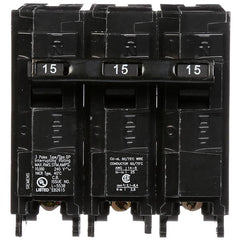

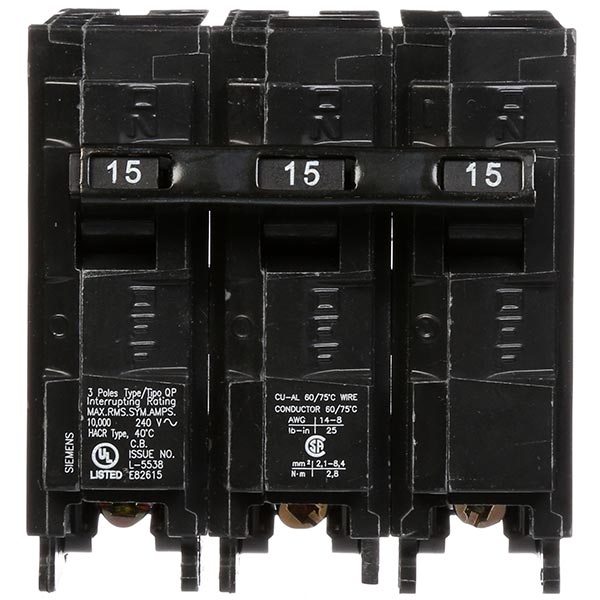

The Siemens Q315 is a low voltage miniature residential molded case circuit breaker. It features a thermal/magnetic trip type, designed to handle a voltage rating of two hundred forty volts and an amperage rating of fifteen amps. This circuit breaker is suitable for residential electrical distribution applications. It can interrupt a current of up to ten kiloamperes, making it a reliable choice for various installation needs.
- Type QP molded case circuit breaker
- 3 poles with a plug-in connection type
- Suitable for wire sizes ranging from fourteen to ten AWG
Product Highlights
The Siemens Q315 circuit breaker is exceptional for air conditioning, heating, refrigeration, and distribution applications.
Product Information
Standard Information
-
Voltage Rating: 240 VAC
-
Amperage Rating: 15 A
Technical Specifications
-
Type: Low Voltage Miniature Residential
-
Number of Poles: 3
-
Interrupt Rating: 10 kA
-
Frequency Rating: 50/60 Hz
-
Dimensions: 3 inches L x 3 inches W x 2.87 inches H
-
Enclosure Type: NEMA 1/3R
-
Temperature Rating: 40 deg C
-
Trip Type: Thermal/Magnetic
