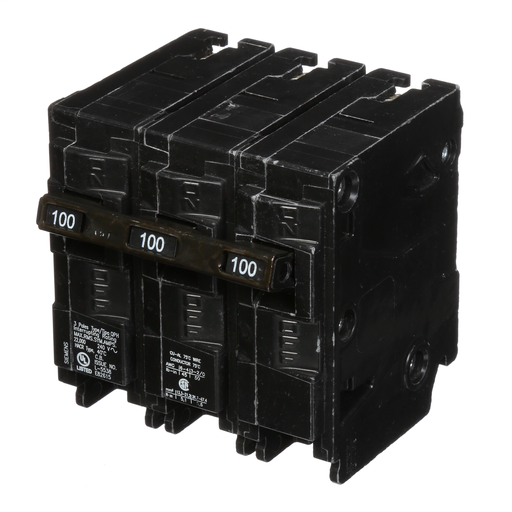

Siemens Q3100H 3-Pole 100 Amp 240 VAC 22 kA Plug-In Circuit Breaker

Product Description

The Siemens Q3100H is a 3-pole circuit breaker designed for use in electrical distribution systems. It operates at a voltage of two hundred forty volts and has a current rating of one hundred amps. This circuit breaker is essential for protecting circuits against overload and short circuit conditions.

• Rated voltage: 240 VAC
• Trip type: Thermal Magnetic
• Interrupt rating: 22 kA

Product Highlights

This circuit breaker is suitable for residential and commercial applications. It provides reliable protection for feeders and is compatible with various loads, including those typically found in heating, cooling, and refrigeration systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: Q3100H

Technical Specifications

• Voltage rating: 240 Volt
• Amperage rating: 100 Amp
• Number of poles: 3
• Depth: 3 inches
• Width: 4 inches
• Height: 3.5 inches
• Weight: 1.015 lb
• Connection type: Plug-In
• Conductor size: 2-1/0 AWG (AL)/4-1/0 AWG (CU)
• Country of origin: Mexico
