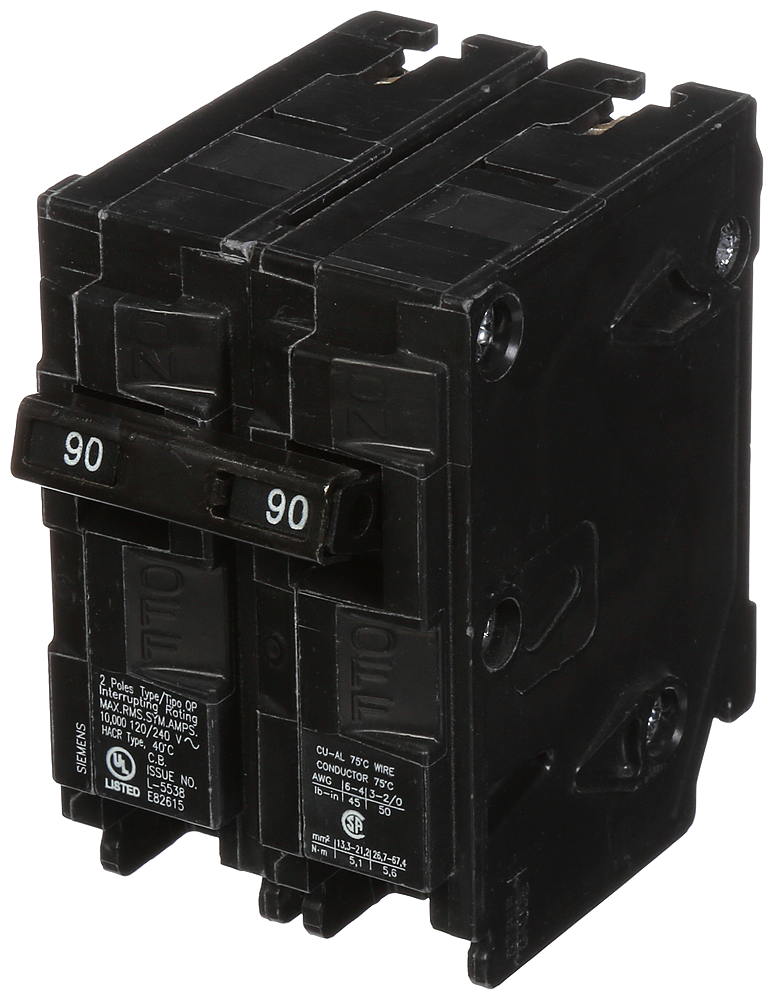

Siemens Q290 2-Pole 120/240 VAC 90 Amp 10 kA Plug-In Common Trip Circuit Breaker

Product Description

The Siemens Q290 is a 2-pole plug-in circuit breaker designed for panelboard mounting. With a voltage rating of 120/240 VAC and an amperage of 90, this circuit breaker meets electrical distribution needs. It features thermal magnetic trip technology and has a ten kiloamp interrupt rating.

• Voltage Rating: 120/240 VAC
• Amperage: 90 Amp
• Interrupt Rating: 10 kAIC

Product Highlights

This breaker provides effective protection for electrical circuits, ensuring operational safety by interrupting excess current during overload or short-circuit conditions.

Product Information

Standard Information

• Catalog Number: Q290
• Brand: Siemens

Technical Specifications

• Frame: QP (125A)
• Connection Type: Plug-In
• Number of Poles: 2
• Dimensions: 3 inches (L) x 3 inches (W) x 3.5 inches (H)
• Weight: 0.615 lb
• Applications: Electrical Distribution
• Conductor Size: 2-1/0 AWG (AL) / 4-1/0 AWG (CU)
• Country of Origin: Mexico
