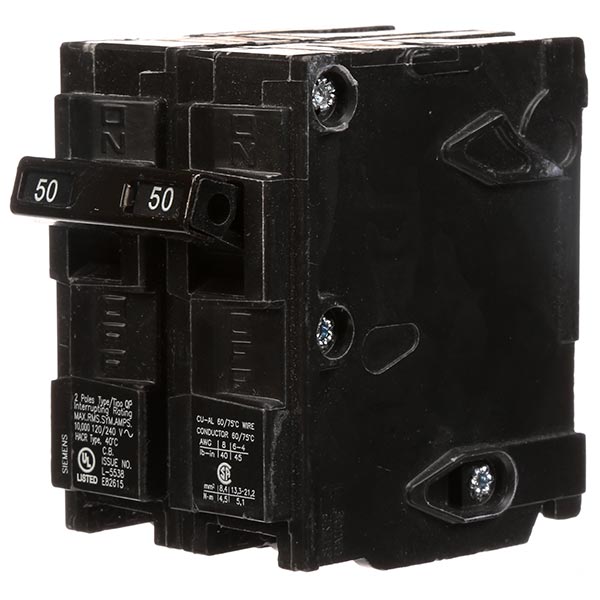

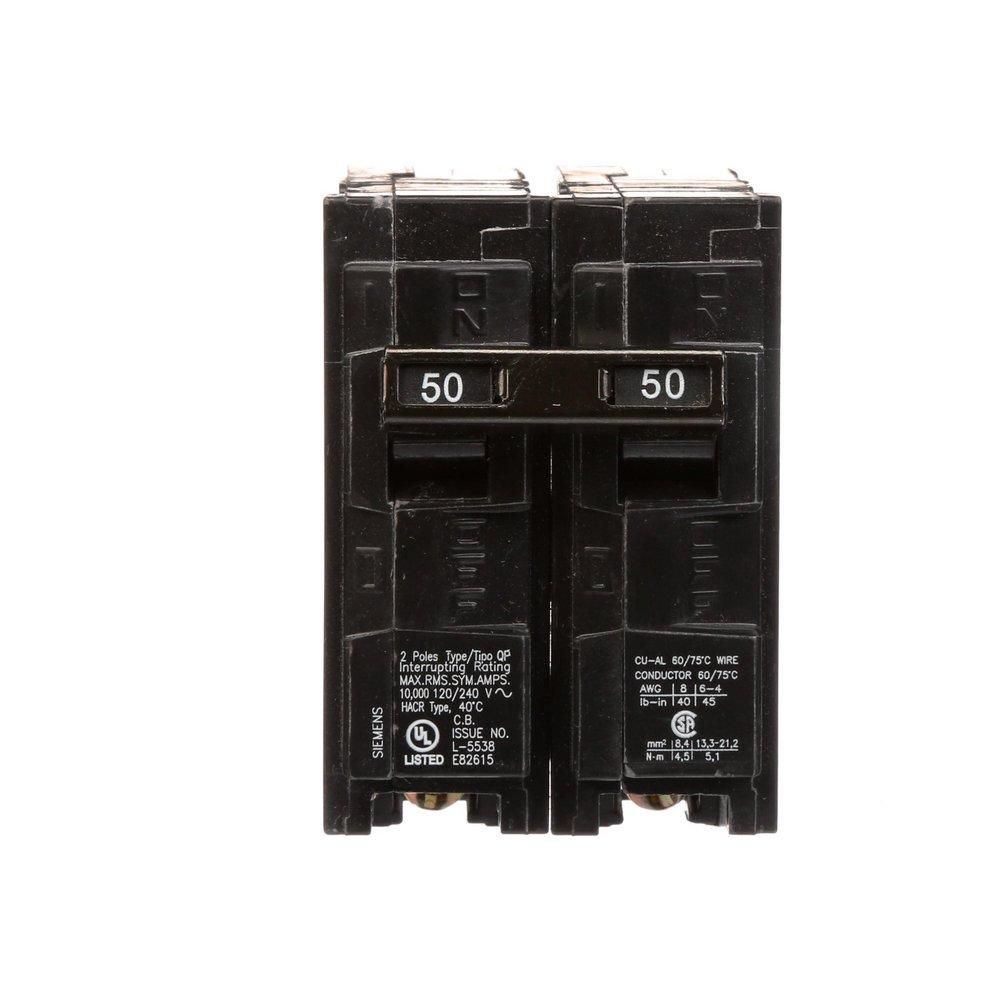

Siemens Q250 QP/MP Circuit Breaker, 120/240 VAC, 50 Amp, 10 kAIC, 2 Poles

Product Description

The Siemens Q250 molded case circuit breaker is designed for use in power distribution. It operates at 120/240 VAC and has a 50 Amp rating with a 10 kA interrupt rating. This circuit breaker features a plug-in design suitable for load center installations. The LI/Thermal Magnetic trip mechanism ensures reliable protection against overloads and short circuits.

• Two poles for use in various applications
• Compatible with wire sizes 8 to 6 AWG (copper) and 8 to 4 AWG (aluminum)
• Temperature rating of forty degrees Celsius

Product Highlights

This circuit breaker is suitable for electrical distribution applications in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Siemens
• MPN: Q250

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 A
• Interrupt Rating: 10 kA
• Connection Type: Load Lug/Plug-In
• Number of Poles: 2
• Frequency Rating: 60 Hz
• Temperature Rating: 40 deg C
• Dimensions: 3 in L x 3 in W x 2 in H
• Enclosure Type: NEMA 1/3R
• Standard: UL 489
• Country of Origin: Mexico
