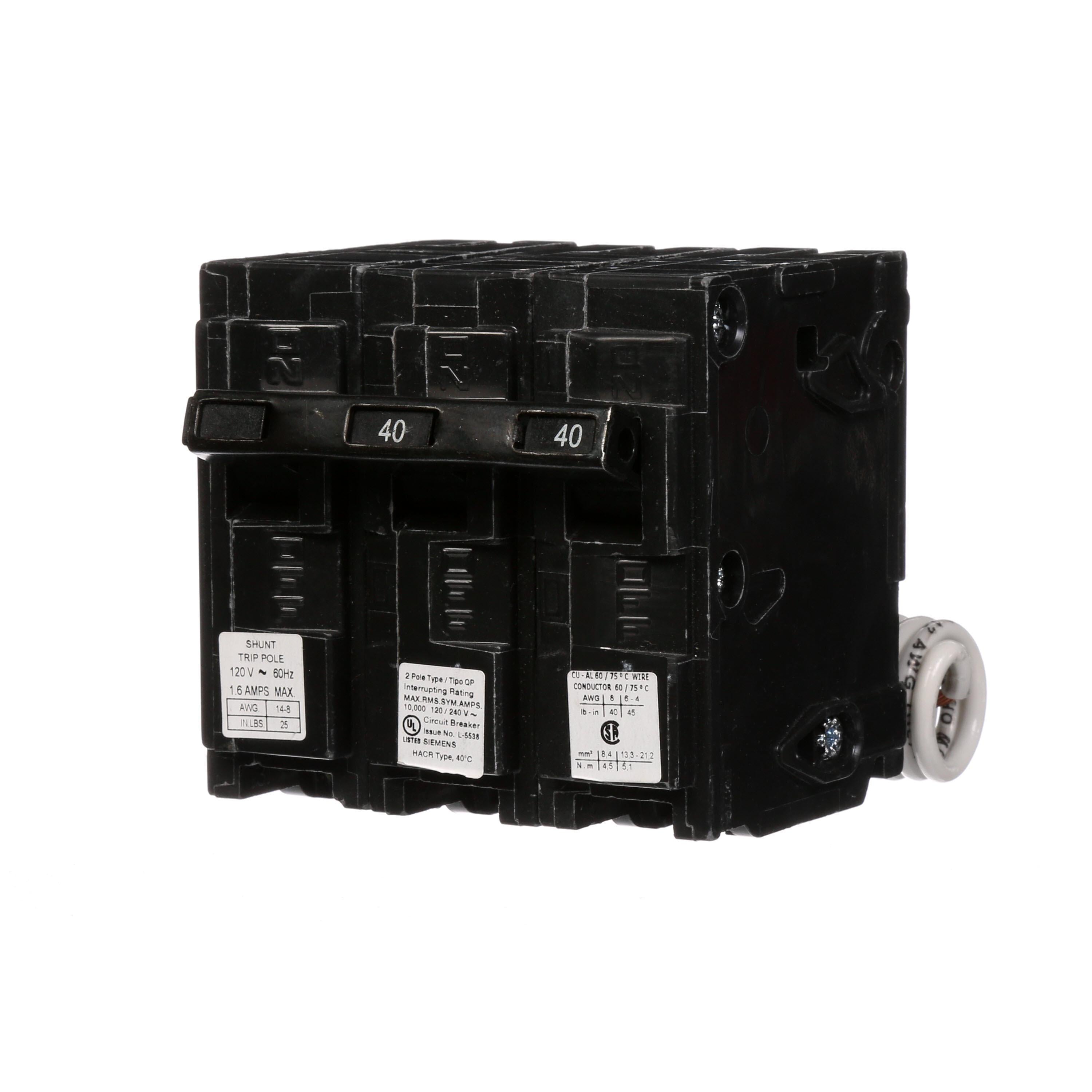

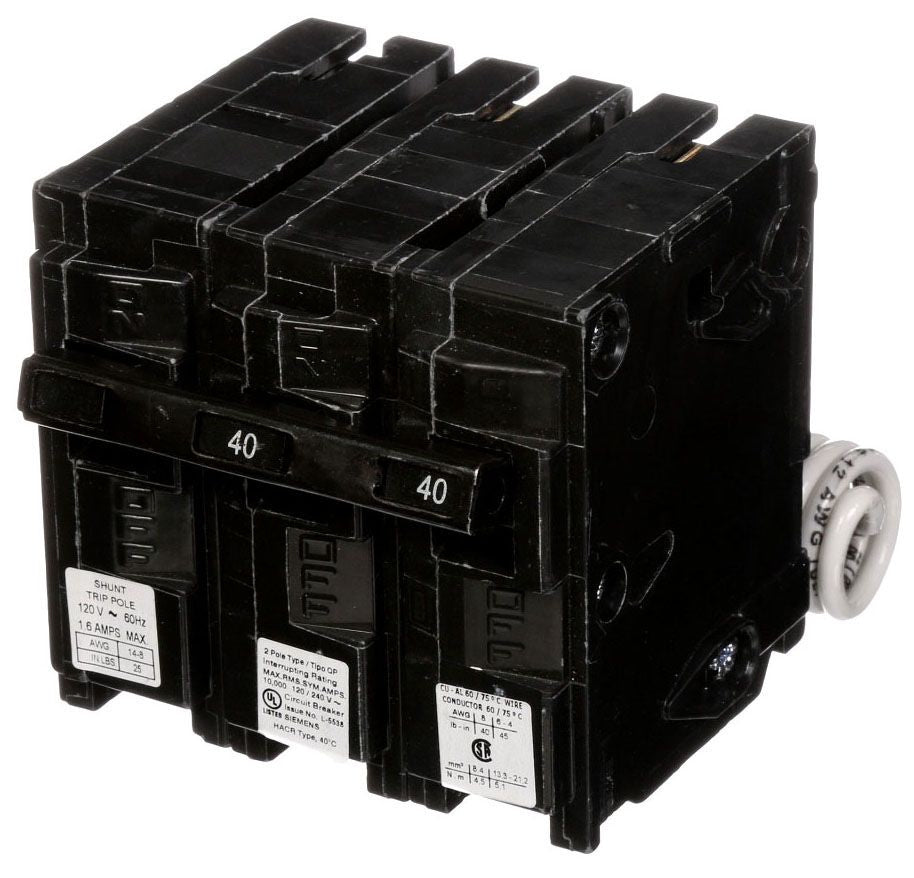

Siemens Q24000S01 Plug-In Circuit Breaker 40 A

Product Description

The SIEMENS Q24000S01 plug-in circuit breaker is a 2-pole, 40A breaker designed for 120/240V systems. It features a thermal and fixed magnetic, common trip mechanism and is suitable for use in load centers. This circuit breaker provides reliable circuit protection for electrical distribution applications.

• HACR Rated
• Interrupting Rating of 10 Kiloampere
• Wire size: 8 to 6 AWG (Copper), 8 to 4 AWG (Aluminum)

Product Highlights

Provides reliable circuit protection for electrical distribution applications. Suitable for use in load centers.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q24000S01
• Country of Origin: Germany

Technical Specifications

• Approval: UL 489, CSA C22.2
• Interrupting Rating: 10 Kiloampere
• Manufacturer Name: Siemens
• Mounting: Plug-In
• Number Of Poles: 2
• Product UPC: 783643237551
• Terminal Type: Load Lug
• Type: Thermal and Fixed Magnetic, Common Trip
• Used On: Loadcenter
• Wire Size: 8 to 6 AWG (Copper), 8 to 4 AWG (Aluminum)
• Brand: SIEMENS
• MPN: Q24000S01
• Country of Origin: Germany
• Voltage Rating: 120/240V
• Amperage Rating: 40A
• Trip Type: Shunt/Thermal Magnetic
• Application: Electrical Distribution Applications
