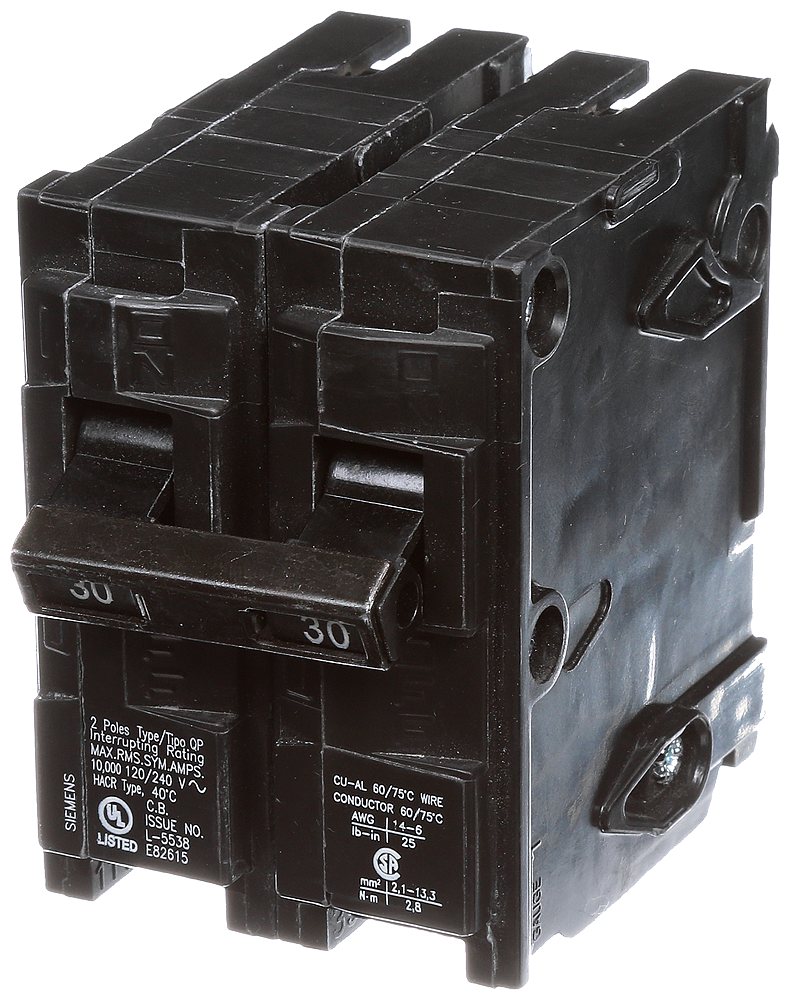

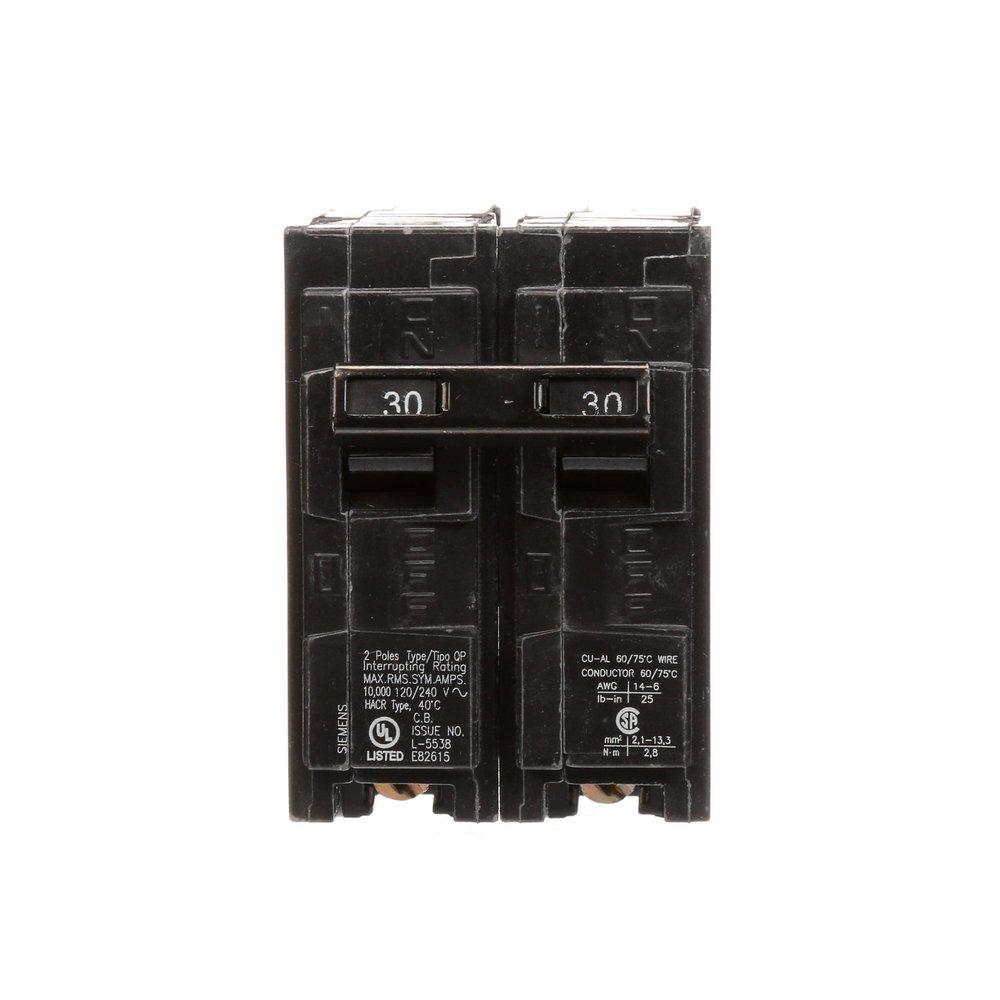

Siemens Q230 QP/MP Circuit Breaker, 120/240 VAC, 30 Amp, 10 kAIC, 2 Poles

Product Description

Siemens Q230 circuit breaker is a two-pole breaker designed for 120/240 VAC systems with a 30 Amp rating and a 10 kA interrupting capacity. This low voltage miniature molded case circuit breaker features INSTA-WIRE technology, which simplifies connections. Suitable for residential and commercial applications, it provides protection against overloads and short circuits.

• Reliable thermal magnetic trip mechanism.
• Plug-In connection type for simple installation.
• Compatible with 14 to 6 AWG copper or aluminum wire.

Product Highlights

This Siemens Q230 circuit breaker is efficient and ideal for air conditioning, heating, and refrigeration applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: Q230

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Wire Size: 14 to 6 AWG
• Dimensions: 3 in L x 3 in W x 2 in H
• Temperature Rating: 40 deg C
