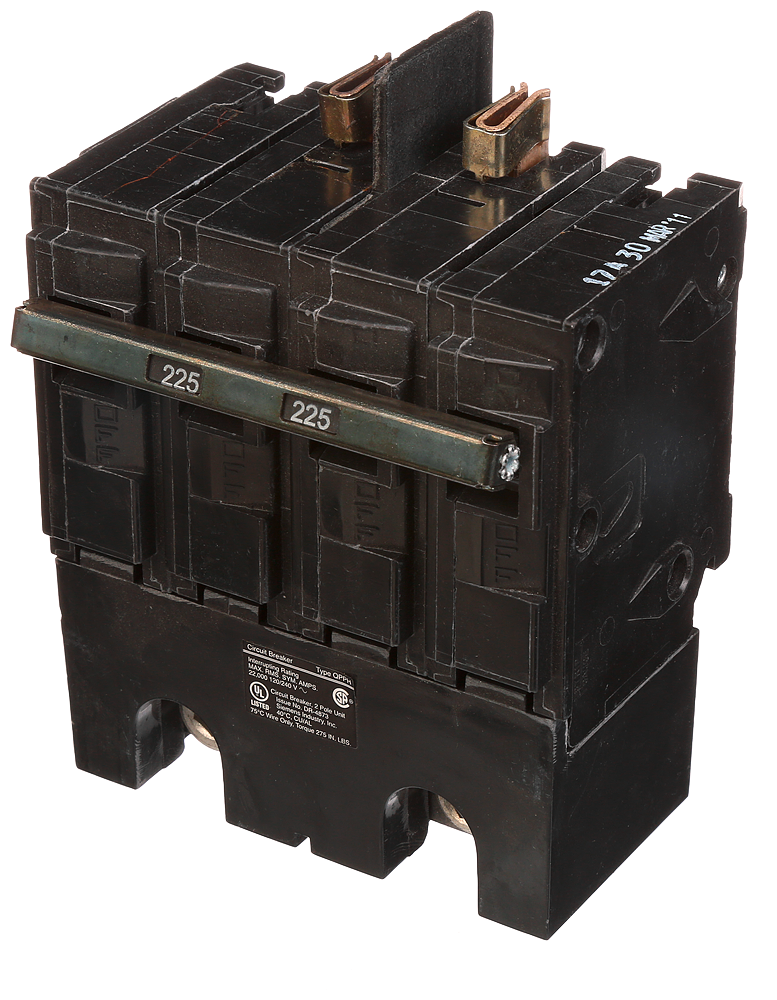

Siemens Q2225BH Breaker 225A 4P 120/240

Product Description

Siemens Q2225BH is a low-voltage residential circuit breaker rated 225 A for 120/240 V systems. It provides overcurrent protection with a thermal-magnetic trip mechanism, a 22 AIC interrupting rating, and plug-in mounting for installation in load center mains and feeders. The unit is intended for electrical distribution and meets UL 489 requirements.

• Thermal-magnetic trip with 22 AIC interrupting rating
• Plug-in connection for load center main and feeder applications; 2-pole configuration
• Rated for 225 A at 120/240 V AC; UL 489 listed

Product Highlights

Low-voltage 225 A, 120/240 V thermal-magnetic breaker with 22 AIC and plug-in mounting for load center distribution.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q2225BH
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: Q2225BH
• Catalog Number: Q2225BH
• Application: Electrical distribution
• Voltage Rating: 120/240 V AC
• Current Rating: 225 A
• Trip Type: Thermal magnetic
• Interrupting Rating: 22 kAIC
• Number of Poles: 2 Pole
• Connection Type: Plug-in
• Terminal Type: Load Lug
• Wire Size: 4/0 AWG (Copper), 300 kcmil (Aluminum)
• Mounting: Plug-In
• Approval / Standard: UL 489
• REACH Compliant: Yes
• Dimensions (W x D x H): 4.000 in x 9 in x 3 in
• Weight: 3.000 lb
• Country of Origin: Mexico
• GTIN: 00783643167520
• UPC: 78364316752
