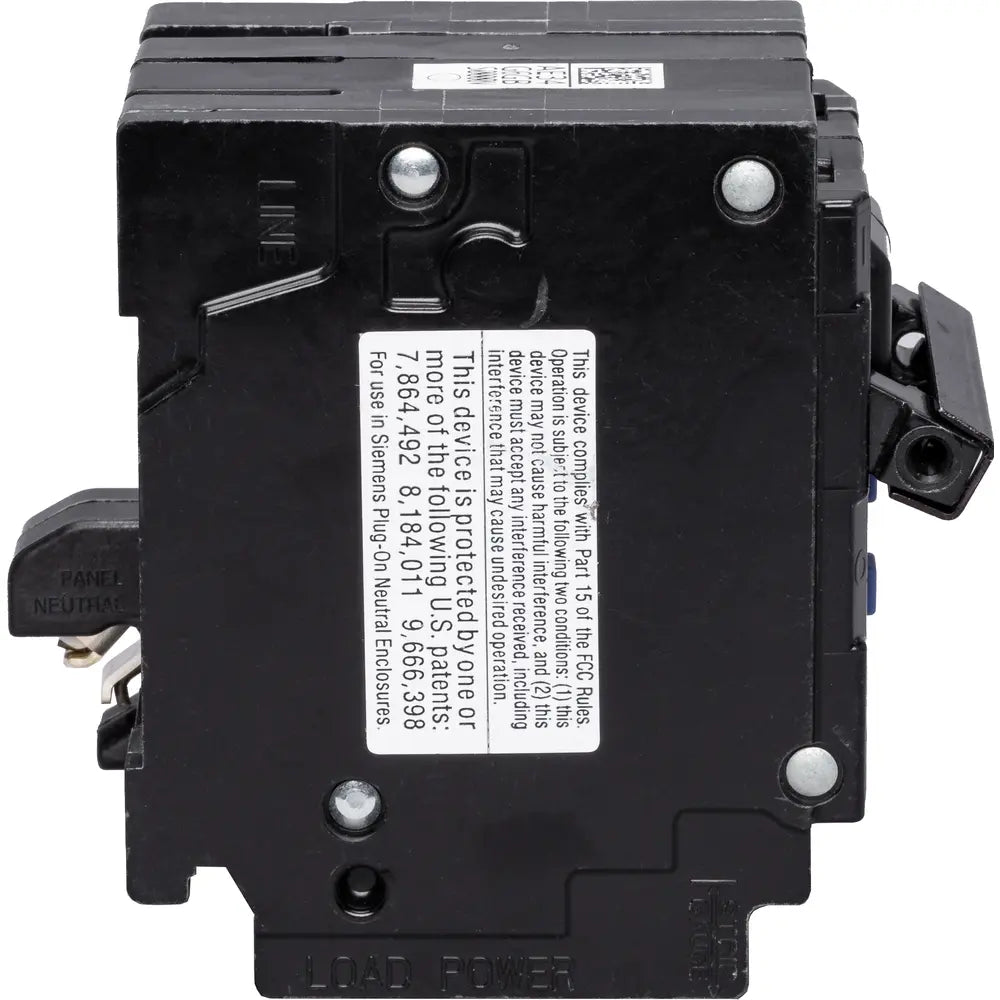

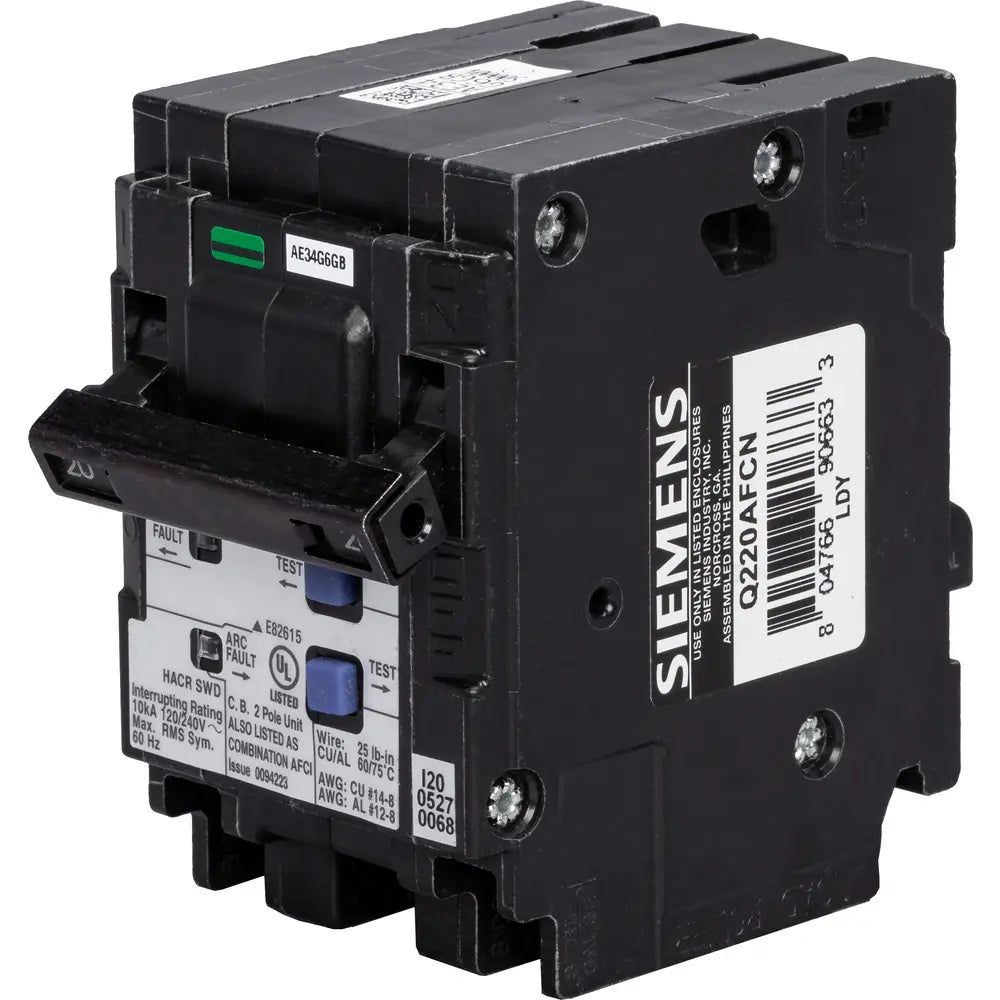

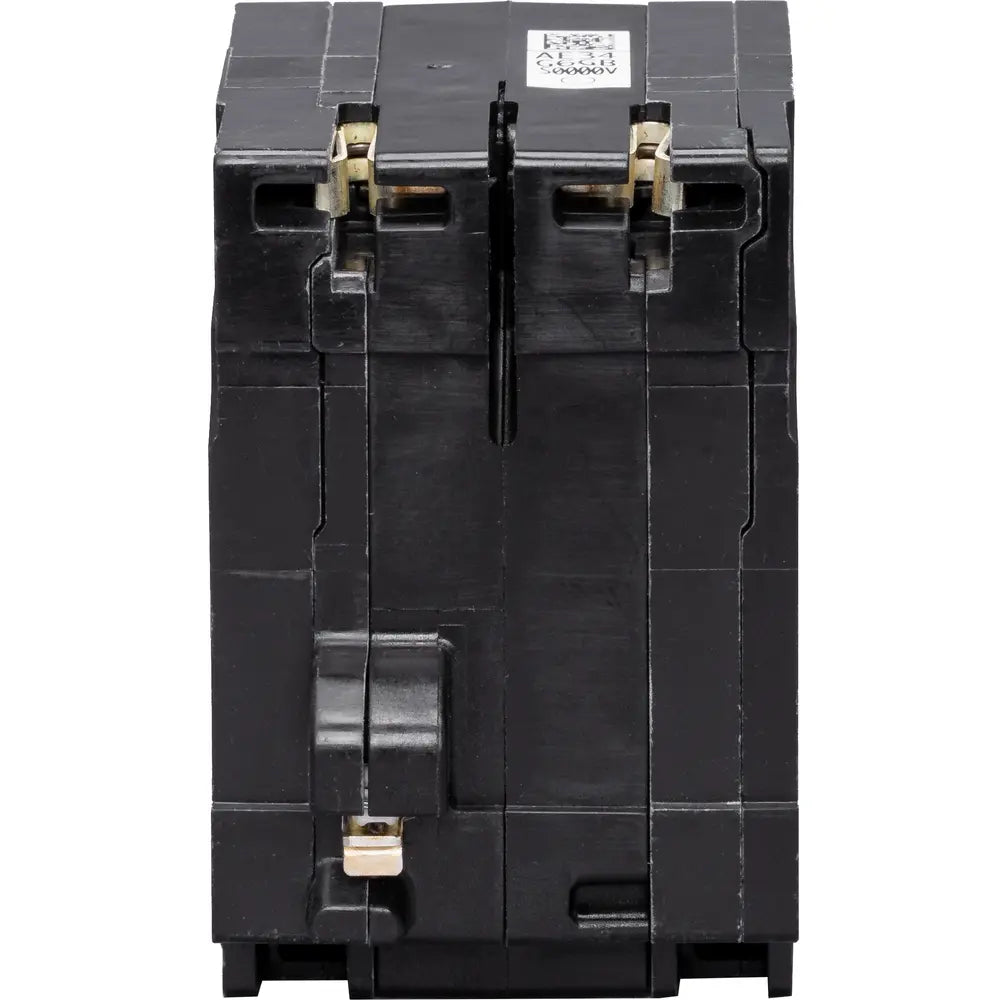

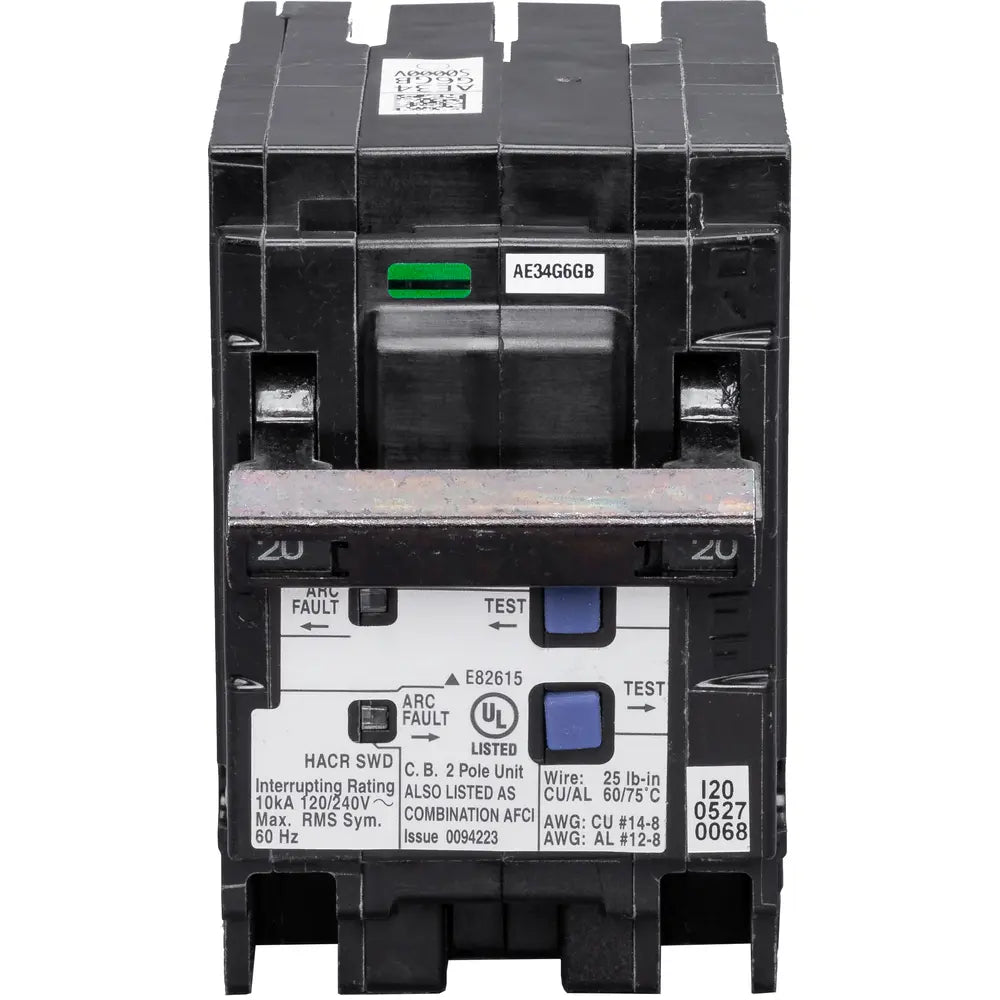

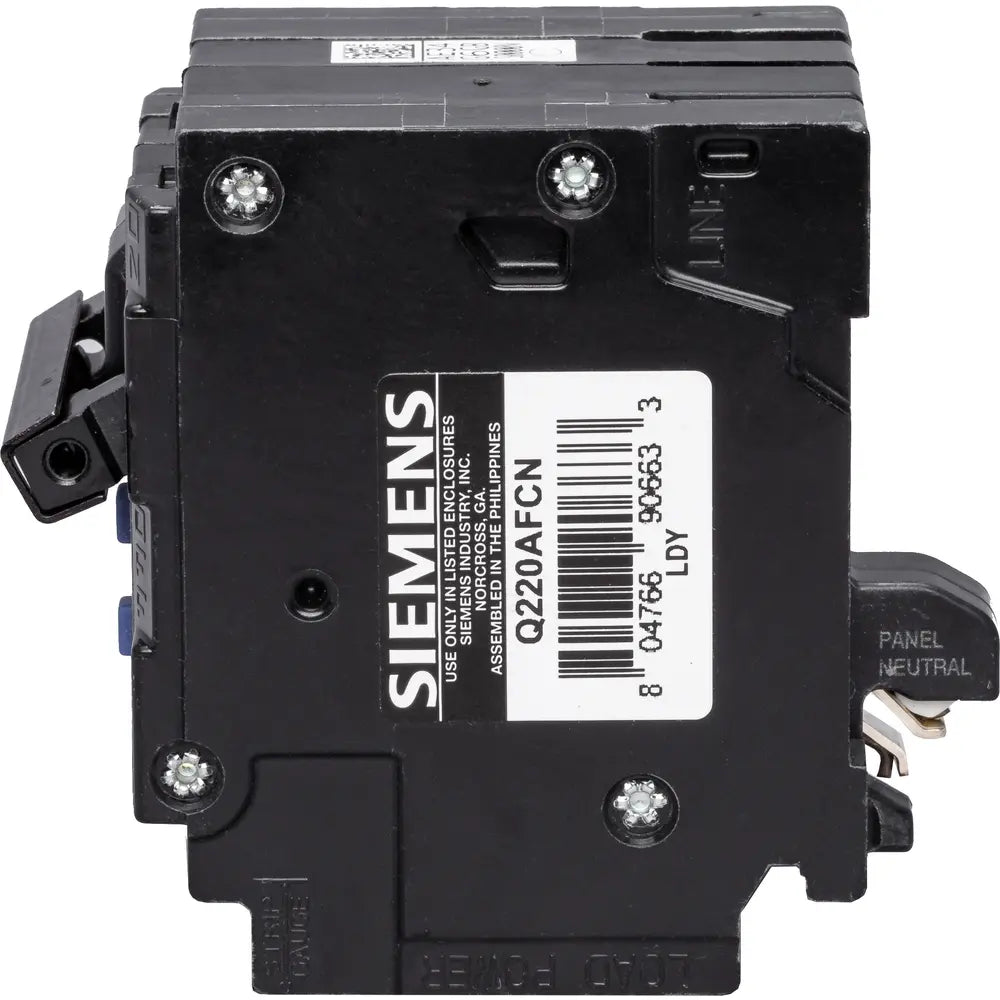

Siemens Q220AFCN Low Voltage AFCI Circuit Breaker, 20A, 120/240V, 2-Pole

Product Description

Siemens Q220AFCN is a low voltage AFCI circuit breaker designed for effective protection in electrical systems. This circuit breaker offers a two-pole configuration with a twenty amp capacity and is rated for 120/240 volts. The AFCI feature helps prevent electrical fires caused by arc faults. The breaker is compliant with UL 489 standards.

• Rated at 20A for two-pole applications
• Trip range set to center for improved safety
• Thermoplastic material ensures durability and longevity

Product Highlights

This breaker is suitable for use in dry locations and applications requiring thermal magnetic trip mechanisms.

Product Information

Standard Information

• Brand: Siemens Industry
• Part Number: 0549-1161

Technical Specifications

• UPC: 804766906633
• Type: Combo AF Breaker
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Interrupt Rating: 10 kAIC
• Depth: 3.15 Inches
• Width: 1.969 Inches
• Height: 5.118 Inches
• Weight: 0.683 Pounds
• Trip Type: Thermal Magnetic
• Connection: Terminal
• Environmental Conditions: Dry Location
• Country of Origin: PH
