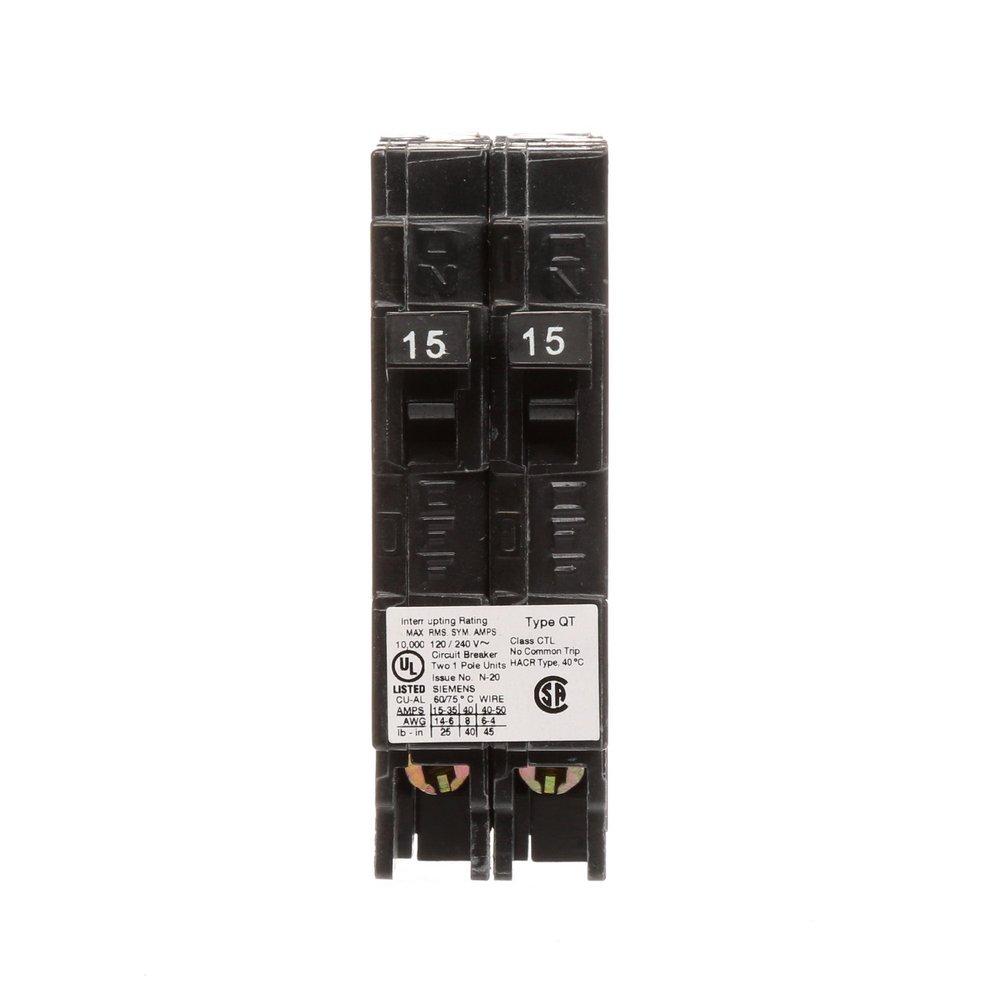

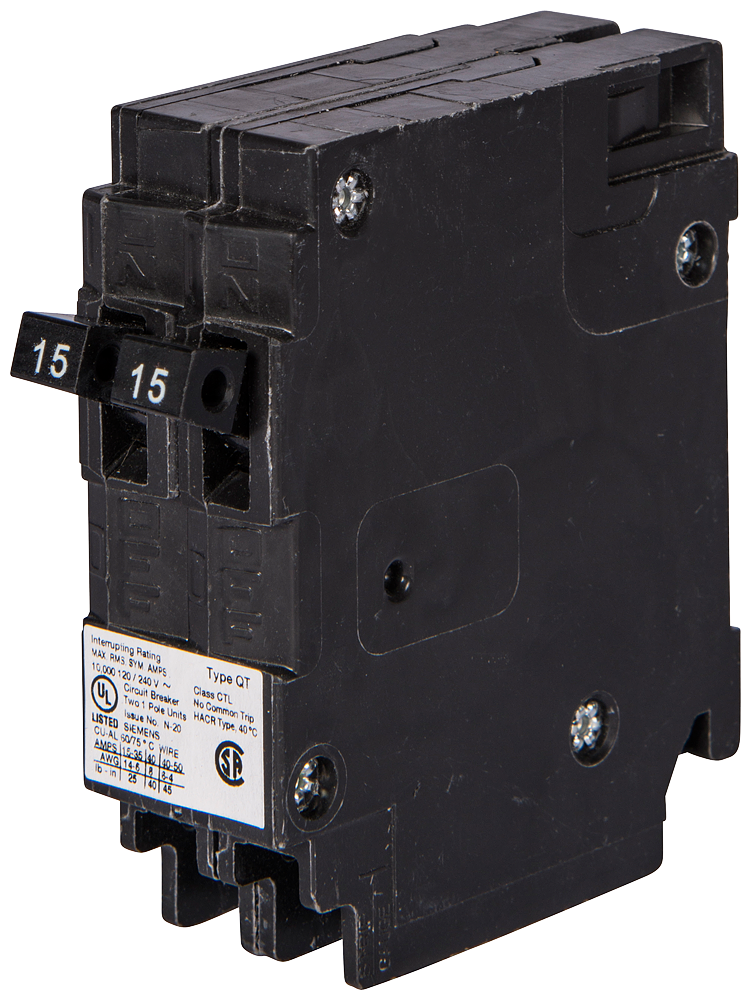

Siemens Q1515 Breaker Ckt Case Mld 120VAC 15A 10KA

Product Description

The Siemens Q1515 is a molded case circuit breaker designed for efficient power distribution. Rated for one hundred twenty volts at fifteen amps and with a ten kiloampere interrupt rating, it ensures reliable performance in residential applications. The Q1515 model is suitable for plugging into Siemens load centers and is commonly used where space is limited.

• Single pole operation with a fifteen ampere rating
• Thermal/magnetic trip for enhanced protection
• Plug-in connection for easy installation and removal

Product Highlights

This product is designed for residential power distribution. It is ideal for use in Siemens EQ, Ultimate, ITE, and Gould load centers.

Product Information

Standard Information

• Brand: Siemens
• MPN: Q1515

Technical Specifications

• Type: QT Duplex Low Voltage Miniature
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Connection Type: Plug-In
• Number of Poles: 1
• Dimensions: 3 inches L x 1 inch W x 3 inches H
• Wire Size: 14 to 6 AWG
