Product Description

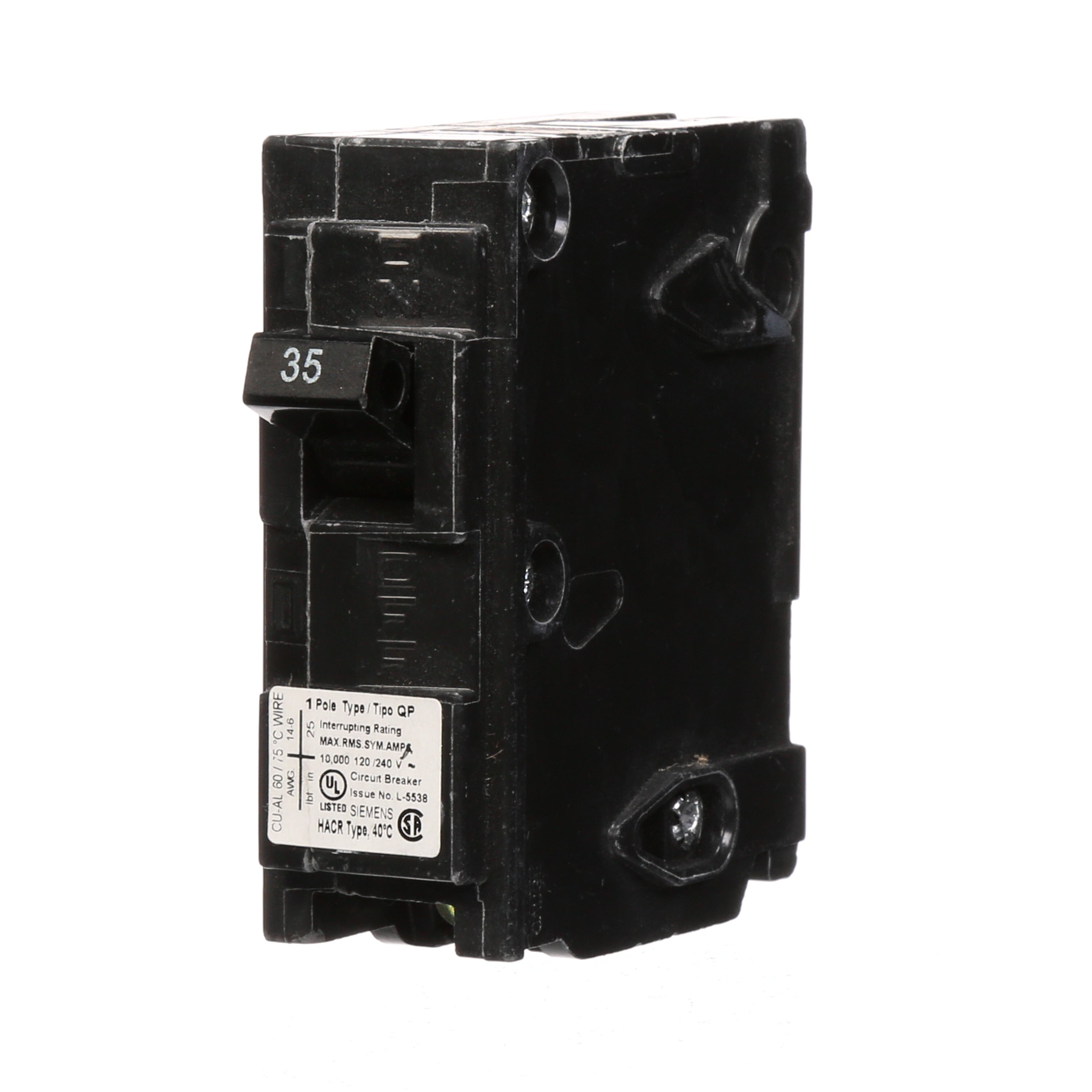

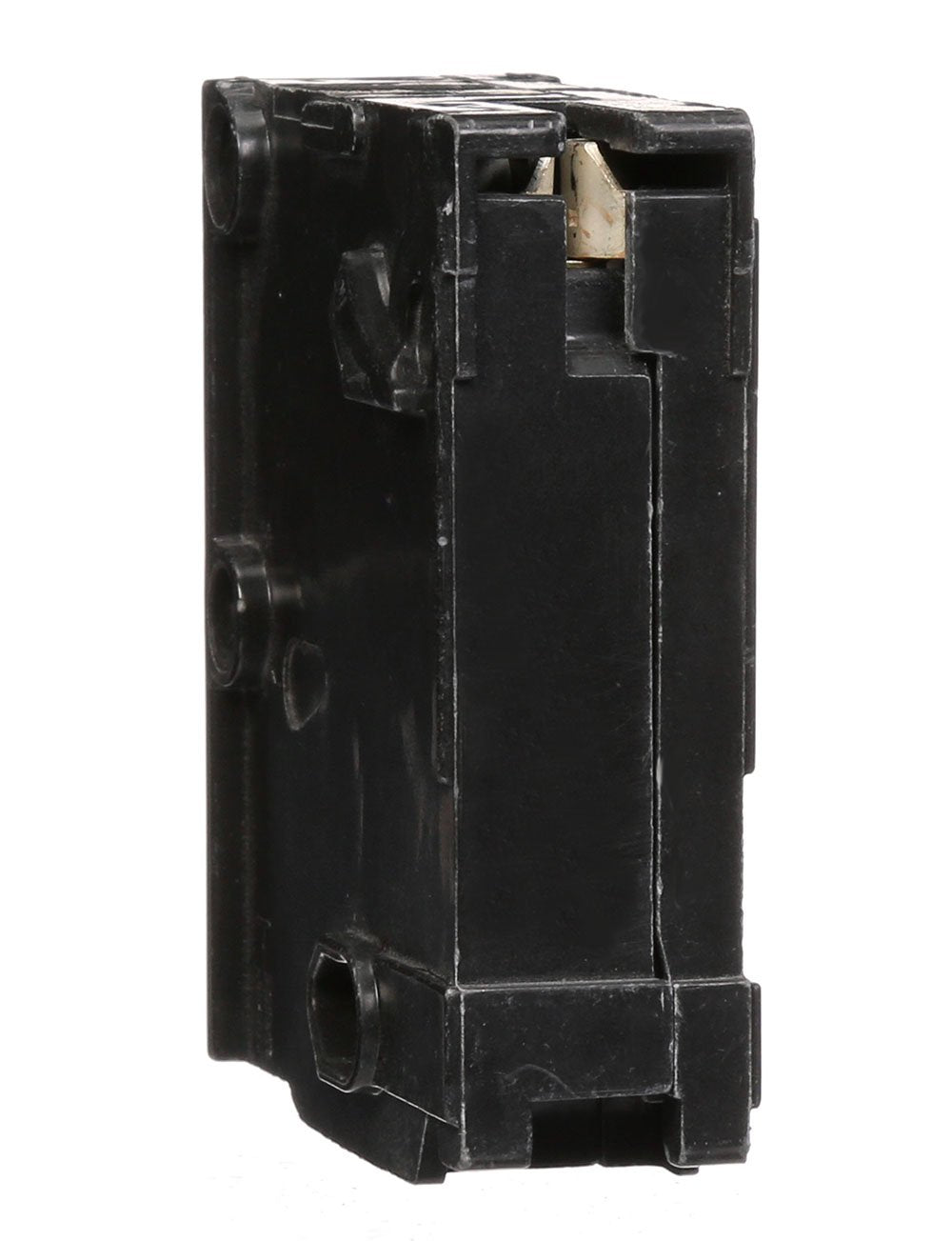

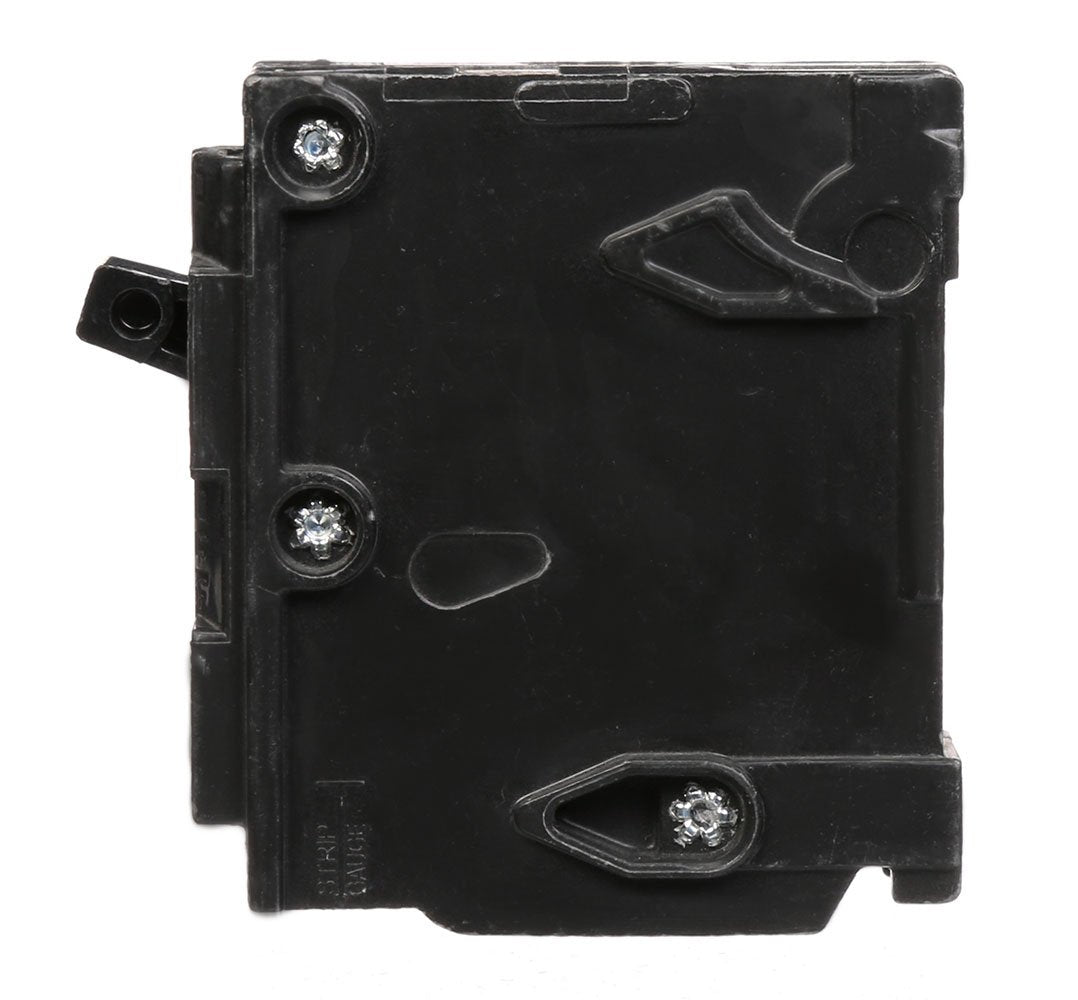

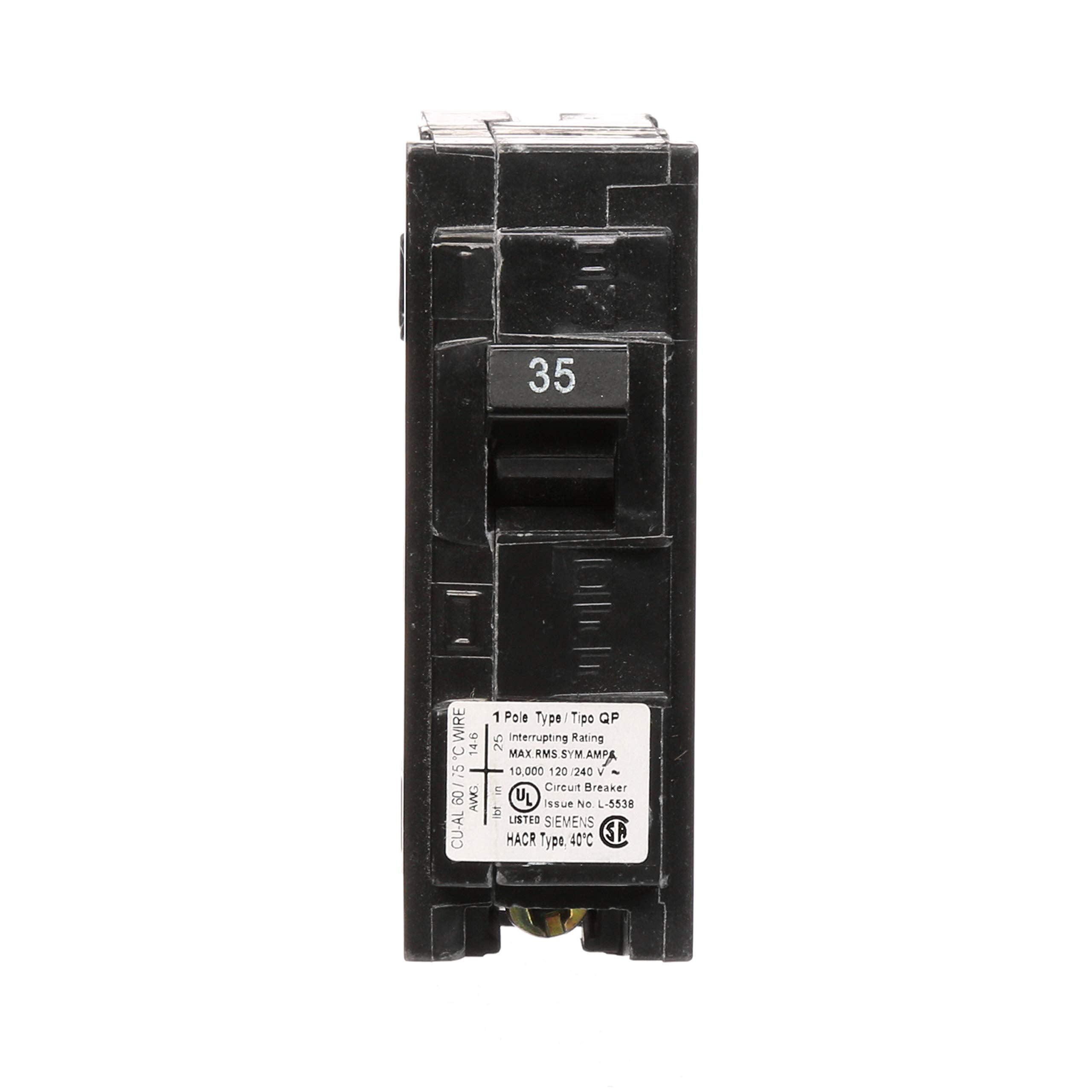

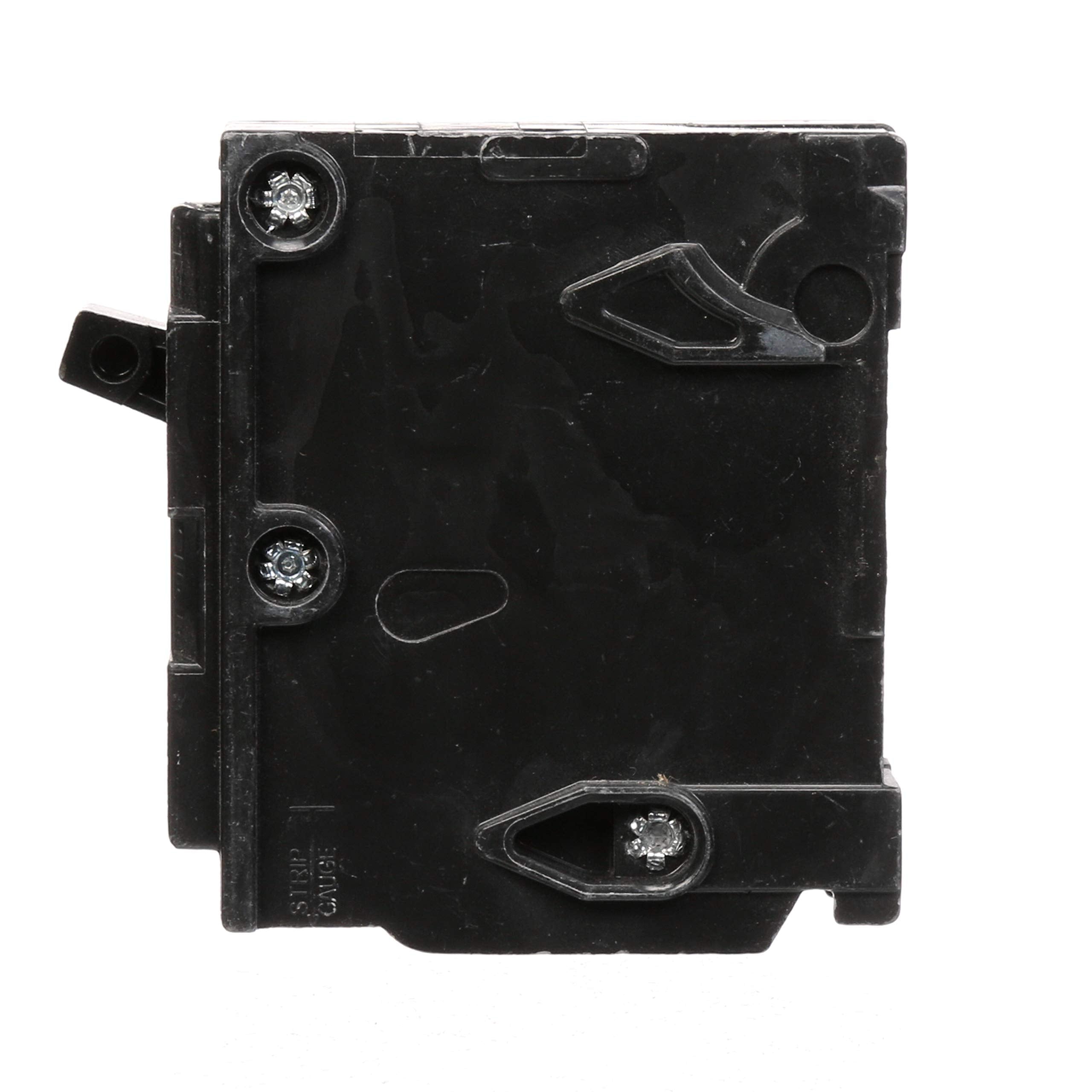

The SIEMENS Q135 is a low voltage residential circuit breaker. These miniature thermal magnetic circuit breakers are Type QP/MP 1-pole 10k and are for circuit protection load center mains and feeders. It is rated for 35-Amp and 120-Volt and is plug in style for use in Siemens panels.
- Thermal Magnetic Trip Range
- 10 kAIC interrupt rating
- Plug-in connection type
Product Highlights
The SIEMENS Q135 circuit breaker provides overload and short-circuit protection for your home's electrical system.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: Q135
-
Country of Origin: Mexico
Technical Specifications
-
Type: QP/MP
-
Brand: Siemens
-
Frame: QP(125A)
-
Voltage: 120 Volt
-
Amperage: 35 Amp
-
Trip Type: THERMAL-MAGNETIC
-
Trip Range: Thermal Magnetic
-
Product UPC: 78364315624
-
12-Digit UPC: 783643156241
-
Applications: ELECTRICALDISTRIBUTION
-
TC Connection: PLUG-IN
-
Conductor Size: 12-6 AWG (AL)/14-6 AWG (CU)
-
Connection Type: Plug-In/Lug-In/Lug-Out
-
Number of Poles: 1 Pole
-
Interrupt Rating: 10 AIC
-
Catalog Number: Q135
-
Manufacturer: Siemens
-
Standard: ULLISTED/CSA/NOMCERTIFIED
-
GTIN: 00783643156241
-
Item Type: QP
-
Voltage Rating: 120V
-
Amperage Rating: 35 A
-
Number Of Poles: 1P
-
Frequency Rating: 50/60 Hz
-
Phase: 1
-
Temperature Rating: 40 deg C
-
Wire Size: 14 to 6 AWG, 12 to 6 AWG
-
Model / MPN: Q135
-
Maximum Amperage (A): 35 A
-
Family: Q / QP Series
-
Authentic: Authentic Siemens Product
-
Approval: CSA Approved
-
Maximum Amperage: 35A
-
Poles: 1
-
Current Rating: 35 Amps
-
Circuit Breaker Type: Standard
-
Mounting Type: Plug-In Mount
-
Part Number #: Q135
-
SKU #: 20234
-
UNSPSC: 39121601
-
Amps: 35
-
Volts: 120
