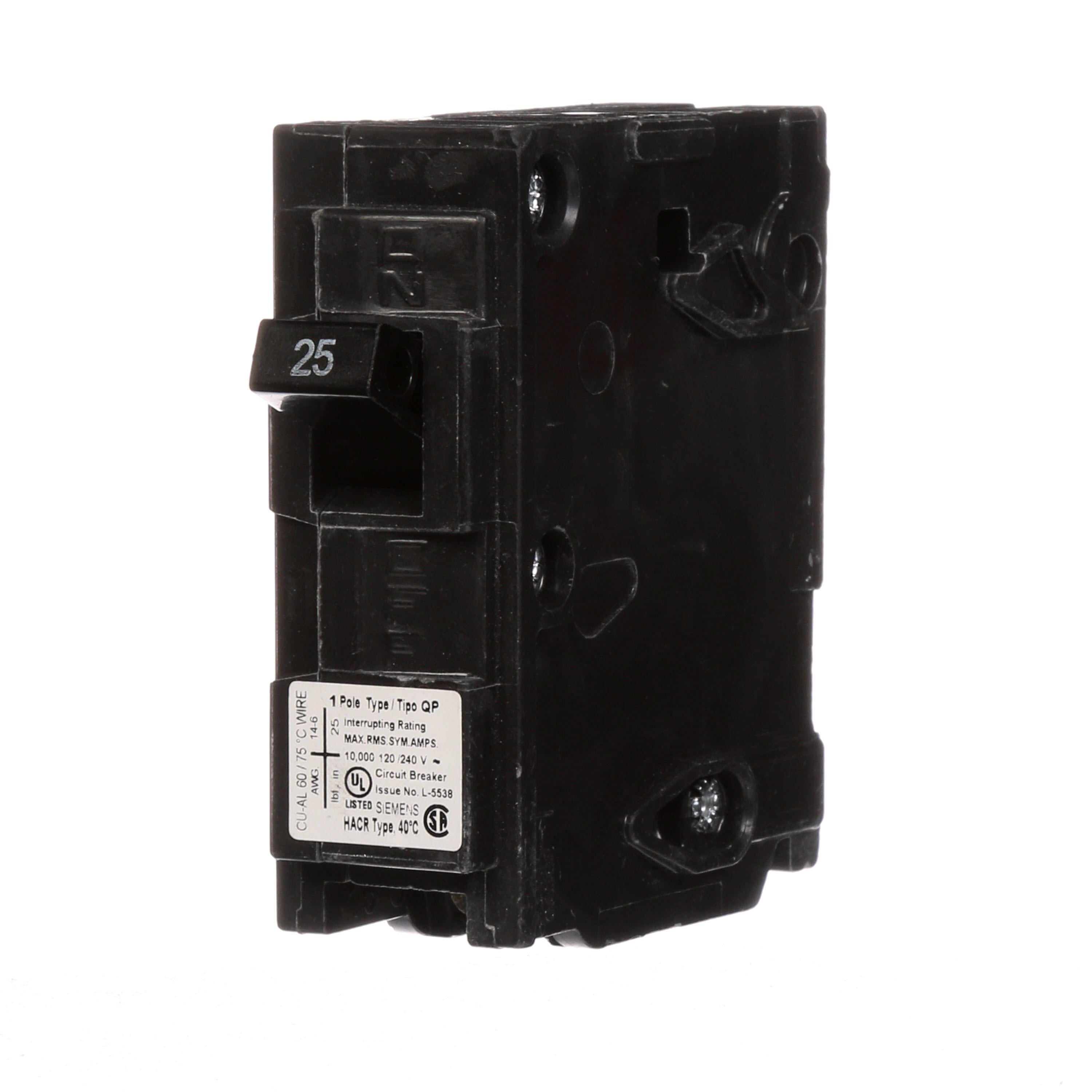

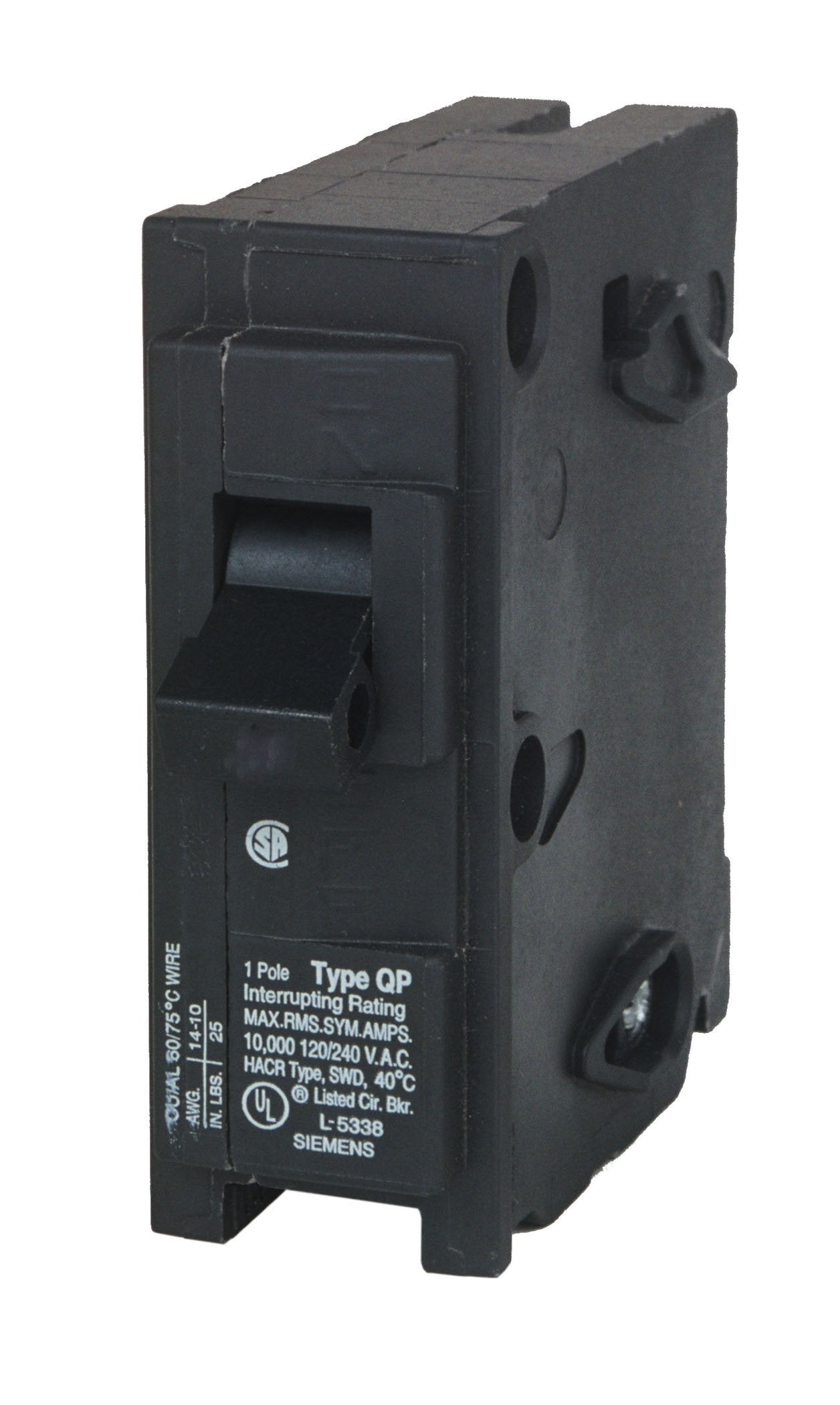

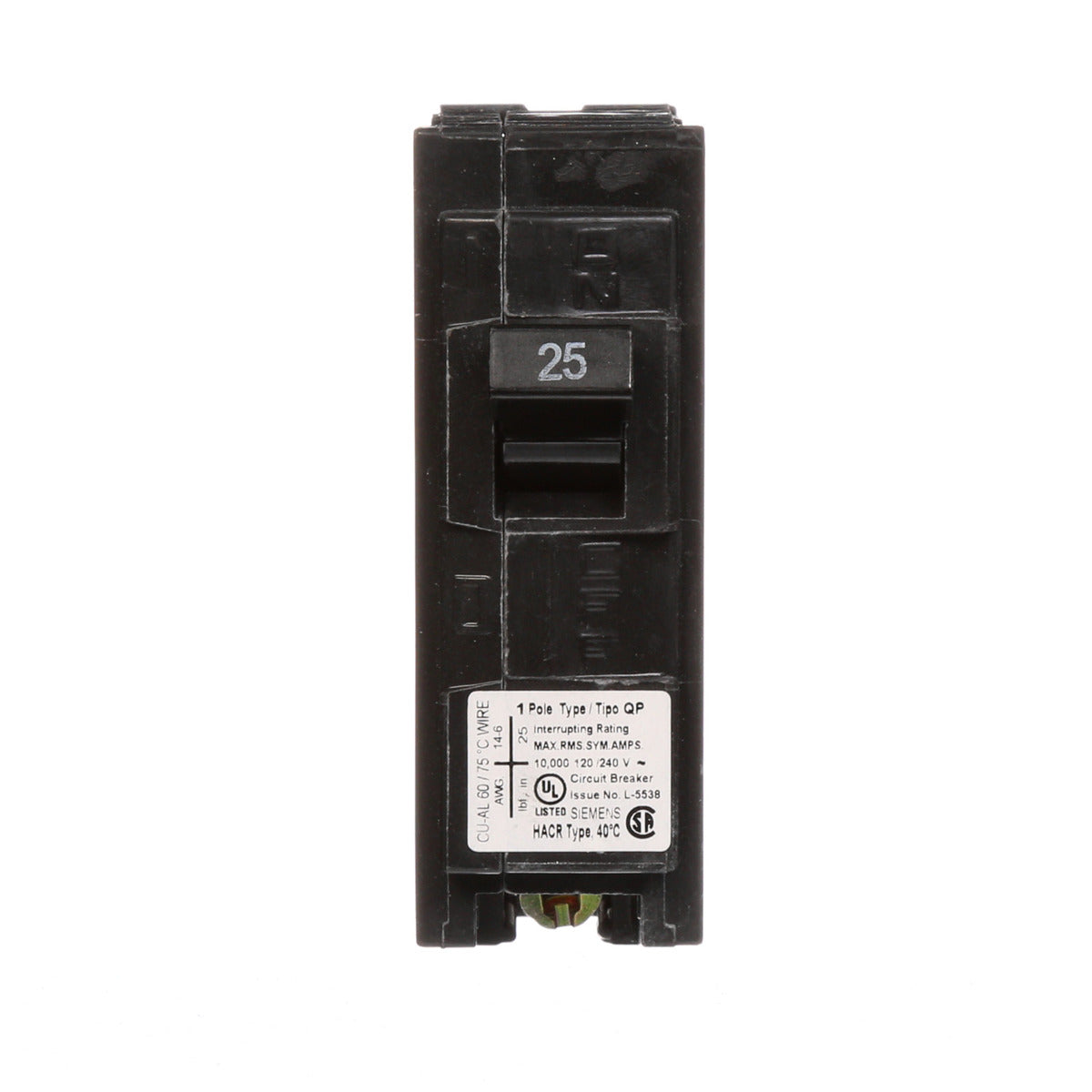

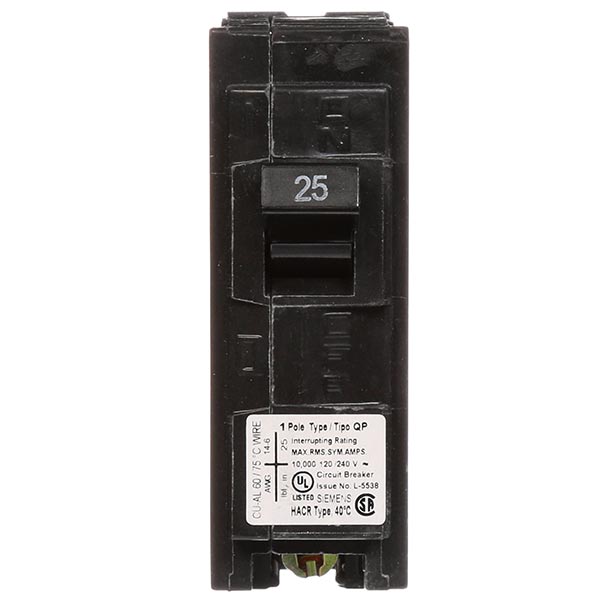

Siemens Q125 1-Pole 120 VAC 25 Amp 10 kA Plug-In Circuit Breaker

Product Description

The Siemens Q125 is a type QP molded case circuit breaker. This 1-pole breaker is rated for 120V, 25A, with a 10kA interrupt rating and a plug-in connection. It is designed for electrical distribution applications and provides thermal magnetic trip functionality. This circuit breaker is 1 Inch per Pole.

• 1-Pole configuration
• Rated for 120V and 25A
• Features a 10kA interrupt rating

Product Highlights

The Siemens Q125 circuit breaker is ideal for residential electrical distribution with a plug-in connection and thermal magnetic trip.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q125
• Country of Origin: Mexico

Technical Specifications

• Type: QP/MP
• Brand: Siemens
• Frame: QP(125A)
• Current: 25 Amp
• Voltage: 120 Volt
• Amperage: 25 Amp
• Trip Type: Thermal Magnetic
• Applications: Electrical Distribution
• Connection Type: Plug-In
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Conductor Size: 12-6 AWG (AL)/14-6 AWG (CU)
• Country of Origin: Mexico
• Standard: UL Listed/CSA/NOM Certified
• Item Type: QP
• Voltage Rating: 120 VAC
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 deg C
• Phase: 1
• Wire Size: 14 to 6 AWG, 12 to 6 AWG
