Product Description

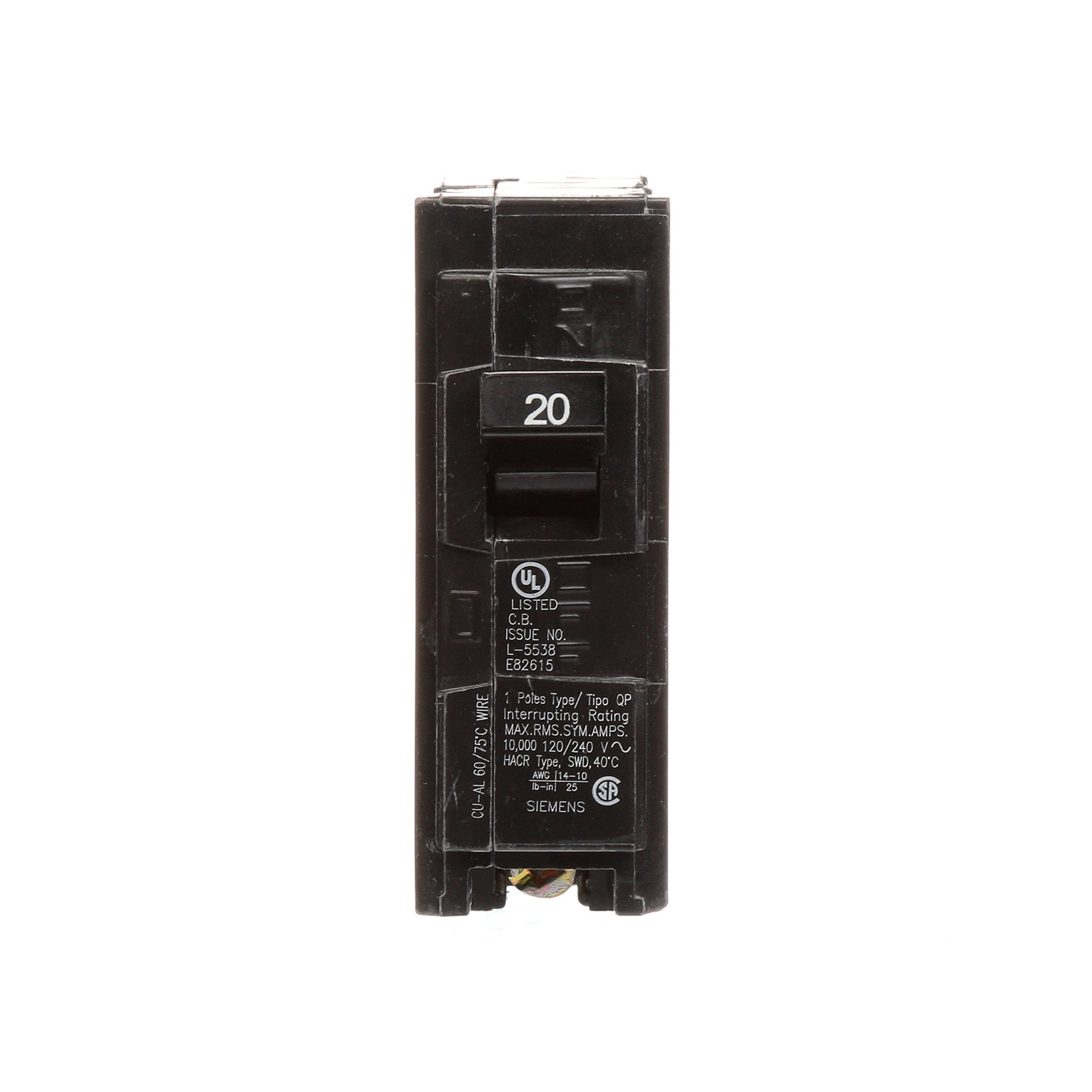

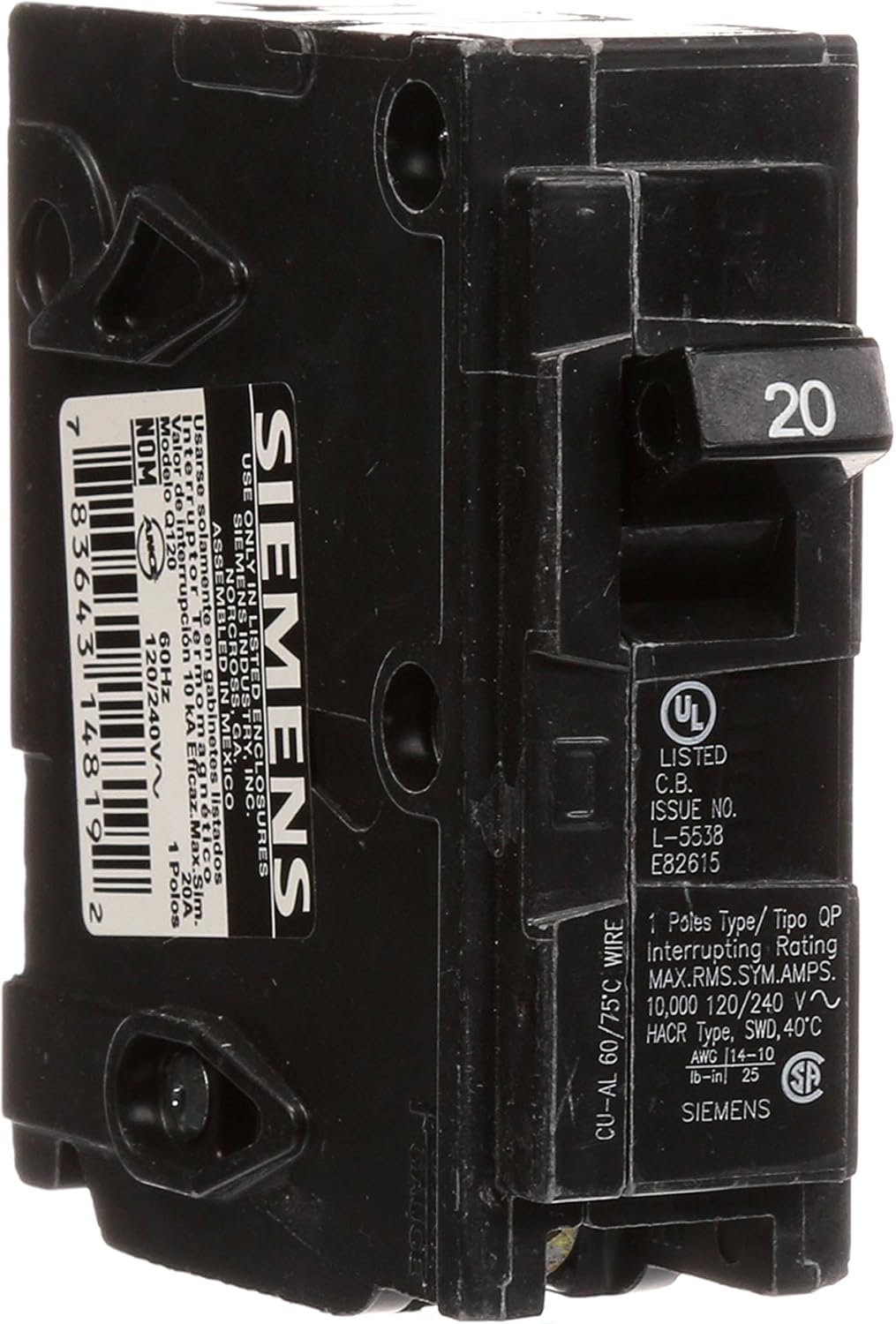

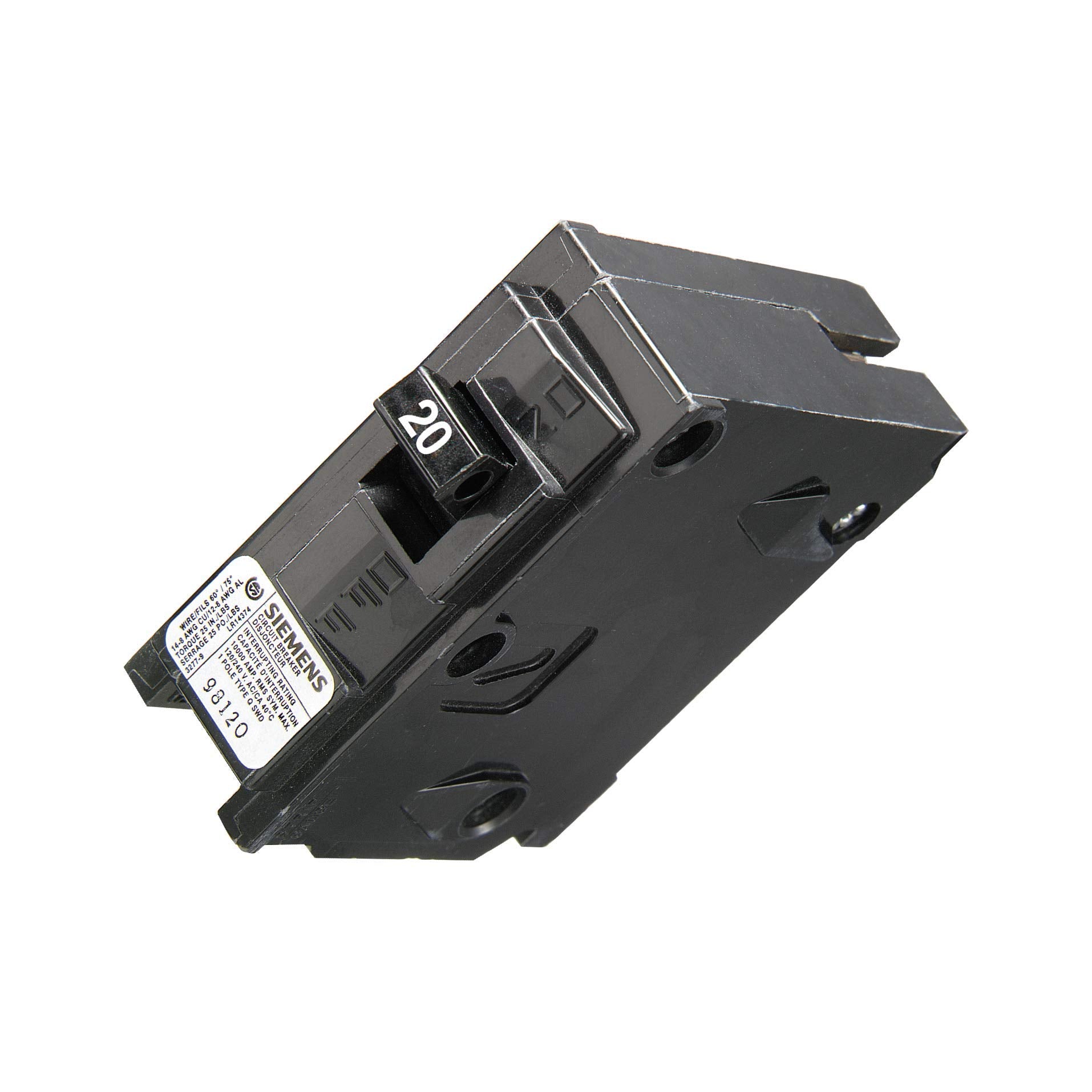

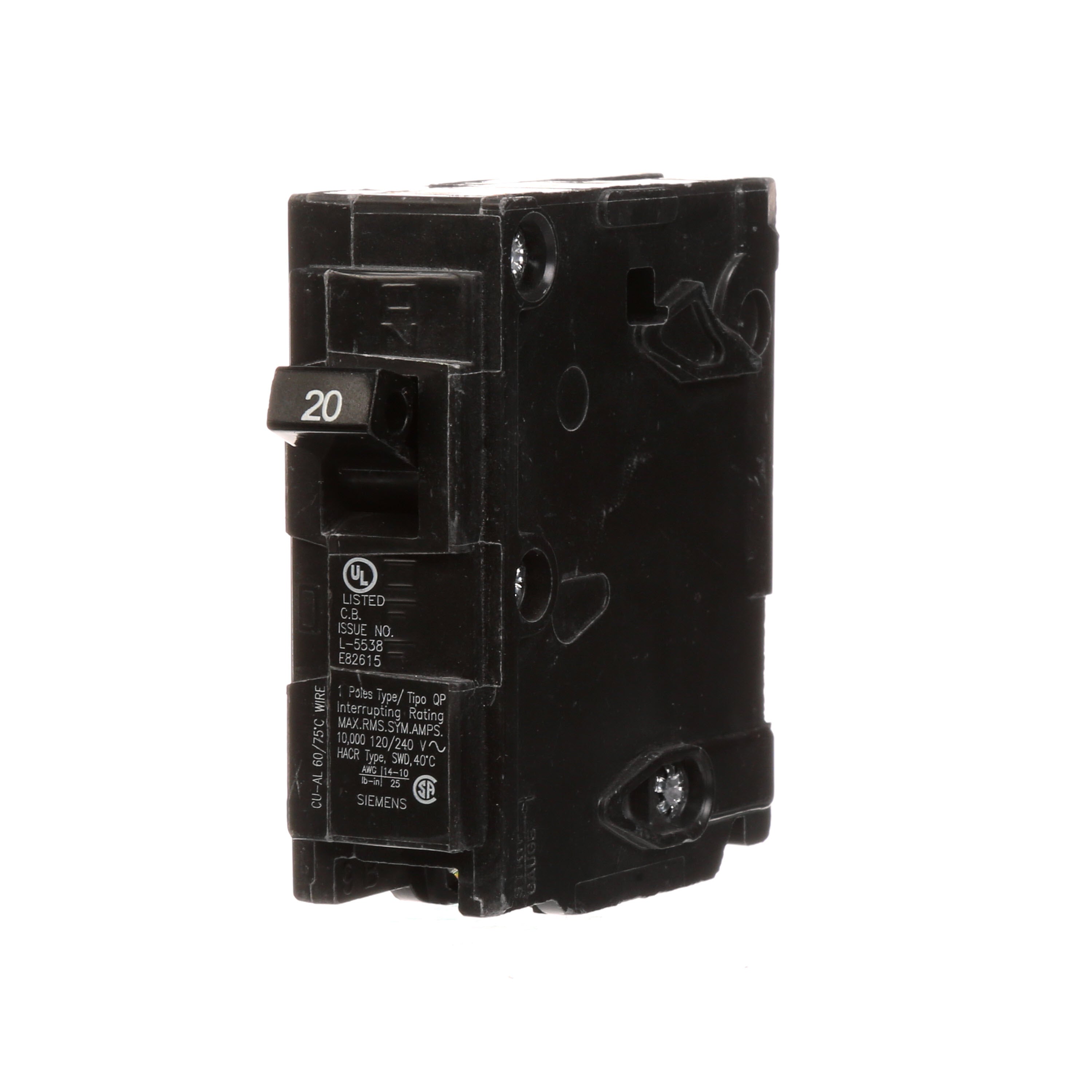

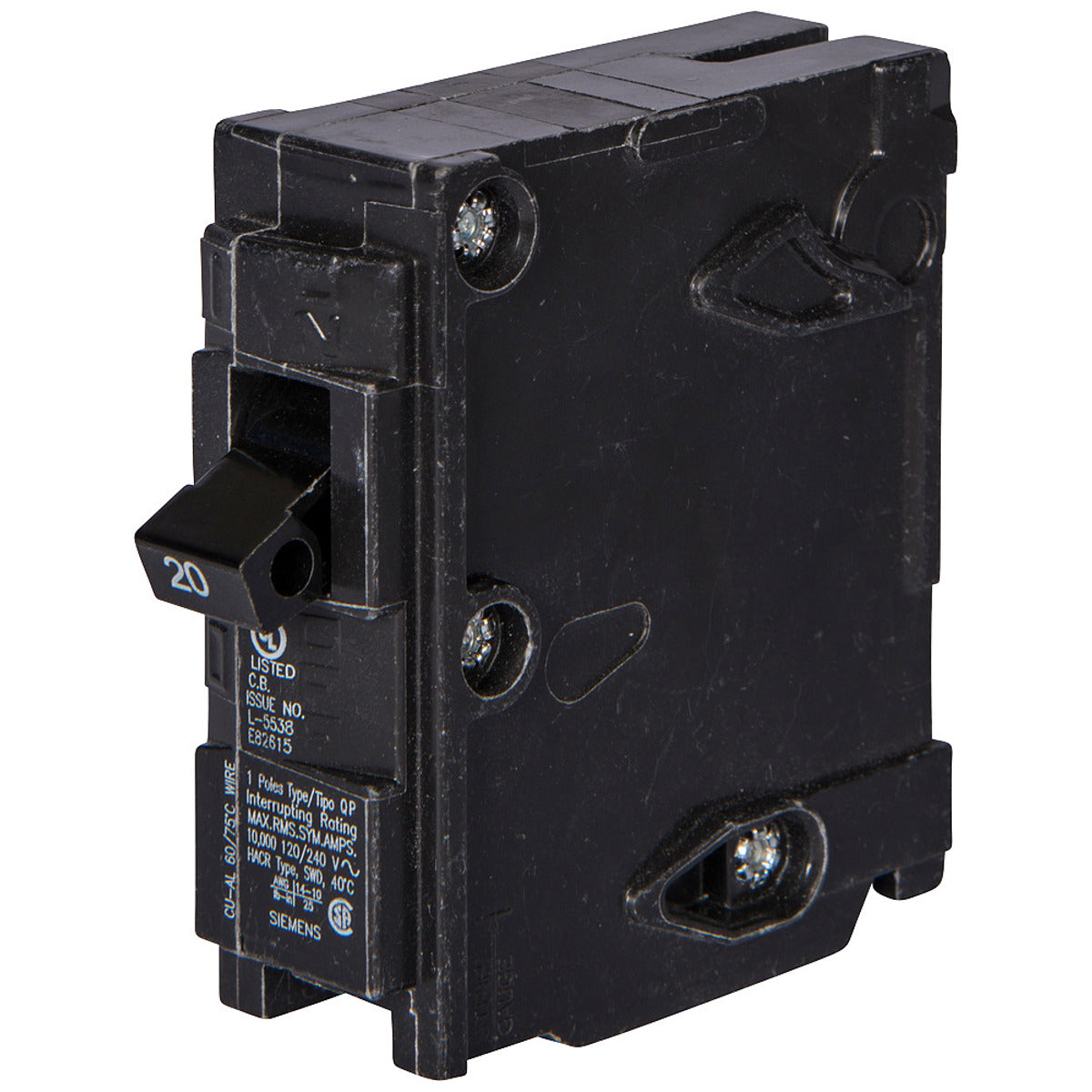

The Siemens Q120 is a 20-Amp single pole type QP circuit breaker. This circuit breaker is designed for overload and short-circuit protection of your electrical system. It provides easy plug-in connections in Siemens enclosures and features time-saving insta-wire. Compatible with Siemens PL and ES series load centers.
- Single pole, 20 Amp, 120V type QP Circuit Breaker
- 10,000 AIC interrupting rating
- Compatible with Siemens PL and ES series load centers
Product Highlights
This Siemens circuit breaker provides overload and short-circuit protection with easy plug-in connections and insta-wire feature.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: Q120
-
Country of Origin: Mexico

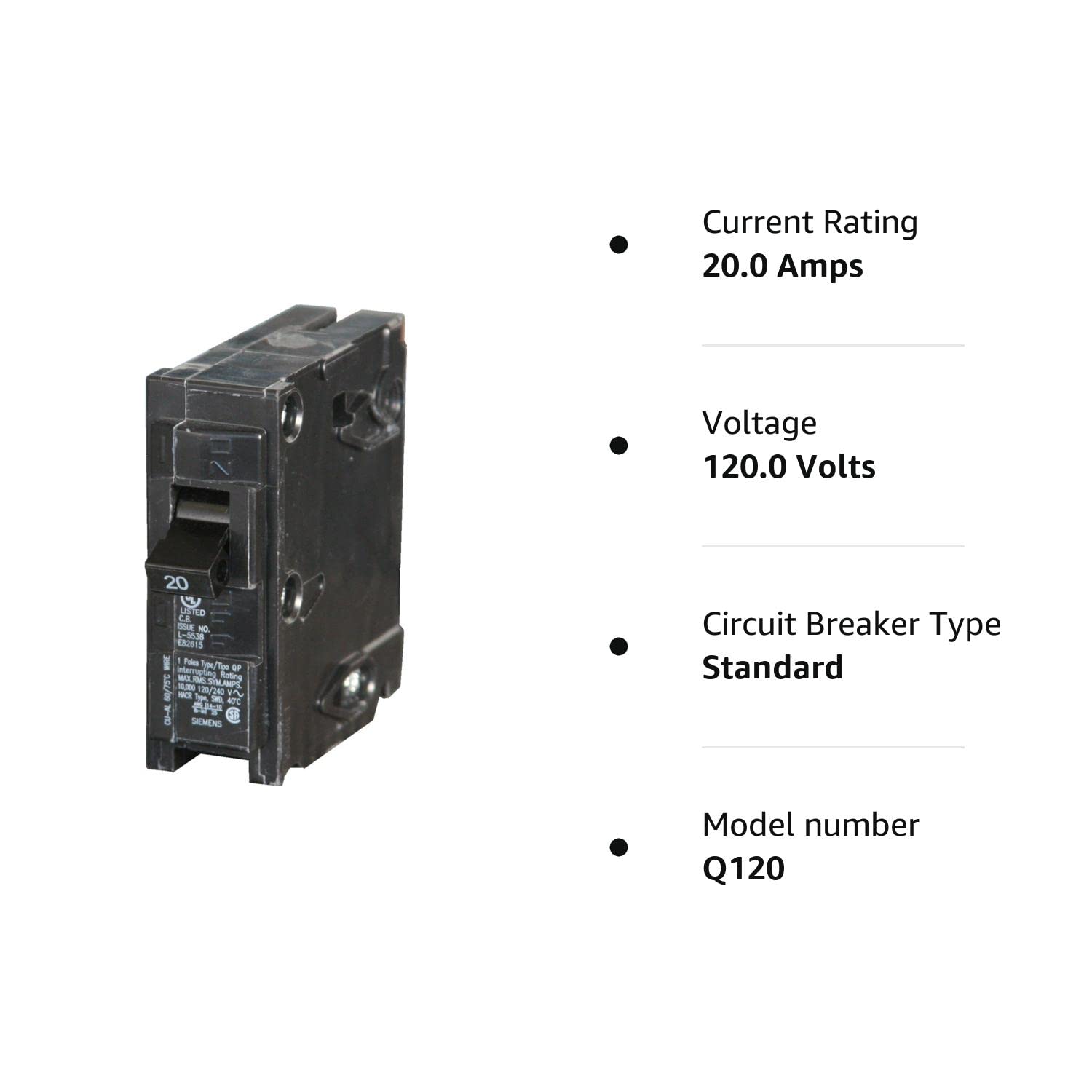

Technical Specifications
-
Voltage: 120 Volt
-
Material: Plastic
-
Power Source: Wired Electric
-
Mounting Type: Plug-In
-
Current Rating: 20 Amps
-
Number Of Poles: 1 Pole
-
Amperage Capacity: 20 Amps
-
Included Components: Parallax Power Components ITEQ120 1 Pole 20 Amp Circuit Breaker
-
Circuit Breaker Type: QP Circuit Breaker
-
Brand: SIEMENS
-
Item model number: Q120
-
Approval: UL 489, CSA C22.2
-
Interrupting Rating: 10 Kiloamp
-
Manufacturer Name: Siemens
-
Mounting: Plug-In
-
Terminal Type: Load Lug
-
Type: Thermal and Fixed Magnetic
-
Used On: Load Center
-
Wire Size: 14 to 6 AWG (Copper/Aluminum)
-
Amperage: 20 Amp
-
Trip Type: Thermal/Magnetic
-
Frequency: 50/60 Hz
-
Frame Type: QP/MP Frame
-
Phase: 1 ph
-
Connection: Plug-In Connection
-
Enclosure: NEMA 1/3R Enclosure
-
Operating Temperature: 40 deg C
-
Size: 20 Amp
-
Product Type: CIRCUIT_BREAKER
-
Manufacturer: Siemens -HI
-
Product Group: Home Improvement
-
AC Voltage Rating: 120V AC
-
DC Voltage Rating: Not Rated
-
Circuit Breaker Actuator: Toggle
-
Circuit Breaker Mounting Style: Plug In
-
Compatible Panelboard/Load Center Series: EQ
-
Series: Q
-
Max. AIR Rating: 10kA at 120V AC
-
For Use With: Siemens EQ Load Centers
-
Terminal Connection: Lug
-
Frame Size: 125A/QP
-
Length: 3.5 in
-
Width: 1.3 in
-
Depth: 3.15 in
-
Min. Wire Size: 14 AWG
-
Max. Wire Size: 10 AWG
-
Amperage Rating: 20 A
-
Application: ELECTRICALDISTRIBUTION
-
Voltage Rating: 120V
-
Special Features: 10kAINTERRUPT
-
Standard: ULLISTED/CSA/NOMCERTIFIED
-
Applications: Electrical Distribution
-
Conductor Size: 12-10 AWG (AL)/14-12 AWG (CU)
-
Current: 20 Amp
-
Trip Range: Thermal Magnetic
-
Height: 3-1/2 Inch
-
Maximum Amperage (A): 20 A
-
Category: Circuit Breaker
-
Weight: 0.245 lb
