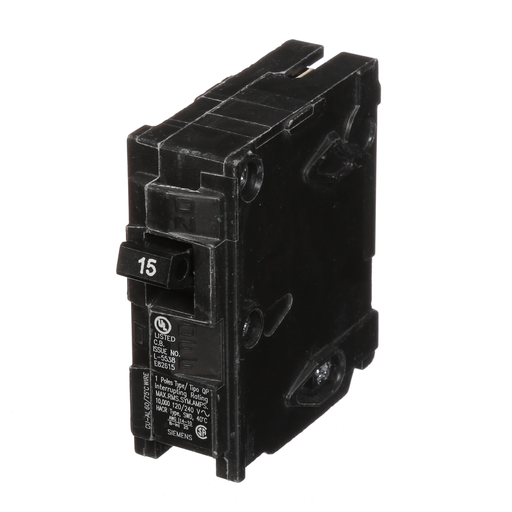

Siemens Q115H BREAKER 15A 1P 120

Product Description

The Siemens Q115H is a low voltage residential circuit breaker designed for protecting electrical circuits. This miniature thermal magnetic circuit breaker is rated for 15 Amps and operates at 120 Volts. The Q115H is suitable for various electrical distribution applications, including load center mains and feeders.

• Type: QP/MP
• Number of Poles: 1P
• Trip Type: Thermal Magnetic

Product Highlights

The Siemens Q115H breaker offers reliable circuit protection with a 22 kA interrupt rating, ensuring safety in residential installations.

Product Information

Standard Information

• Application: Electrical Distribution
• Standard: UL 489

Technical Specifications

• Voltage Rating: 120 Volt
• Amperage Rating: 15 Amp
• Interrupt Rating: 22 AIC
• Depth: 3 Inch
• Width: 4.000 Inch
• Height: 3-1/2 Inch
• Length: 1.3 Inch
• Weight: 0.295 lb
• Connection Type: Plug-In
• Conductor Size: 12-10 AWG (AL)/14-12 AWG (CU)
