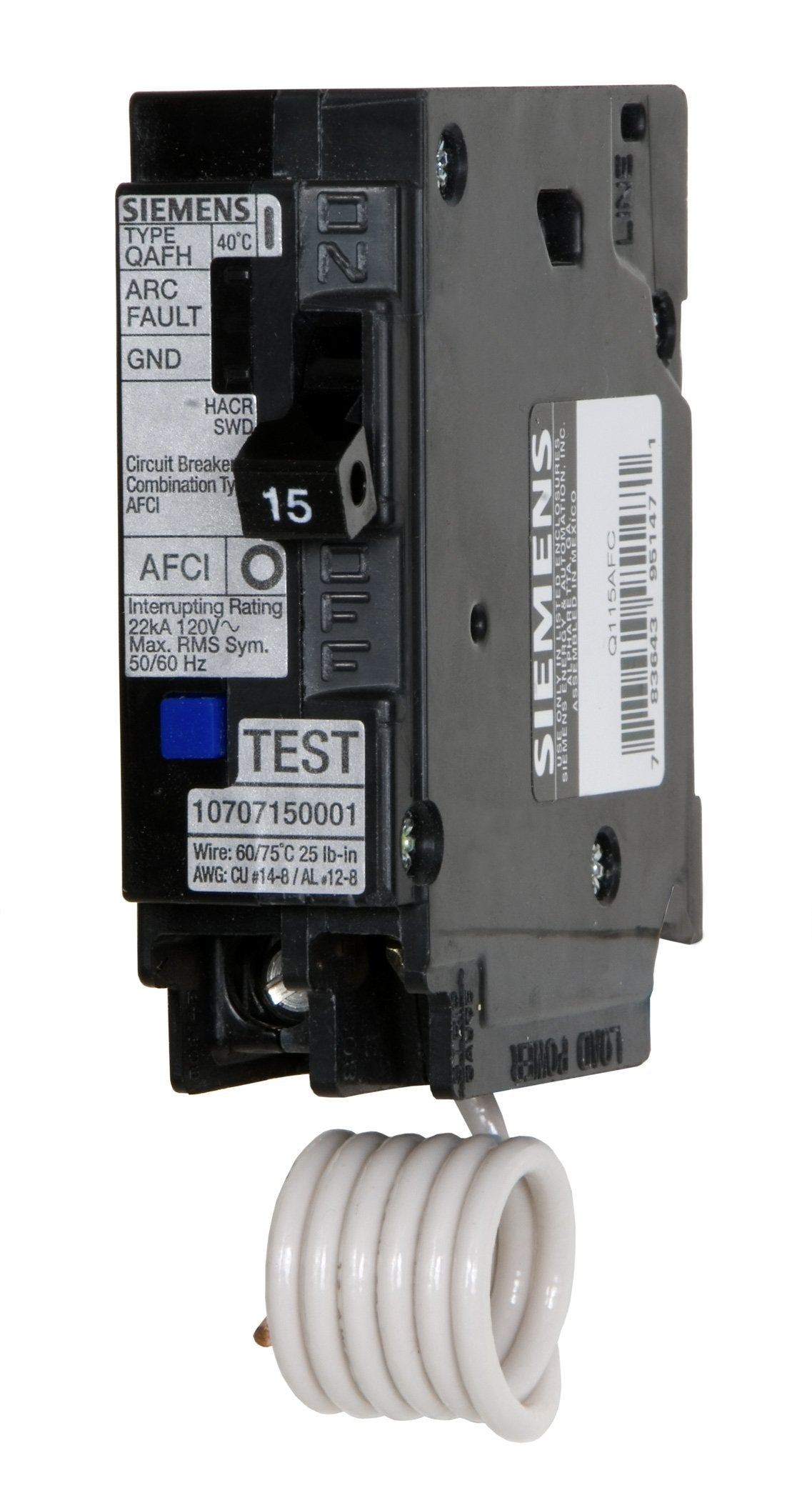

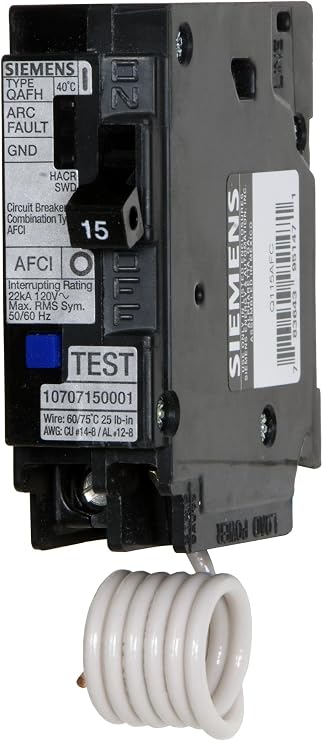

Siemens Q115AFC Arc Fault Circuit Interrupter 15 Amp 120 VAC (1-Pole)

Product Description

Siemens Q115AFC is a single-pole arc-fault circuit interrupter (AFCI) rated 15 A at 120 VAC with a 10 kA interrupting capacity for residential circuit protection. The plug-on, combination-type AFCI detects parallel and series arcing, uses a pigtail neutral connection, and employs thermal-magnetic trip technology with an LED trip indicator. It fits Siemens and Murray load centers and carries UL and CSA approvals with HACR and SWD ratings.

• Single-pole combination AFCI, 15 A at 120 VAC, 10 kA interrupting capacity
• Plug-on mounting with pigtail neutral; fits Siemens and Murray load centers
• Thermal-magnetic trip technology, LED trip indicator; HACR and SWD rated; UL and CSA listed

Product Highlights

Combination-type AFCI for residential circuits; 15 A, 120 VAC; 10 kA AIC; plug-on with pigtail neutral

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q115AFC

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• MPN: Q115AFC
• Model: Q115AFC
• Series: Q
• Product Type: Combination arc-fault circuit interrupter (AFCI)
• Mounting Type: Plug-On / Plug-In
• Number of Poles: 1 (single pole)
• Current Rating: 15 Amp
• Voltage: 120 VAC
• AIC Rating: 10 kA @ 120 VAC
• Trip Technology: Thermal magnetic
• Trip Function: Long-time and instantaneous (LI); fixed adjustability
• Trip Indicator: LED trip indicator
• Neutral Connection: Pigtail neutral
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al) (FLAG: upper end 8 AWG is unlikely for a 15 A device; see removed_specifications / notes)
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Phase: Single phase
• Compatibility: Fits Siemens and Murray load centers; compatible with Siemens EQ, Siemens Ultimate, ITE and Gould load centers
• Ratings: HACR rated; SWD rated
• Certifications: UL listed; CSA; UL 1699; UL 489; CSA C22.2 No. 5
• Temperature Rating: 40C
• Construction Features: Insta-Wire; LED trip indicator
• Item Weight: 0.4 Pounds (181 g)
• Dimensions: 1"D x 1"W x 1"H
• UPC: 783643951471
