Siemens Q110 Qp circuit breaker 10 Amp (1 Pack)

Product Description

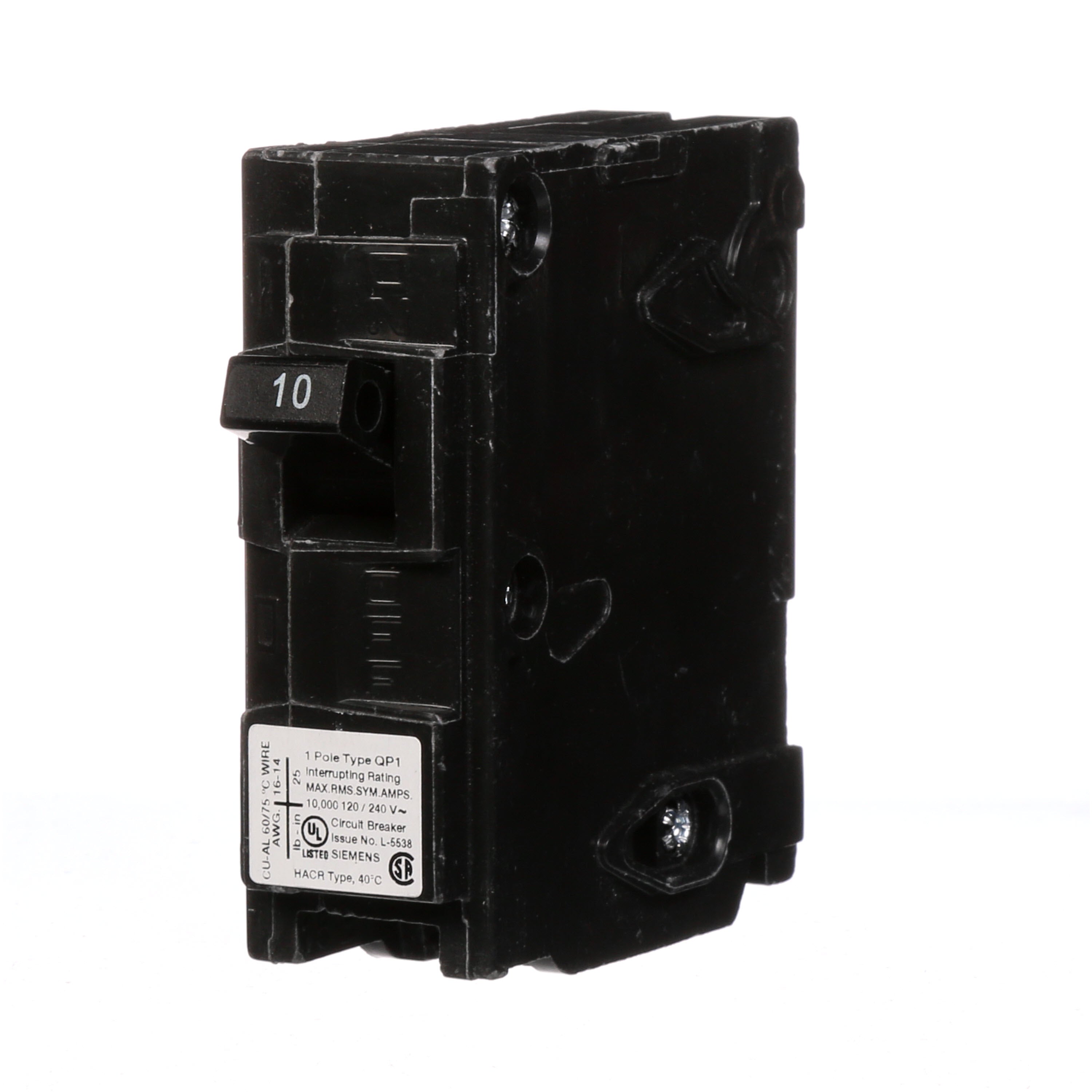

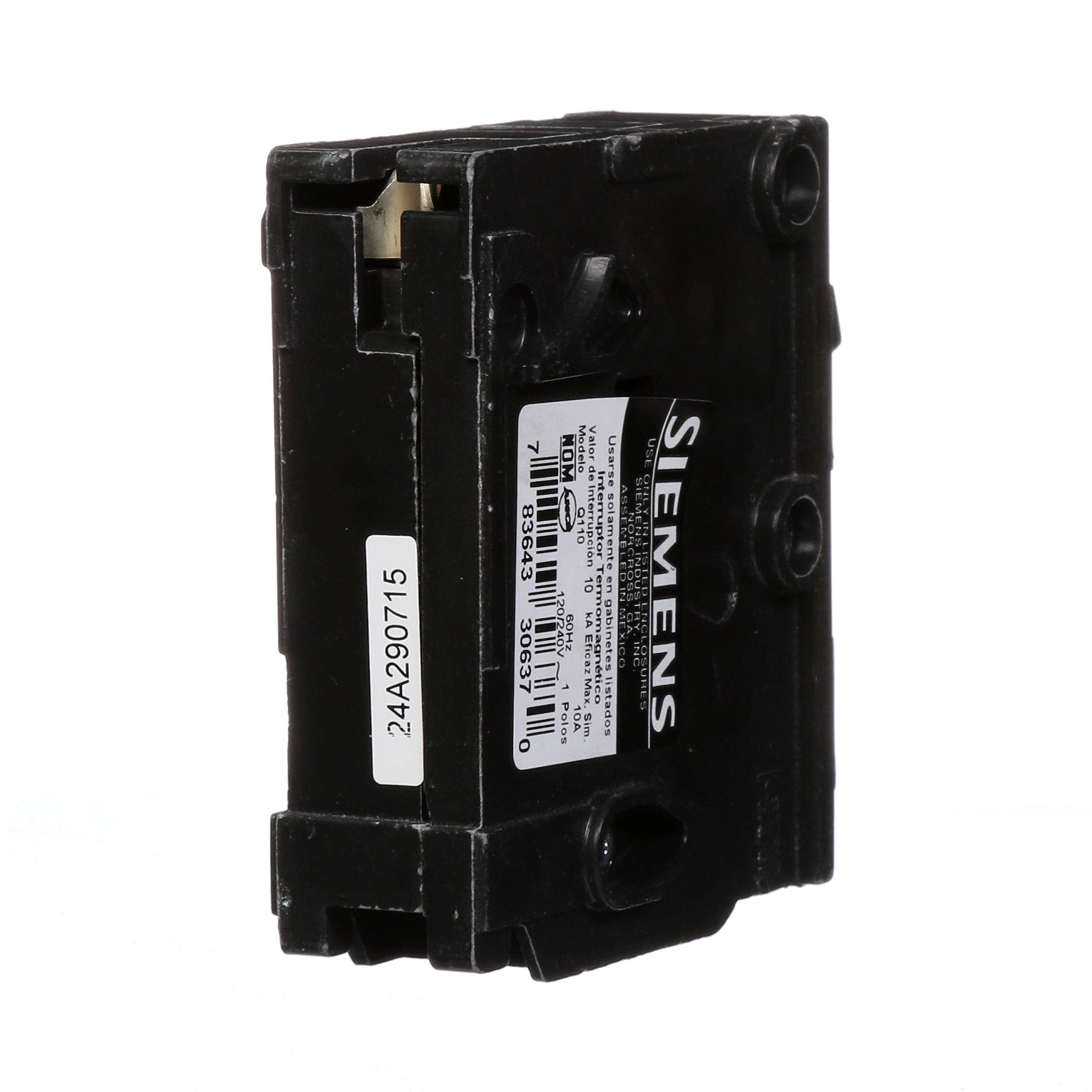

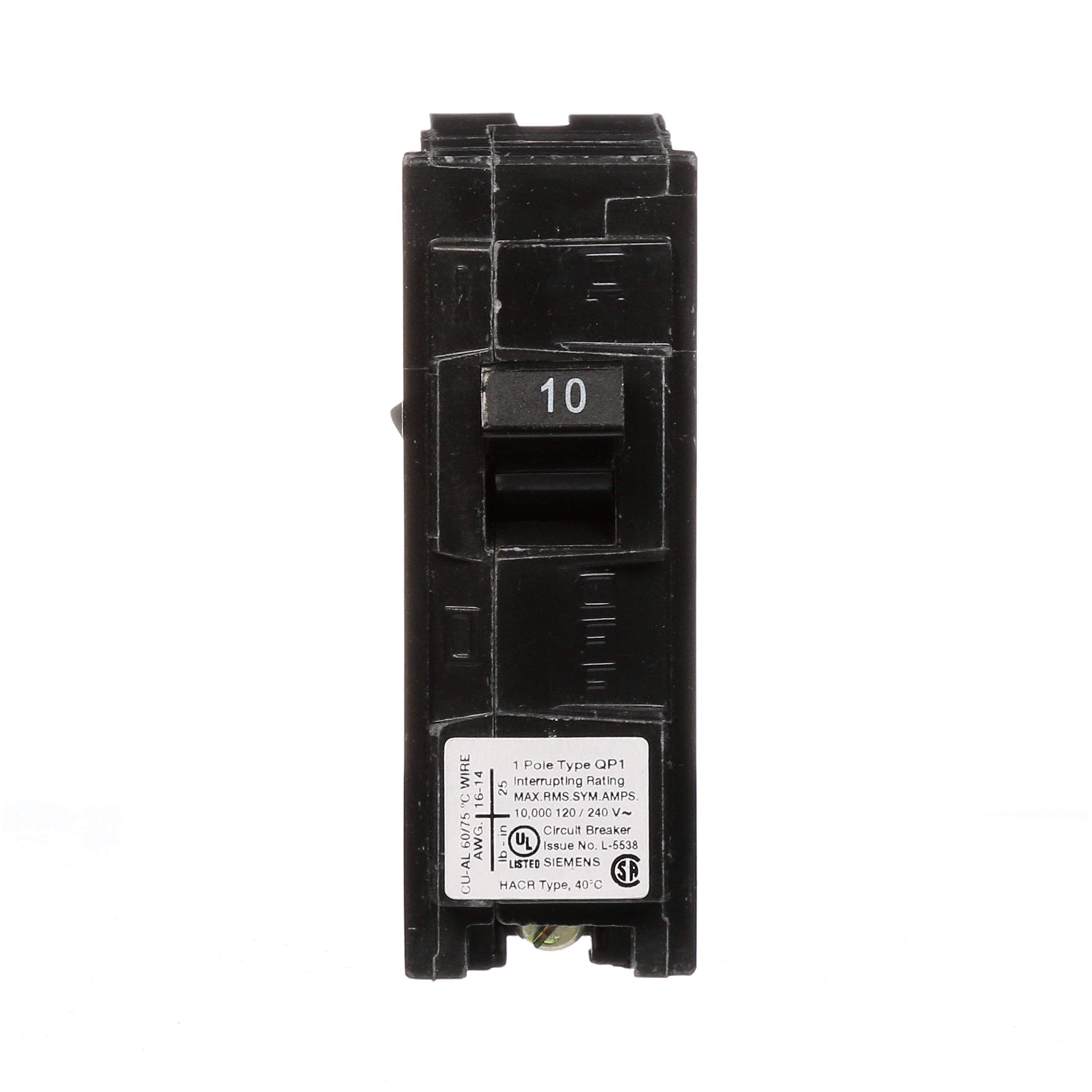

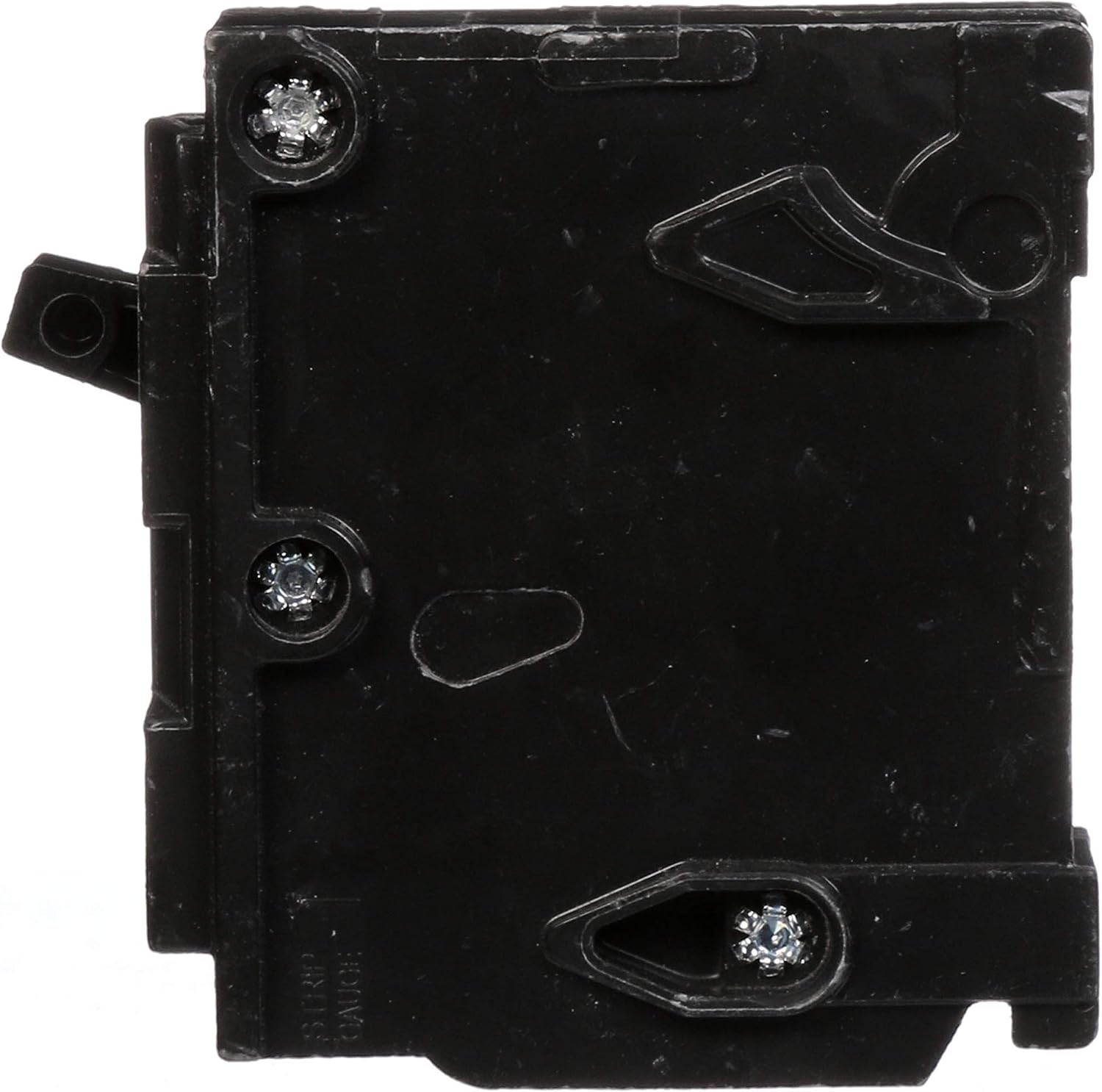

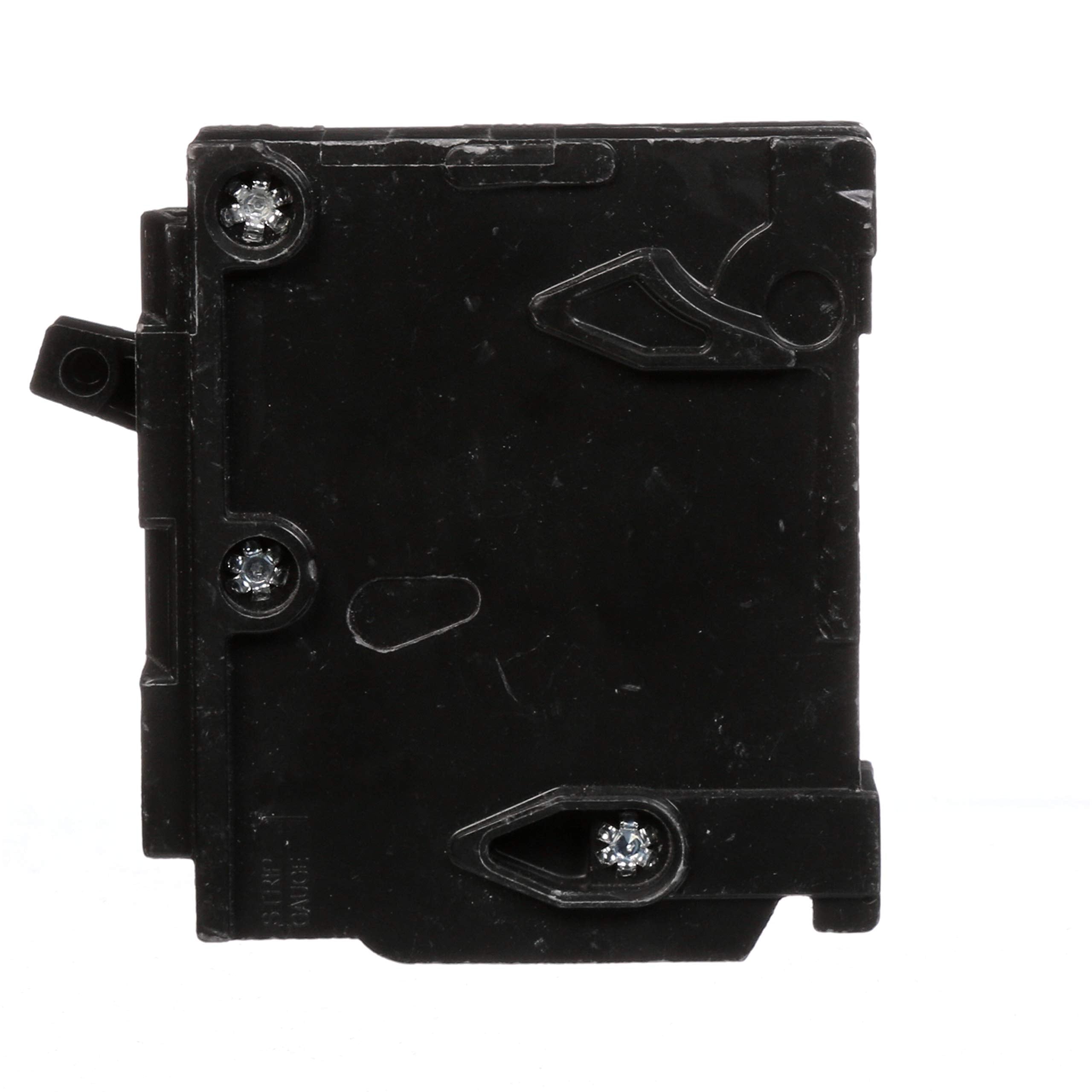

Siemens Q110 is a Type QP single-pole circuit breaker rated 10 Amp and 120 Volts for residential and light commercial distribution. The Q110 uses a thermal-magnetic trip mechanism with a 10,000 AIC interrupting rating and plug-in insta-wire mounting compatible with Siemens PL and ES series load centers. It accepts copper and aluminum conductors and is intended for branch circuit protection, feeders, and load center mains.

• 10 A single-pole Type QP breaker; 120 V rating; thermal-magnetic trip
• 10,000 AIC (10 kA) interrupting capacity; meets UL 489; plug-in insta-wire connection
• Accepts Cu 14–12 AWG and Al 12–10 AWG conductors; compact plug-in dimensions

Product Highlights

10 A, single-pole thermal-magnetic protection with 10,000 AIC and plug-in mounting

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: Q110
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Manufacturer Part Number: Q110
• Model: Q110
• Current Rating: 10 A
• Voltage Rating: 120 V
• Number of Poles: 1
• Type: QP (QP/MP frame)
• Mounting Type: Plug-In Mount
• Connection Type: Plug-In
• Trip Type: Thermal-magnetic
• Interrupting Rating: 10,000 AIC (10 kA)
• Frame: QP/MP
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 °C
• Wire Size: Copper 14-12 AWG; Aluminum 12-10 AWG
• Standard: UL 489
• Application: Electrical distribution, load center mains and feeders
• Country of Origin: Mexico
• UPC: 783643306370
