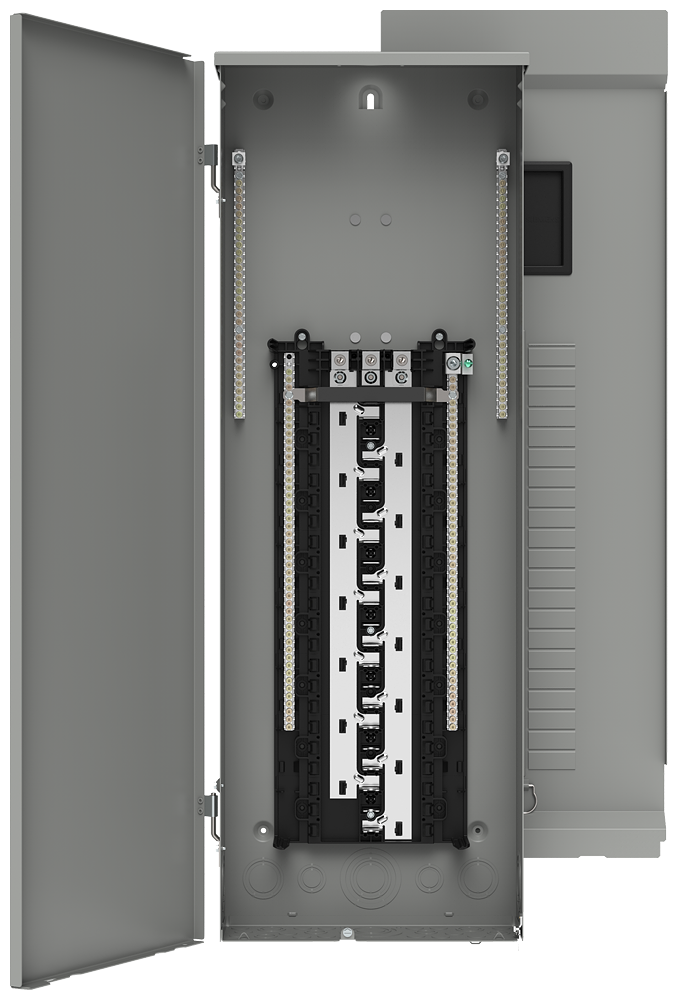

Siemens PW4260L3225CU 120/208/240 VAC 225 Amp 3-Phase 3/4-Wire NEMA 3R Main Lug/Convertible Load Center

Product Description

The Siemens PW4260L3225CU is a load center designed for 120/208/240 VAC distribution. This model works efficiently in residential and light commercial settings. With a 225 Amp capacity, it supports a maximum of sixty circuits through forty-two one-inch spaces. The load center features a NEMA 3R enclosure suitable for outdoor installations.

• Rated for 225 Amps and 100 kA interrupt capacity
• Designed for three-phase and four-wire system configurations
• Compliant with UL standards for safety and performance

Product Highlights

This load center offers copper busbars and a convertible main lug, making it adaptable for various installation needs.

Product Information

Standard Information

• Brand: Siemens
• MPN: PW4260L3225CU

Technical Specifications

• Voltage Rating: 120/240 VAC
• Capacity: 225 Amps
• Interrupt Rating: 100 kAIC
• Enclosure Type: NEMA 3R
• Number of Circuits: 60
• Number of Spaces: 42 one-inch spaces
• Mounting Type: Surface/Flush
• Country of Origin: Mexico
