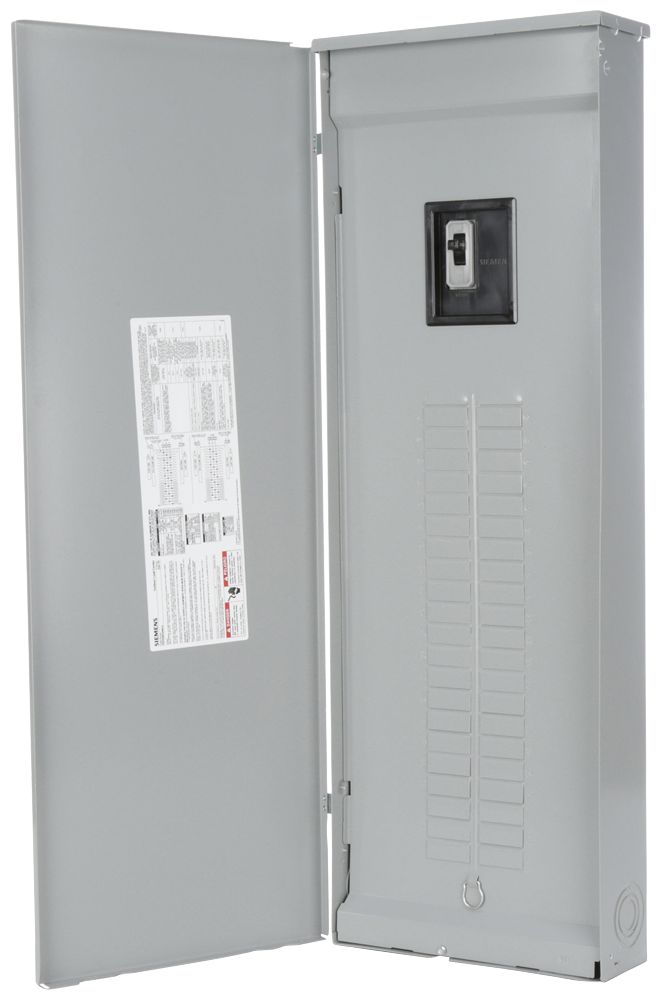

Siemens PW4260B3200CU PL Series Three Phase Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Product Description

The Siemens PW4260B3200CU is a PL series load center designed for three-phase power distribution. This product features a factory-installed main breaker that accommodates up to sixty circuits in its forty-two one-inch spaces. The load center operates on a three-phase four-wire system, which is rated for both 120/240 and 120/208 volts with a maximum current of two hundred amps and an interrupt rating of twenty-two kiloamperes.

• Factory-installed main breaker.
• Compatible with residential and light commercial applications.
• Designed for NEMA Type 3R outdoor use.

Product Highlights

This load center is equipped with copper bus and interchangeable main features. It includes a gray trim design for outdoor installations, enhancing its durability against weather conditions.

Product Information

Standard Information

• Manufacturer: Siemens
• Catalog Number: PW4260B3200CU

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Interrupt Rating: 22 kA
• Number of Circuits: 60
• Number of Spaces: 42
• Enclosure Type: NEMA 3R
• Country of Origin: Mexico
• Weight: 51 lb
• Dimensions: 15.5 in (L) x 5 in (W) x 43.5 in (H)
