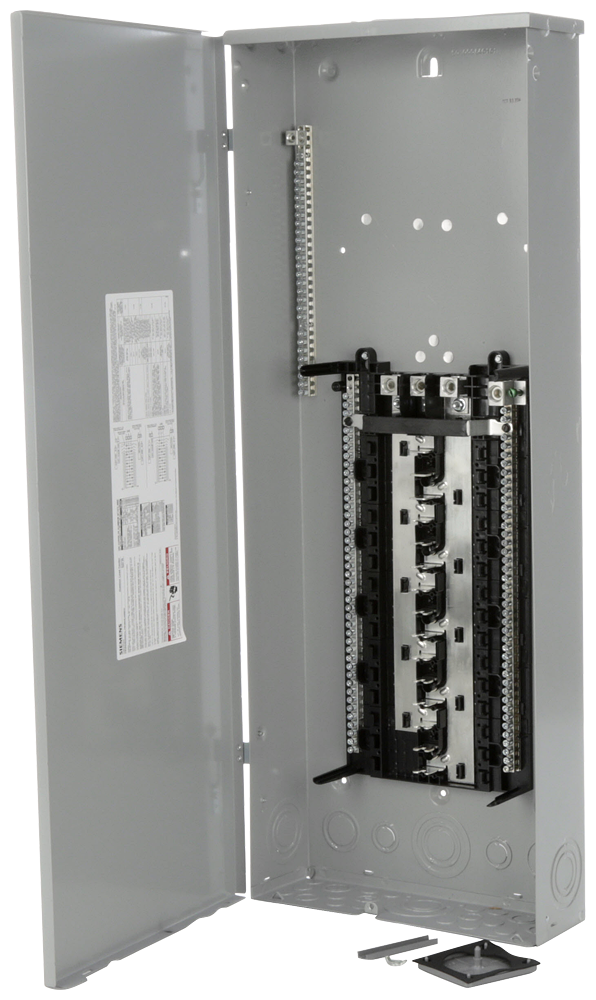

Siemens PW3054L3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Lug/Convertible Load Center

Product Description

The Siemens PW3054L3200CU is a load center rated for 120/208/240 VAC and 200 Amp. This main lug and convertible load center is designed for three-phase, three or four-wire systems. It features 30 one-inch spaces for a maximum of 54 circuits, making it suitable for residential and light commercial applications.

• Supports three-phase electrical systems
• Includes copper bus and interchangeable main
• NEMA Type 3R enclosure for outdoor use

Product Highlights

This product is part of the low voltage PL series load center line. It is built for durability and flexibility, providing options for various installation needs.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: PW3054L3200CU

Technical Specifications

• Amperage Rating: 200 Amp
• Voltage Rating: 120/208/240 VAC
• Phase: 3 Phase
• Number of Spaces: 30
• Maximum Number of Circuits: 54
• Interrupt Rating: 100 kAIC
• Enclosure Type: NEMA 3R
• Country of Origin: Mexico
