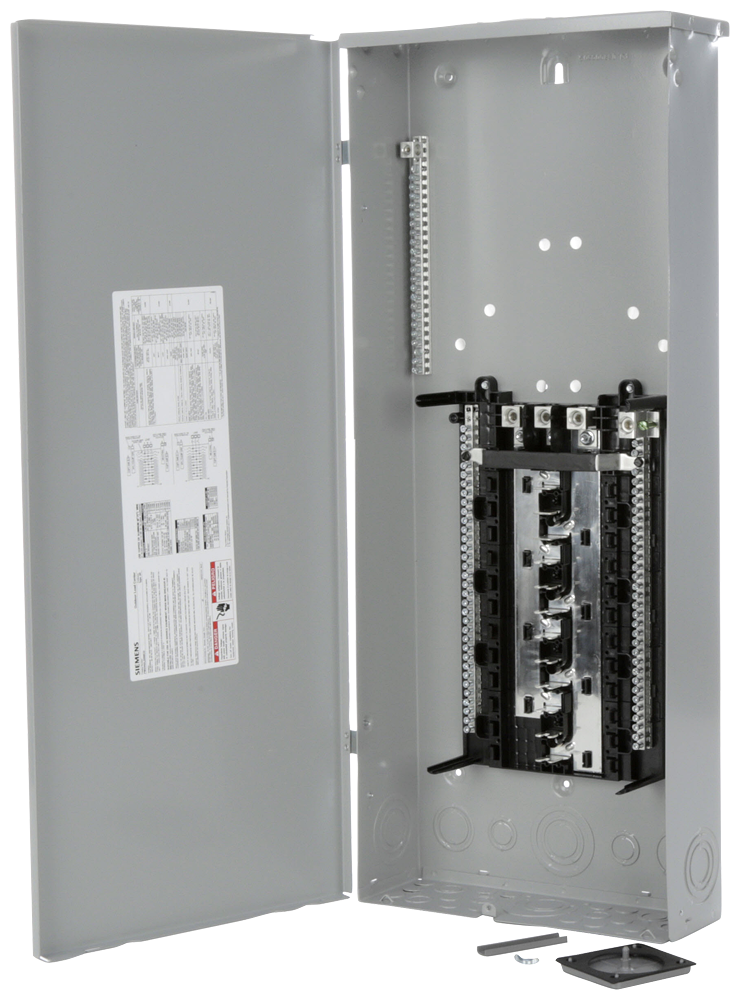

Siemens PW2442L3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Lug/Convertible Load Center

Product Description

Siemens PW2442L3200CU is a load center designed for residential and light commercial electrical distribution. This model supports 120/240V or 120/208V with a 200 Amp rating. The main lug allows up to twenty-four one-inch spaces, accommodating a maximum of forty-two circuits. This load center features a copper bus and is rated for outdoor use with a NEMA Type 3R enclosure.

• Three-phase, four-wire system
• 100 KA interrupt rating
• Flush or surface mounting options

Product Highlights

This load center's design ensures reliable performance in various applications, making it suitable for multiple setups across residential and commercial installations.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: PW2442L3200CU
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 Amp
• Number of Phases: 3 Phase
• Number of Spaces: 24
• Interrupt Rating: 100 kAIC
• Enclosure Type: NEMA 3R
• Country of Origin: Mexico
