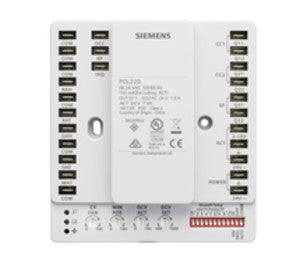

Siemens POL220.05 Economizer Controller - W/ 0-10VDC Signal For Remote Potentiometer

Product Description

The Siemens POL220.05 Economizer Controller helps utilize unconditioned outside air to cool buildings. This controller assesses temperature and humidity choices for effective free cooling. It supports optional Demand Control Ventilation (DCV) based on CO2 measurements.

• Single or dual temperature or enthalpy control
• LED indication
• Quick I/O connection via spade terminals

Product Highlights

This controller is designed for efficient cooling using outside air and provides easy connections and clear indicators.

Product Information

Standard Information

• Type: Stand-Alone
• Supply Voltage: 24 VAC ±25% 50/60Hz

Technical Specifications

• Power Consumption: 4 VA
• Operating Temperature: -40 degrees F to 149 degrees F (-40 degrees C to 65 degrees C)
• Operating Humidity: 5 to 95% RH (non-condensing)
• Approvals: UL Listing UL 873, cUL Listed per CSA - C22.2 No. 24, CE
• Warranty: 2 years
• MPN: POL220.05
• Brand: Siemens Industry
