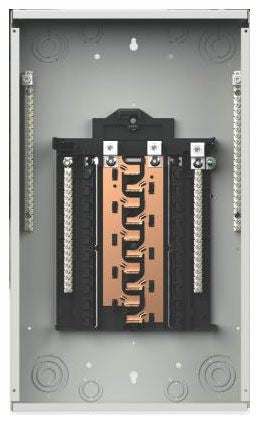

Siemens PNW1632L1125C 125A Main Lug / Convertible Load Center, 16 Spaces / 32 Circuits, 1Phase 3Wire 120/240V, Copper Bus, NEMA-3R

Product Description

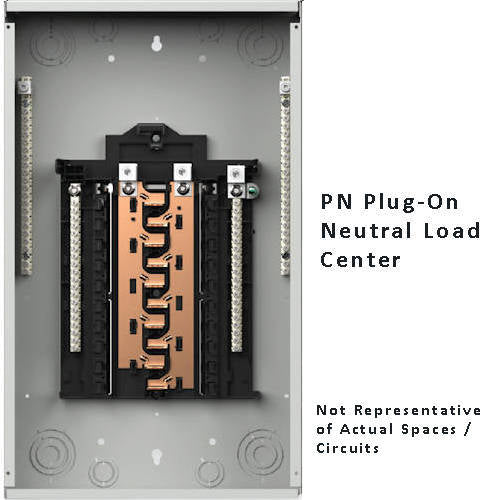

The Siemens PNW1632L1125C is a 125 amp main lug load center with a convertible design. This load center features a copper bus and is rated for a 1-phase, 3-wire system. It includes sixteen one-inch spaces that allow for a maximum of thirty-two circuits. The enclosure is designed to be NEMA type 3R, making it suitable for outdoor applications.

• Amperage rating of one hundred twenty-five amps
• Support for up to thirty-two circuits
• Suitable for outdoor use with NEMA type 3R enclosure

Product Highlights

This load center is designed for easy installation and flexibility, making it ideal for various electrical distribution needs.

Product Information

Standard Information

• Brand: Siemens
• MPN: PNW1632L1125C

Technical Specifications

• Maximum Number of Spaces: 16
• Maximum Number of Circuits: 32
• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Interrupting Rating: 100 kAIC
• Enclosure Type: NEMA 3R
• Bus Material: Copper
• Feed Location: Bottom
