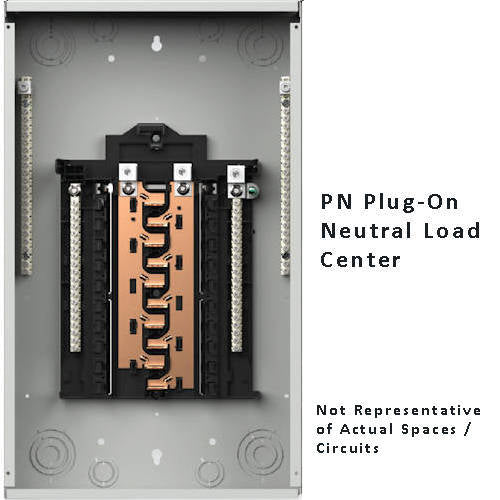

Siemens PNW1212L1125C 125A Main Lug / Convertible Load Center, 12 Spaces / 12 Circuits, 1Phase 3Wire 120/240V, Copper Bus, NEMA-3R

Product Description

The Siemens PNW1212L1125C is a 125A main lug convertible load center designed for power distribution in residential and commercial settings. It features twelve spaces and circuits in a one-phase, three-wire configuration rated for 120/240V. The copper bus construction provides reliable performance and supports high efficiency.

• 125A capacity
• Suitable for outdoor applications
• NEMA 3R enclosure for environmental protection

Product Highlights

This load center is engineered to accept plug-on neutral breakers and is equipped with a patented Insta wire neutral/ground system to simplify installation.

Product Information

Standard Information

• Brand: Siemens
• MPN: PNW1212L1125C

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 100 kAIC
• Number of Spaces: 12
• Number of Circuits: 12
• Enclosure Type: NEMA 3R
• Enclosure Box Size: 14-1/2 in W x 4-1/2 in D x 21 in H
• Wiring Configuration: 3-Wire
