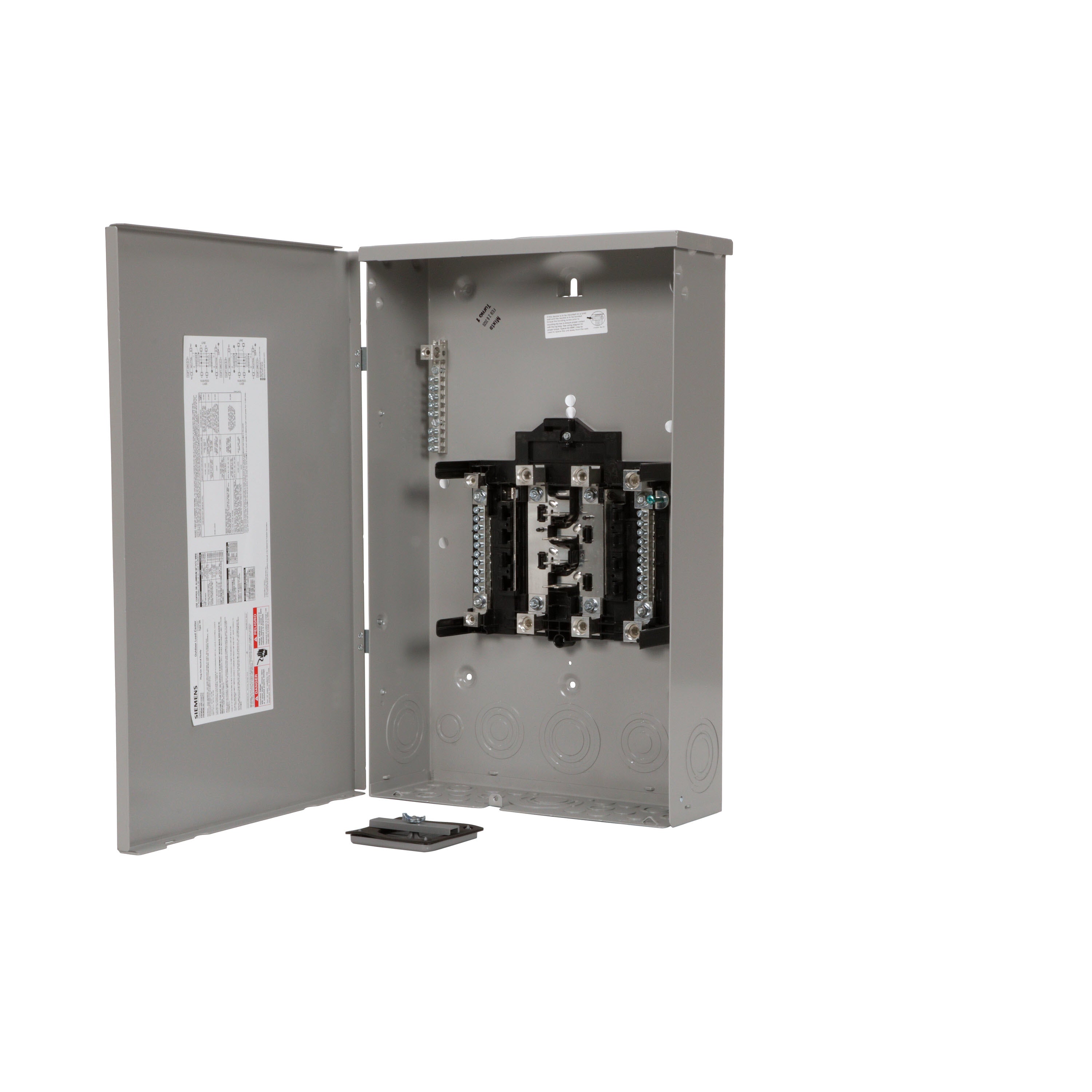

Siemens PNW0816L1200TC Main Lug Load Center 200A 8 Spaces 16 Circuits NEMA 3R

Product Description

Siemens PNW0816L1200TC is a 200 amp main lug load center designed for residential and light commercial applications. This load center features 8 spaces and supports 16 circuits, suitable for 120/240 volt systems. It offers enhanced safety and durability with its NEMA type 3R enclosure, which makes it ideal for outdoor use.

• 200 amp capacity
• Designed for plug-on neutral breakers
• Copper bus with feed-thru lugs

Product Highlights

This load center is part of the Pro Series, known for its reliable performance and ease of installation. It is equipped with features that enhance wiring efficiency and reduce installation time.

Product Information

Standard Information

• Brand: Siemens
• MPN: PNW0816L1200TC

Technical Specifications

• Catalog Number: PNW0816L1200TC
• Amperage Rating: 200 amps
• Voltage Rating: 120/240 volts
• Number of Circuits: 16
• Number of Spaces: 8
• Enclosure Type: NEMA 3R
• Interrupt Rating: 100 kAIC
• Application: Residential and light commercial electric distribution
• Wiring Configuration: 3-Wire
• Country of Origin: Mexico
