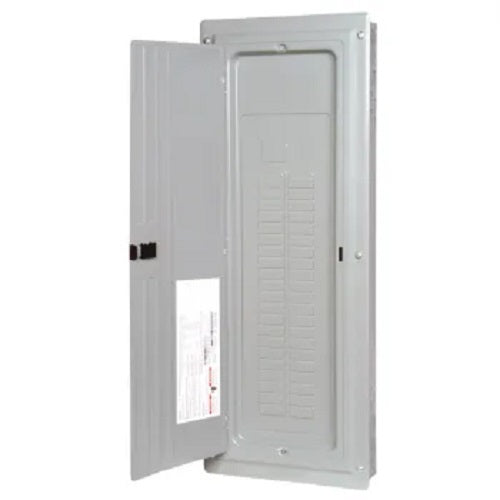

Siemens PN4264L1225C 225A Main Lug / Convertible Load Center, 42 Spaces / 64 Circuits, 1 Phase 3 Wire 120/240V, Copper Bus, NEMA-1

Product Description

Siemens PN4264L1225C is a load center designed for residential and light commercial electrical distribution. This model features a main lug configuration with forty-two spaces and a maximum of sixty-four circuits. The system operates on a single-phase, three-wire setup and is rated for one hundred twenty to two hundred forty volts at two hundred twenty-five amps. The copper bus provides efficient current flow, and the NEMA-1 enclosure is suitable for indoor applications.

• Amperage Rating: 225 Amps
• NEMA Type 1 enclosure for indoor use
• Compatible with plug-on neutral breakers

Product Highlights

This load center offers a high level of functionality and flexibility for contractors. It is designed to accommodate various electrical loads and is engineered to facilitate quick installation.

Product Information

Standard Information

• Catalog Number: PN4264L1225C
• Brand: Siemens

Technical Specifications

• Voltage Rating: 120/240 VAC
• Interrupt Rating: 100 kA
• Number of Circuits: 64
• Number of Spaces: 42
• Country of Origin: Mexico
• Wiring Configuration: 3-Wire
• Overall Dimensions: 14.25 inches W x 3.88 inches D x 39 inches H
• Weight: 34 lb
