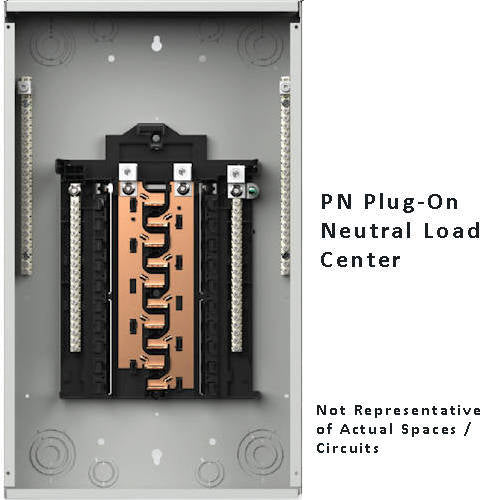

Siemens PN4264B1225C 225A Main Breaker / Convertible Load Center 42 Spaces / 64 Circuits

Product Description

The Siemens PN4264B1225C is a load center designed for residential and light commercial electric distribution. This load center features a main breaker and accommodates up to 42 one-inch spaces, allowing for a maximum of 64 circuits. It is suitable for use in a one-phase, three-wire system rated at 120/240 volts with a capacity of 225 amperes and an interrupt rating of twenty-two thousand amps. The copper bus provides excellent conductivity while the NEMA type 1 enclosure is ideal for indoor applications.

• 42 one-inch spaces for maximum installation flexibility
• Designed for 120/240V one-phase systems
• Constructed with copper bus and gray trim

Product Highlights

The load center is engineered to offer quick installation and flexibility for various electrical applications. It features plug-on neutral capabilities and an easy-to-use installation system.

Product Information

Standard Information

• Manufacturer: Siemens
• Brand: Siemens

Technical Specifications

• Catalog Number: PN4264B1225C
• Voltage Rating: 120/240VAC
• Amperage Rating: 225A
• Interrupt Rating: 22kA
• Number of Spaces: 42
• Number of Circuits: 64
• Enclosure Type: NEMA 1
• Wiring Configuration: 3-Wire
• Country of Origin: Mexico
• GTIN: 00804766702990
• UPC: 804766702990
