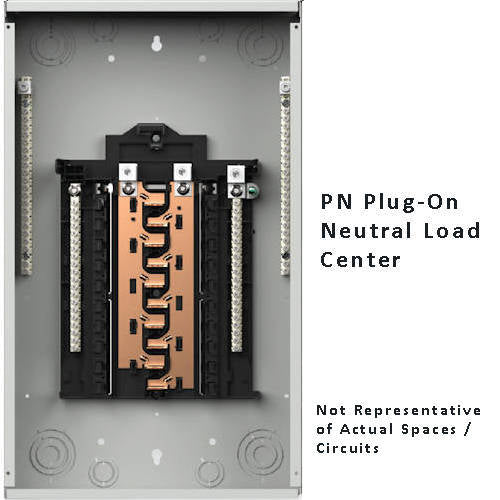

Siemens PN4060L1200C 200A Main Lug / Convertible Load Center, 40 Spaces / 60 Circuits, 1Phase 3Wire 120/240V, Copper Bus, NEMA-1

Product Description

The Siemens PN4060L1200C is a 200A main lug and convertible load center designed for efficient power distribution. It has forty spaces and supports up to sixty circuits. This product works with a one-phase, three-wire system rated at 120/240 volts. The copper bus ensures effective electrical supply, while the NEMA type one enclosure allows for indoor installation.

• Forty one-inch spaces
• Supports maximum sixty circuits
• Rated for 200A with a 100KAIC interrupt rating

Product Highlights

This load center is suitable for residential and light commercial electrical distribution. The copper bus construction enhances durability and reliability.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: PN4060L1200C

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: 120/240
• Phase: 1
• Enclosure Type: NEMA Type 1
• Interrupt Rating: 100,000 AMPS
• Country of Origin: Mexico
• Special Features: Copper bus, gray trim
• Application: Residential and light commercial
