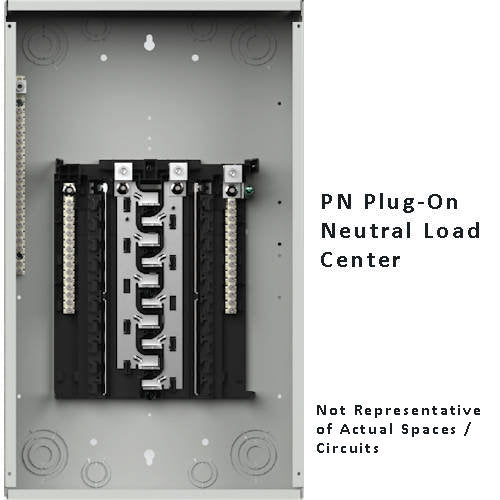

Siemens PN4040B1200 200A Main Breaker / Convertible Load Center 40 Spaces 40 Circuits

Product Description

Siemens PN4040B1200 is a main breaker load center with a capacity of 200 amps. This unit can contain up to forty one-inch circuit breakers. It operates on a single-phase, three-wire system with voltage ratings of one hundred twenty to two hundred forty volts. The product features an aluminum bus and a NEMA type one enclosure suitable for indoor applications.

• 200A main breaker capacity
• 40 spaces for circuit breakers
• Compatible with plug-on neutral breakers

Product Highlights

This load center is designed for residential and light commercial electric distribution. It is built to ensure efficient space utilization while allowing for easy installation with its plug-on neutral ready feature.

Product Information

Standard Information

• Brand: Siemens
• MPN: PN4040B1200

Technical Specifications

• Catalog Number: PN4040B1200
• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 22 kAIC
• Enclosure Type: NEMA 1
• Number of Circuits: 40
• Dimensions: 15.5 in W x 37.13 in H
• Country of Origin: Mexico
