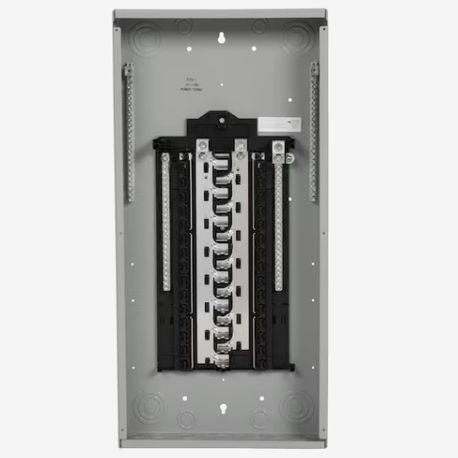

Siemens PN3048L1200C 200A Main Lug / Convertible Load Center, 30 Spaces / 48 Circuits, 1Phase 3Wire 120/240V, Copper Bus, NEMA-1

Product Description

The Siemens PN3048L1200C is a load center designed for use in both residential and commercial applications. This 200 amp main lug load center supports up to thirty one-inch spaces, allowing a maximum of forty-eight circuits. It operates on a one-phase, three-wire system, and is rated for 120/240 volts. The unit features copper bus bars and is housed in a NEMA 1 enclosure, suitable for indoor use.

• 200A capacity and 30 spaces for circuit management.
• Indoor-rated NEMA 1 enclosure with copper bus.
• Compatible with plug-on neutral breakers for easier wiring.

Product Highlights

This Siemens load center completes electrical systems efficiently by allowing for manageable and safe circuit distribution.

Product Information

Standard Information

• Brand: Siemens
• MPN: PN3048L1200C

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 48
• Number of Spaces: 30
• Wiring Configuration: 3-Wire
• Interrupt Rating: 100 kAIC
• Enclosure Type: NEMA 1
• Dimensions: 15.5 in W x 31.13 in H
• Enclosure Box Size: 14.25 in W x 3.88 in D x 30 in H
