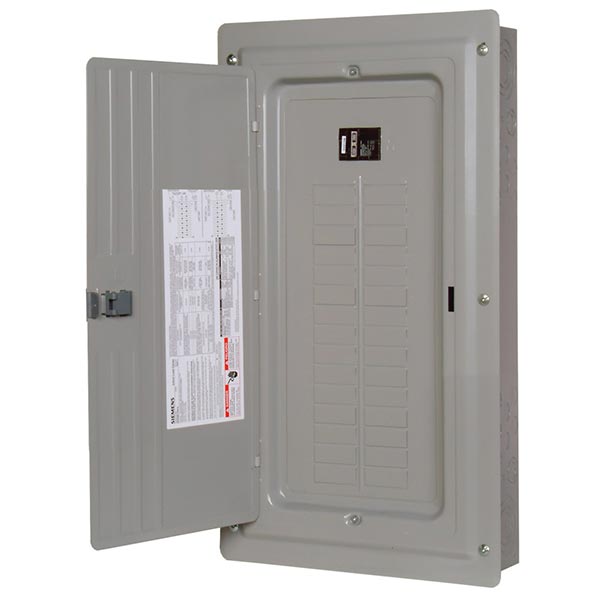

Siemens PN3030B1100C 100A Main Breaker / Convertible Load Center, 30 Spaces / 30 Circuits, 1 Phase 3 Wire 120/240V, Copper Bus, NEMA 1

Product Description

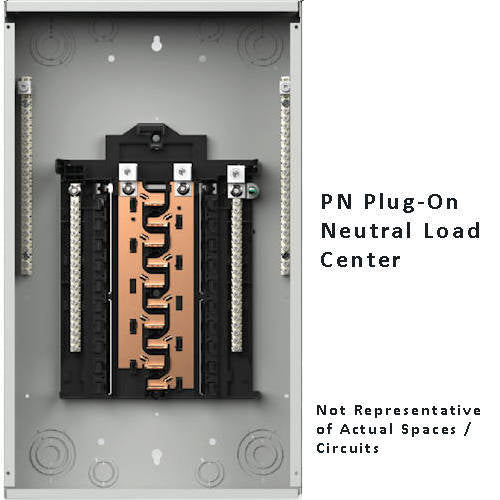

Siemens PN3030B1100C is a main breaker load center designed for a 1-phase 3-wire system rated at 120/240 volts. This enclosed unit allows for up to thirty circuits with a maximum amperage of one hundred. It features a copper bus and is designed for indoor use with a NEMA type one enclosure.

• Amperage rating of one hundred amps
• Up to thirty circuits with thirty spaces
• NEMA type one enclosure suitable for indoor installation

Product Highlights

This load center meets the high standards of performance and versatility necessary for residential and light commercial applications.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: PN3030B1100C

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Circuits: 30
• Number of Spaces: 30
• Enclosure Type: NEMA 1
• Interrupt Rating: 22 kA
• Wiring Configuration: 3 Wire
• Country of Origin: Mexico
