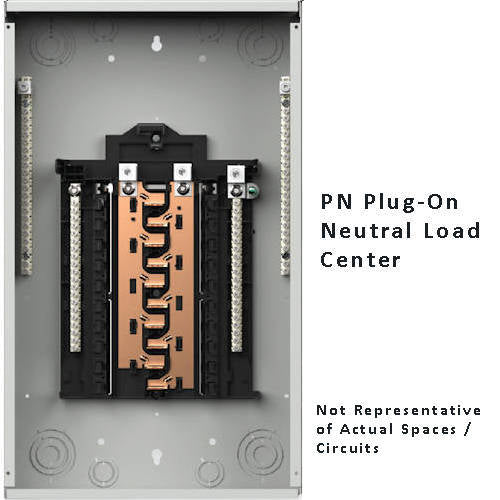

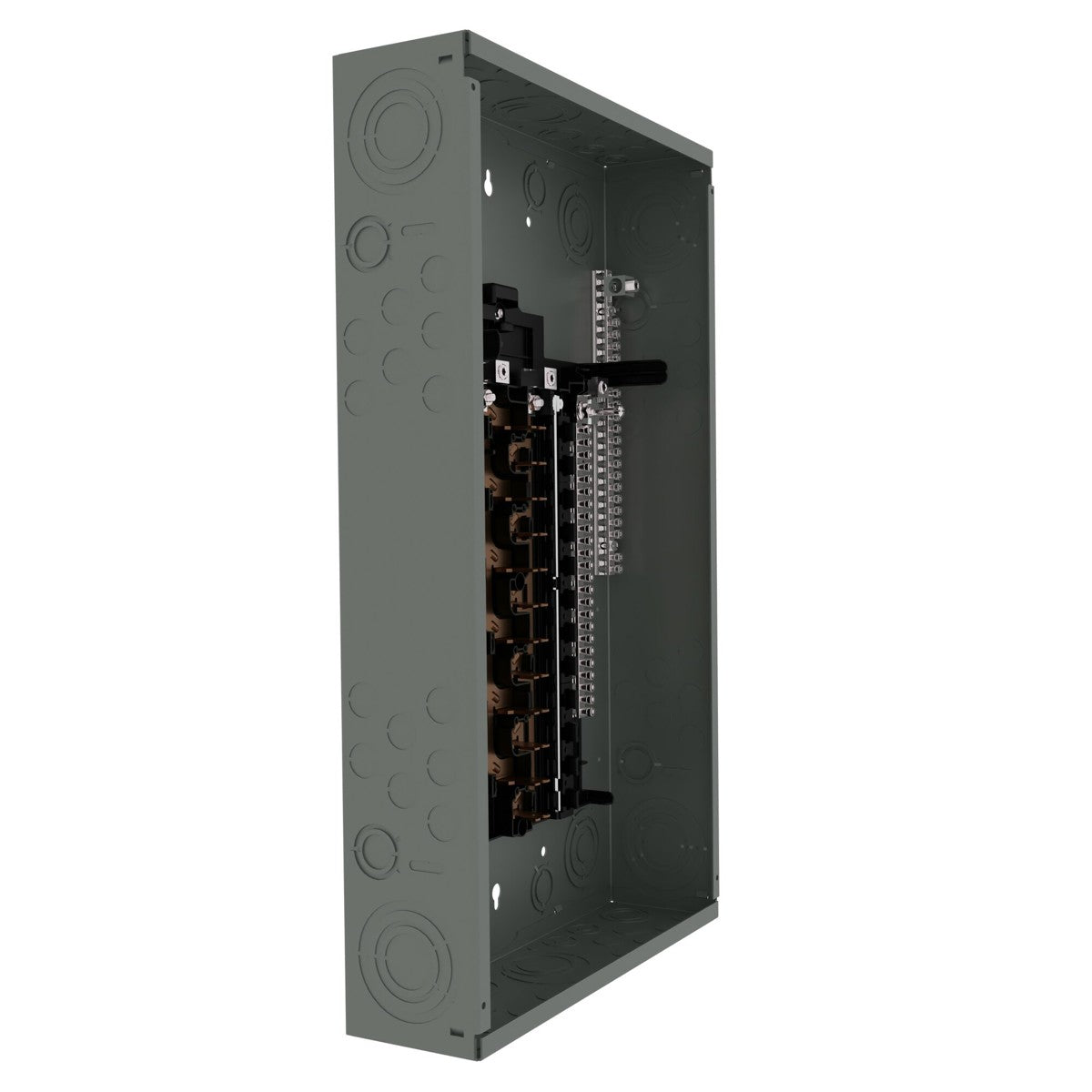

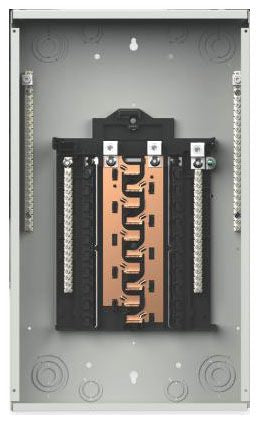

Siemens PN2448L1125C 125A Main Lug Convertible Load Center 24 Spaces 48 Circuits

Product Description

The Siemens PN2448L1125C is a 125 amp main lug convertible load center designed for residential and light commercial applications. It features twenty-four one-inch spaces that accommodate up to forty-eight circuits, making it a versatile option for various electrical setups. This load center operates on a one-phase, three-wire system rated for 120/240 volts and is equipped with a copper bus. The enclosure is NEMA type 1, suitable for indoor use, and comes in gray.

• 125A capacity.
• Twenty-four spaces supporting forty-eight circuits.
• Compatible with plug-on neutral breakers.

Product Highlights

Ideal for both residential and light commercial installations with extensive circuit support.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: PN2448L1125C
• Voltage Rating: 120/240V
• Amperage Rating: 125A
• Interrupt Rating: 100,000 Amps
• Bus Material: Copper
• Maximum Circuits: 48
• Maximum Spaces: 24
• Application: Residential and light commercial electric distribution
