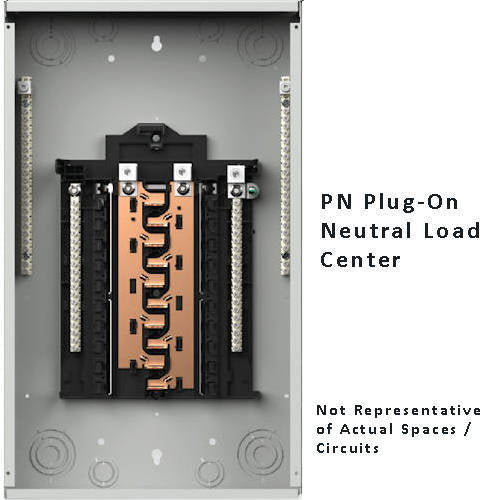

Siemens PN2424B1100C 100A Main Breaker / Convertible Load Center 24 Spaces / 24 Circuits

Product Description

The Siemens PN2424B1100C is a 100 Amp main breaker and load center designed for residential and light commercial electric distribution. This unit is equipped with 24 spaces, accommodating a maximum of 24 circuits. The load center features a copper bus and is rated for a 120/240 Volt, single-phase, three-wire system. It has a gray NEMA type 1 enclosure suitable for indoor use.

• 100 Amp main breaker
• 24 spaces for circuit breakers
• Copper bus for improved conductivity

Product Highlights

The Siemens PN2424B1100C load center is an efficient solution for your electrical system needs. It is designed for quick breaker installation, reducing labor time and enhancing safety in residential and light commercial applications.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PN2424B1100C
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Interrupt Rating: 22 kAIC
• Number of Circuits: 24
• Enclosure Type: NEMA 1
• Dimensions: 15.5 in W x 25.13 in H
• Wiring Configuration: 3-Wire
