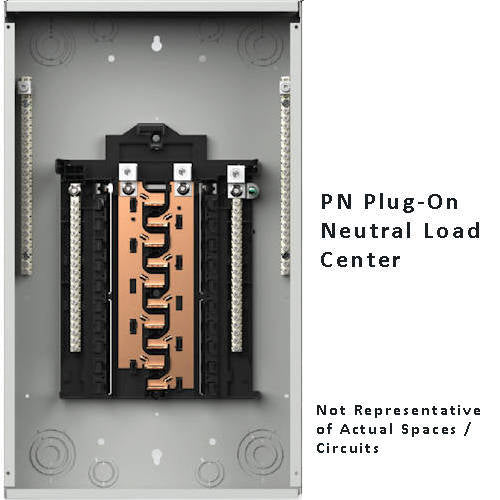

Siemens PN2040B1100C 100A Main Breaker / Convertible Load Center, 20 Spaces / 40 Circuits, 1 Phase 3 Wire 120/240V, Copper Bus, NEMA-1

Product Description

The Siemens PN2040B1100C is a 100 amp main breaker load center designed for residential and light commercial applications. This load center supports up to 20 one-inch spaces, accommodating a maximum of 40 circuits. It operates on a single phase, three-wire system rated for 120/240 volts with a 22 kiloamp interrupting capacity.

• 20 one-inch spaces for circuit flexibility
• Plug-on neutral design for easier installation
• Durable copper bus construction

Product Highlights

This load center features a NEMA type 1 enclosure suitable for indoor use. The design allows for efficient power distribution while ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: Siemens
• Catalog Number: PN2040B1100C

Technical Specifications

• Voltage Rating: 120/240V
• Current Rating: 100A
• Phase: Single Phase
• Number of Circuits: 40
• Spaces: 20
• Interrupting Rating: 22KAIC
• Bus Material: Copper
• Enclosure Type: NEMA-1
