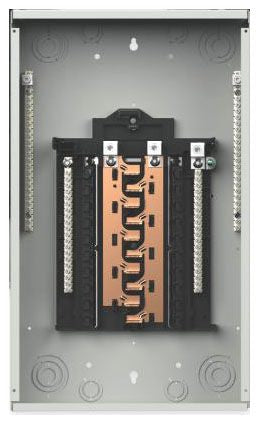

Siemens PN1632B1100C 100A Main Breaker / Convertible Load Center, 16 Spaces / 32 Circuits, 1Phase 3Wire 120/240V, Copper Bus, NEMA-1

Product Description

Siemens PN1632B1100C is a load center designed for residential and light commercial electric distribution. It features a main breaker and accommodates up to 32 circuits with 16 one-inch spaces. This unit operates in a one-phase, three-wire system and holds a voltage rating of one hundred twenty to two hundred forty volts. The load center is equipped with a copper bus and is housed in a NEMA type one enclosure suitable for indoor use.

• 100 amp main breaker
• 16 spaces for circuits
• Compatible with 120/240V systems

Product Highlights

This load center is ideal for managing electrical circuits in residential and light commercial settings.

Product Information

Standard Information

• Catalog Number: PN1632B1100C
• Brand: Siemens

Technical Specifications

• Amperage Rating: 100
• Voltage Rating: 120
• Interrupt Rating: 22000 AMPS
• Phase: 1
• Enclosure Type: TYPE 1
• Country of Origin: Mexico
• UPC: 804766702716
• GTIN: 00804766702716
