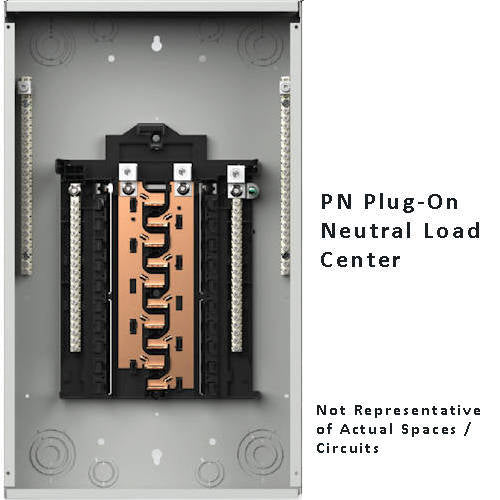

Siemens PN1224L1200C 200A Main Lug / Convertible Load Center 12 Spaces 24 Circuits

Product Description

The Siemens PN1224L1200C is a reliable load center offering 200 amps of power. This product features a main lug connection and can accommodate up to twelve one-inch spaces, supporting a maximum of twenty-four circuits. It is designed for a one-phase three-wire system operating at 120/240 volts. This load center includes a copper bus and has a NEMA Type 1 enclosure suitable for indoor installations.

• 200A main lug connection
• 12 spaces with capacity for 24 circuits
• Copper bus and NEMA Type 1 enclosure

Product Highlights

This load center supports efficient power distribution and is easy to install.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: PN1224L1200C

Technical Specifications

• Voltage Rating: 120/240V
• Amperage Rating: 200A
• Configuration: 1-phase 3-wire
• Circuit Spaces: 12
• Maximum Circuits: 24
• Bus Material: Copper
• NEMA Rating: NEMA Type 1
• UPC: 80476670380
