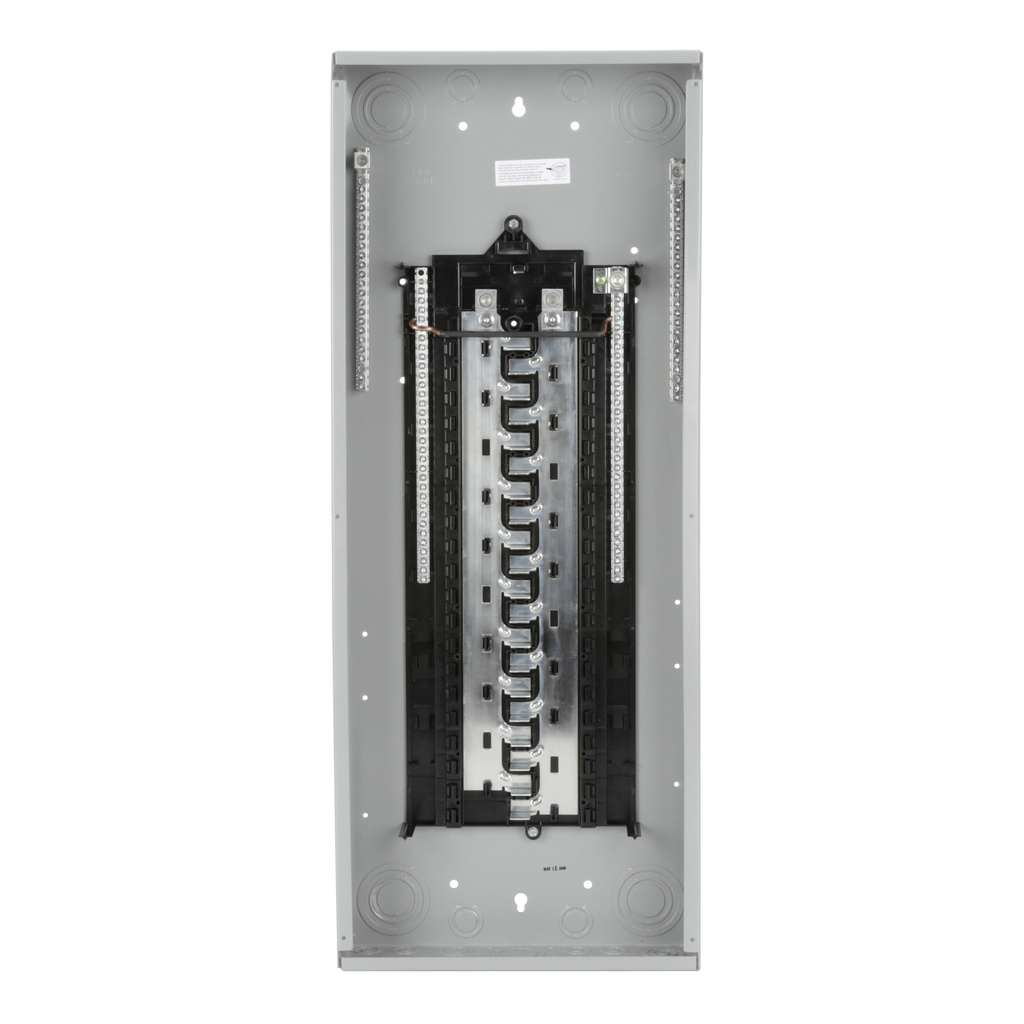

Siemens P4040L1200 120/240 VAC 200 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Convertible Load Center

Product Description

The Siemens P4040L1200 is a load center designed for both residential and light commercial electric distribution. This model operates on a 120/240 Volt system with a capacity for 200 Amp. It features a main lug and can accommodate a total of 40 one-inch spaces, allowing for a maximum of 40 circuits.

• Type 1 NEMA enclosure for indoor use
• Aluminum bus for effective conductivity
• Flush and surface mounting options

Product Highlights

This load center is suitable for a variety of applications, including residential and light commercial projects. It has a 100-kA interrupt rating to handle overloads and short circuits effectively.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: P4040L1200
• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Interrupt Rating: 100 kAIC
• Number of Spaces: 40
• Enclosure Type: Type 1
• Mounting Type: Flush / Surface
• Applications: Residential and light commercial electric distribution
