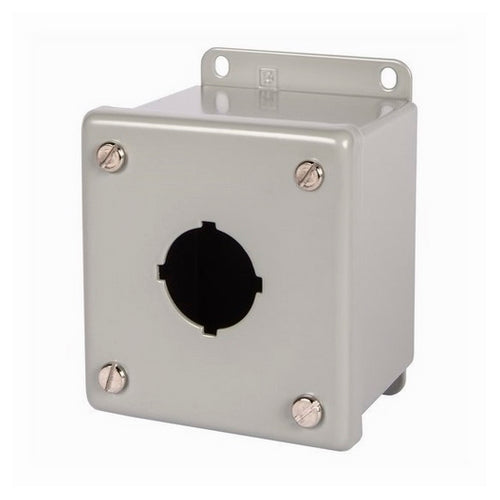

Siemens P30EMS01 83 x 70 x 89 mm 1-Hole NEMA 12/13 Painted Steel Enclosure

Product Description

The Siemens P30EMS01 is a Class 52 pushbutton station, heavy-duty oiltight, 30 mm enclosure. This painted steel enclosure is NEMA 12/13 rated and features 1 command point. Designed for indoor use, it provides protection against dust. Ideal for housing 30.5 mm pushbuttons and switches in demanding environments.

• Heavy Duty Oiltight
• NEMA 12/13
• Painted Steel Enclosure

Product Highlights

The Siemens P30EMS01 provides a reliable and durable solution for safeguarding electrical components in industrial settings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: P30EMS01
• Country of Origin: MEX

Technical Specifications

• GTiN: 00754554030128
• Type: Non-Illuminated
• Brand: Siemens
• Standard: File No. E61997,CSA CUL Listed Per CSA C22.2 No.94
• Enclosure: Indoor Use Primarily To Provide A Degree Of Protection Against Dust
• Product UPC: 75455403012
• 12-Digit UPC: 754554030128
• Mounting Type: Surface Mount Screw
• Insulation Type: Steel,Painted
• Operating Temperature: -35 To 70 C
• Enclosure Type: NEMA 12/13
• Material: Steel
• Command Points: 1
• Part Number #: P30EMS01
• Dimensions: 4.3 in H x 3.6 in W x 3.1 in D
• Finish: Painted
• NEMA Rating: NEMA 12/13
• Series: Class 52/P30E
• UNSPSC: 39122216
• Application: For use to house 30.5 mm pushbuttons and switches
• Depth: 3.1
• Width: 3.6
• Cover Type: Hinged
• Length: 3-1/2
