Siemens P3060B1200ACU 200 Amp 1-Phase Breaker Wire Guide Load Center REPLACEMENT PN3048B1200C

Product Description

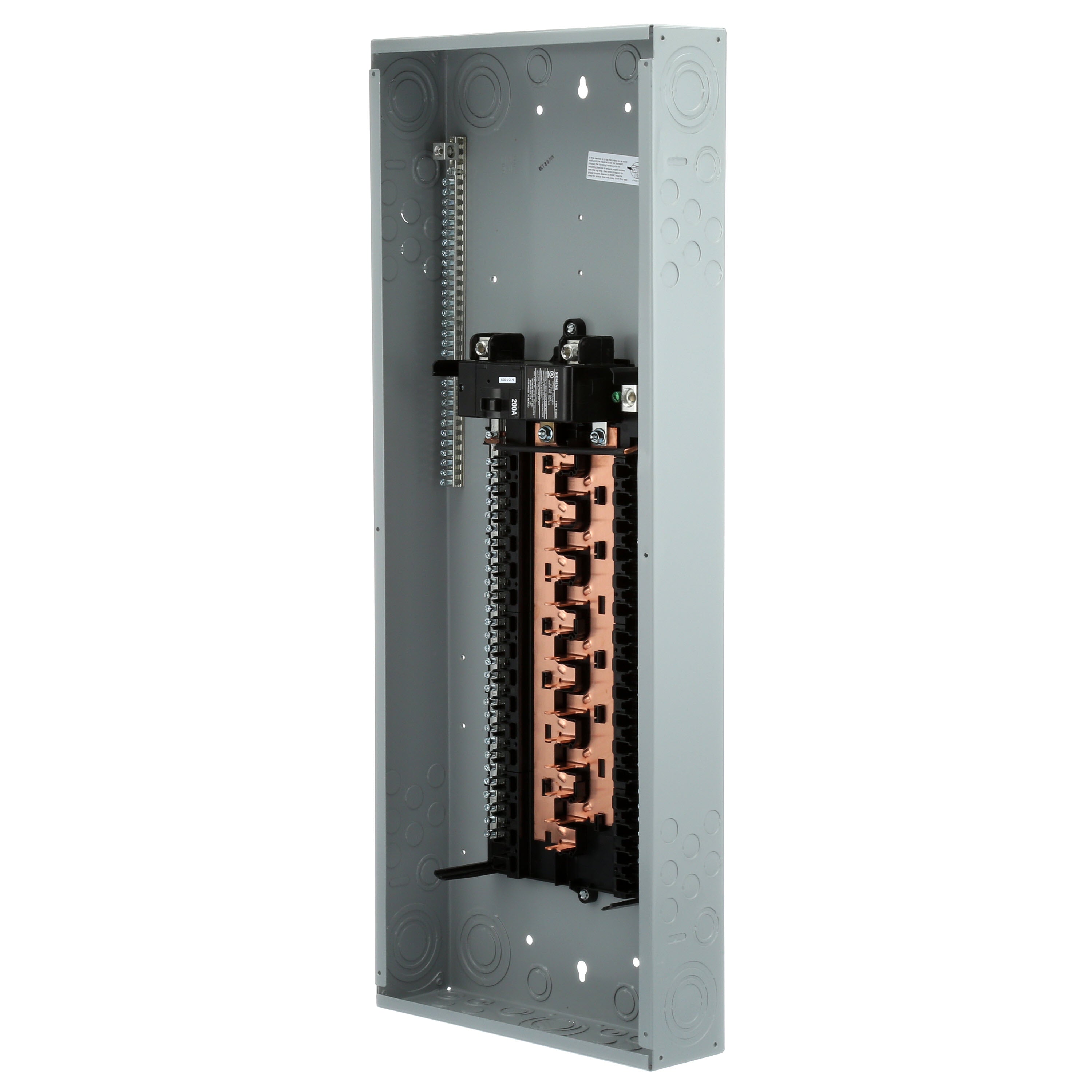

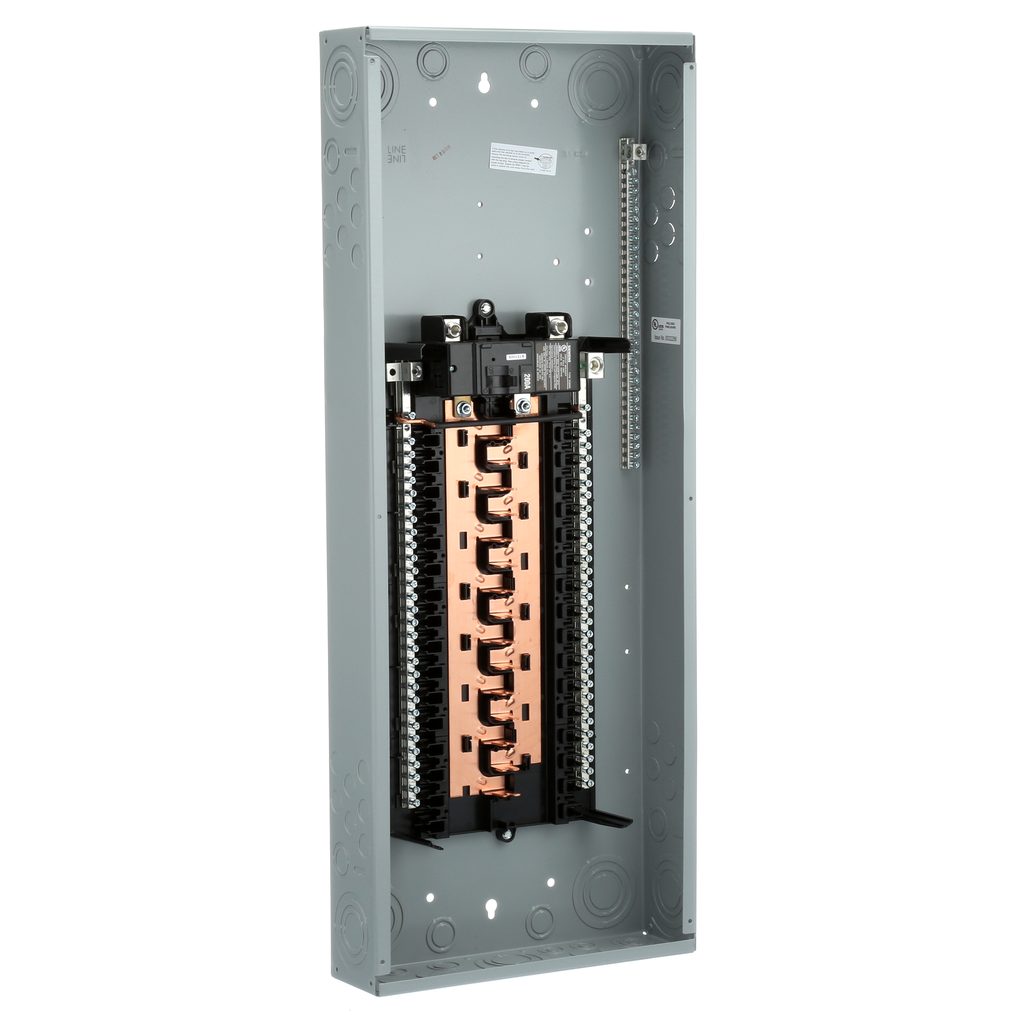

The Siemens P3060B1200ACU is a low voltage PL series load center with a factory-installed main breaker and 30 1-inch spaces allowing a maximum of 60 circuits. This 1-phase 3-wire system is rated 120/240V (200A) with a 22kA interrupt rating and features a copper bus and a NEMA type 1 enclosure for indoor use. It is suitable for residential and light commercial electrical distribution.

• Factory installed main breaker
• 30 1-inch spaces allowing max 60 circuits
• 1-Phase 3-Wire system rated 120/240V (200A) 22kA interrupt

Product Highlights

Features copper bus, interchangeable main, and wire guide interior for new AFCI/GFC breakers. Offers a gray trim and NEMA Type 1 enclosure for indoor use.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: P3060B1200ACU
• Country of Origin: MEX

Technical Specifications

• Catalog Number: P3060B1200ACU
• Type: PLSERIESASSEMBLEDLOADCENTER
• Brand: Siemens
• Color: BEIGE
• Amperage: 200 Amp
• Material: THERMOPLASTIC
• Enclosure: TYPE1
• Sub Brand: UL
• Bus Rating: COPPERBUS
• Applications: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
• Mounting Type: FLUSH / SURFACE
• Connection Type: Screw
• Interrupt Rating: 22 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 30
• Circuit Breaker Type: 200A
